Overview

This 16x16 HDMI matrix routes 16 Ultra HD sources to 16 Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front panel buttons or the IR Remote Control. The matrix can also be controlled via RS232, IP interface. With smart EDID management, make it compatible with most of the HDMI sources and sink devices.

Features

• Max resolution up to 3840*2160@30Hz
• Each HDMI output can share same input or select standalone input
• Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format
• Smart EDID management, make it compatible with most display devices
• Matrix status could be memorized after power down, automatically restore previous matrix status after next power on

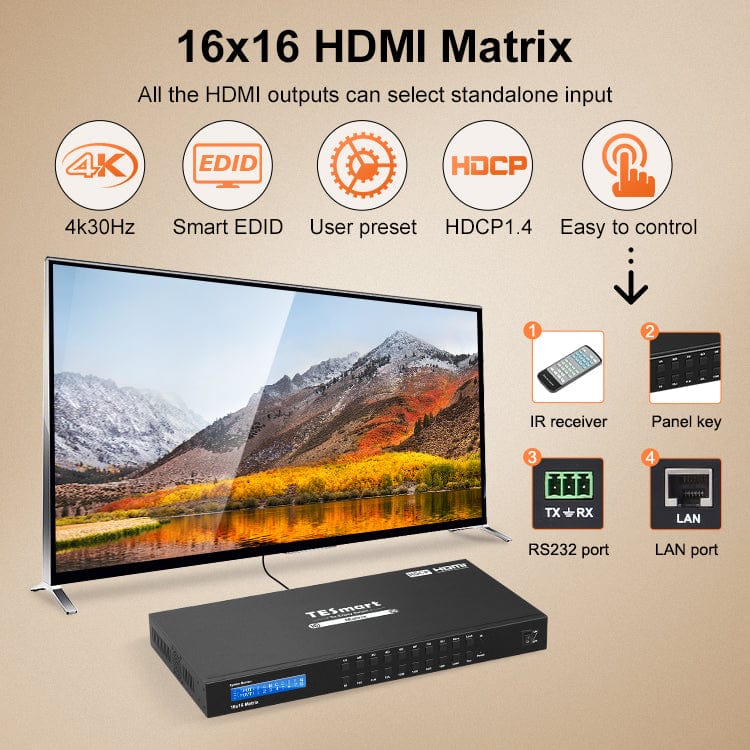

• Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port)
• Easy to view routing status via LCD display

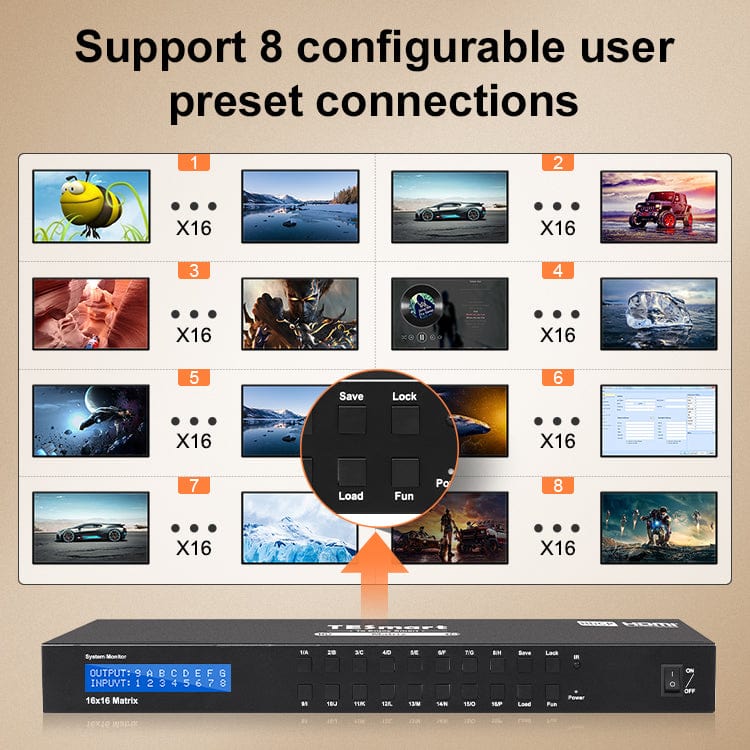

• Supports user preset connections
• Supports DVI-D single link sources and displays with the use of HDMI to DVI adapters

Diagram

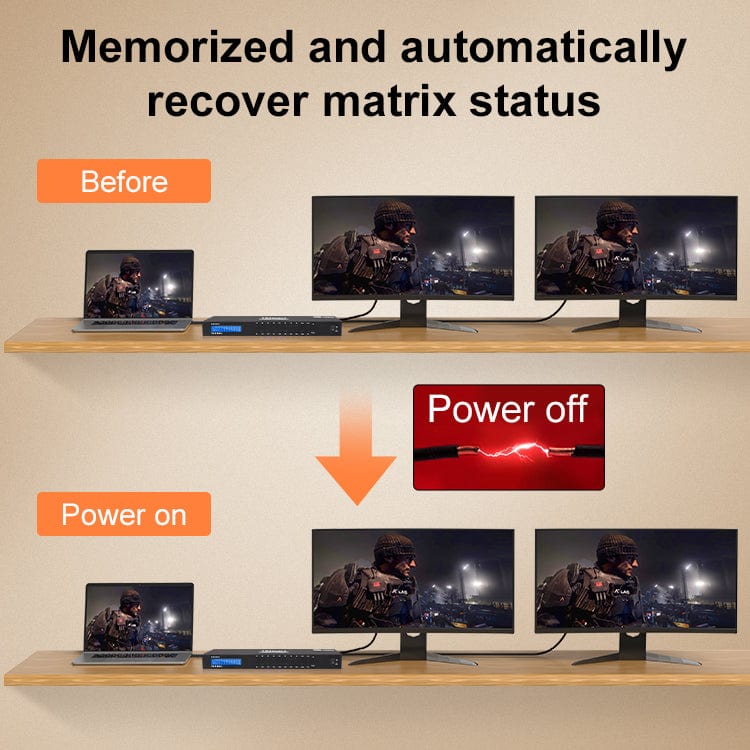

Support power off memorization

Matrix status could be memorized after power down, automatically restore previous matrix status after next power on.

4 Switching methods

This 16 port matrix can be control via 4 Switching methods: front panel buttons, IR remote control and PC (via LAN or RS232 port).

With EDID virtual display

This KVM Switch has EDID emulators in each input port, which helps to keep PCs always having correct display information, prevent display settings from changing while switching input ports.

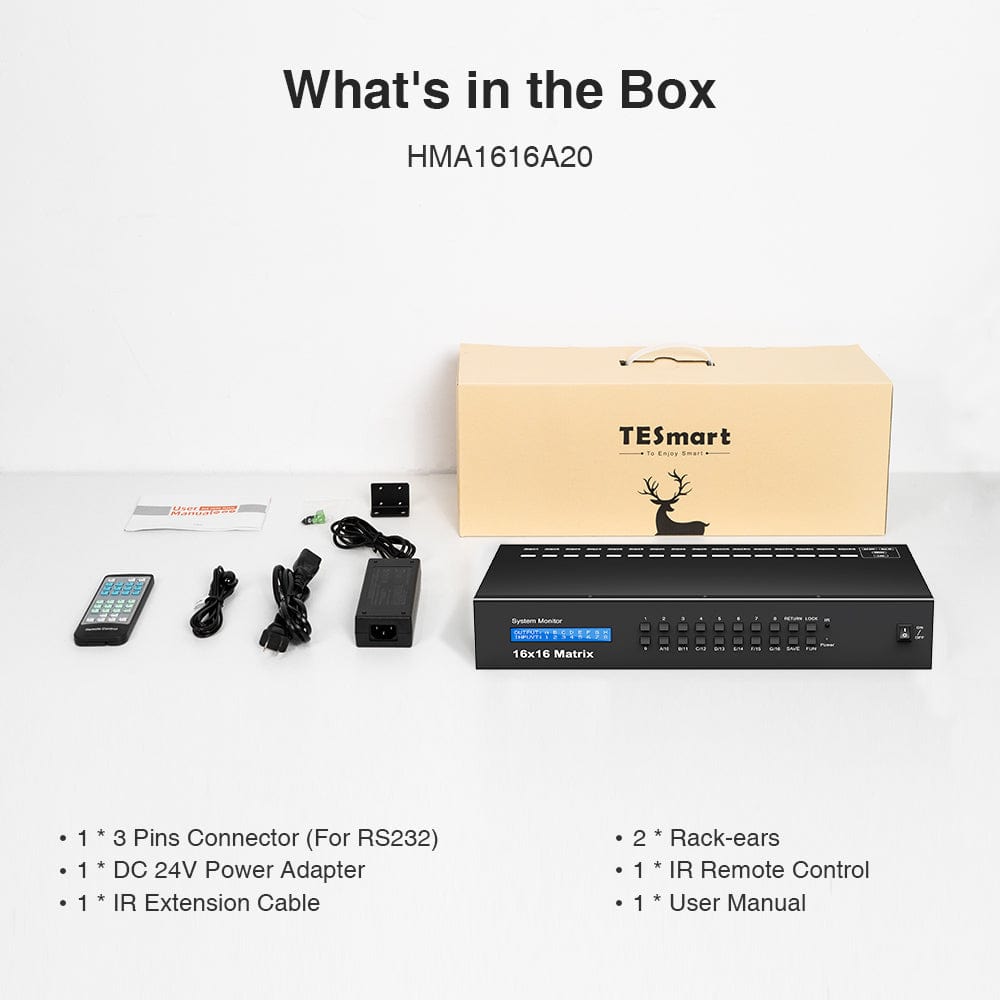

• 1 * 16x16 HDMI Matrix
• 1 * DC 24V 3A Power Adapter
• 1 * IR Remote Control
• 1 * IR Receiver cable
• 2 * Rack-ears
• 1 * User Manual

Q1: Can I do a 1x5 set up with this? For example 5 separate monitors showing 5 different sources or same source viewed over the 5 monitors as on picture?
A: SURE! This HDMI matrix supports up to 16 separate monitors showing 16 different sources or same source viewed over the 16 moniters.

Q2: Can I connect multiple game consoles such as PS5, Xbox series x and nintendo switch to this matrix?
A: Yes, with HMA1616A10 can multiple devices be connected. You can connect up to 16 input sources at the same time.

Q3: In splitter mode (same input to two monitors), what if one monitor is HD (1080p) and the other is UHD (4K)?
A: In this case, both monitors will output 1080p, that is, the resolution of the matrix output is based on the resolution of the display with the lower resolution. If you need splitter, and achieve 4K and 1080p output at the same time, you can choose our splitter products.

Q4: Which logitech wireless keyboards & mouse are supported (IE the logitech unifying software)?
A: Sorry, This is a matrix, it does not support keyboard or mouse. You need to connect keyboard and mouse to your computer. I guess what you need is a KVM switch.

Q5: When switching screen B to match screen A, would screen A go blank to resync?
A: Screen A will not be affected. The characteristic of our matrix is that you can choose the signal source of each screen at will. If you select the same input source for screen B and screen A, the two screens will show the same picture.

Q6: What kind of battery does this take for the remote?
A: It requires the battery model of CR2025. （Because in the international logistics transport, products with batteries cannot be transported for safety reasons. Sorry for the inconvenience.)

Q7: How does volume control work with a receiver, this device, and 3 TV's?
A: Volume control is either on the target TV or the source device.

• Product Manual
