2 Port Dual Monitor KVM Switch Kit HDMI+DP 4K60Hz with USB 3.0 Docking Station, EDID

KEY FEATURES

• Efficient Management: Utilize one keyboard, mouse, and dual 4K60Hz displays to manage two PCs with ease.
• Dual-Monitor Functionality: Connect each PC to the KVM switch using one HDMI input and one DP output.

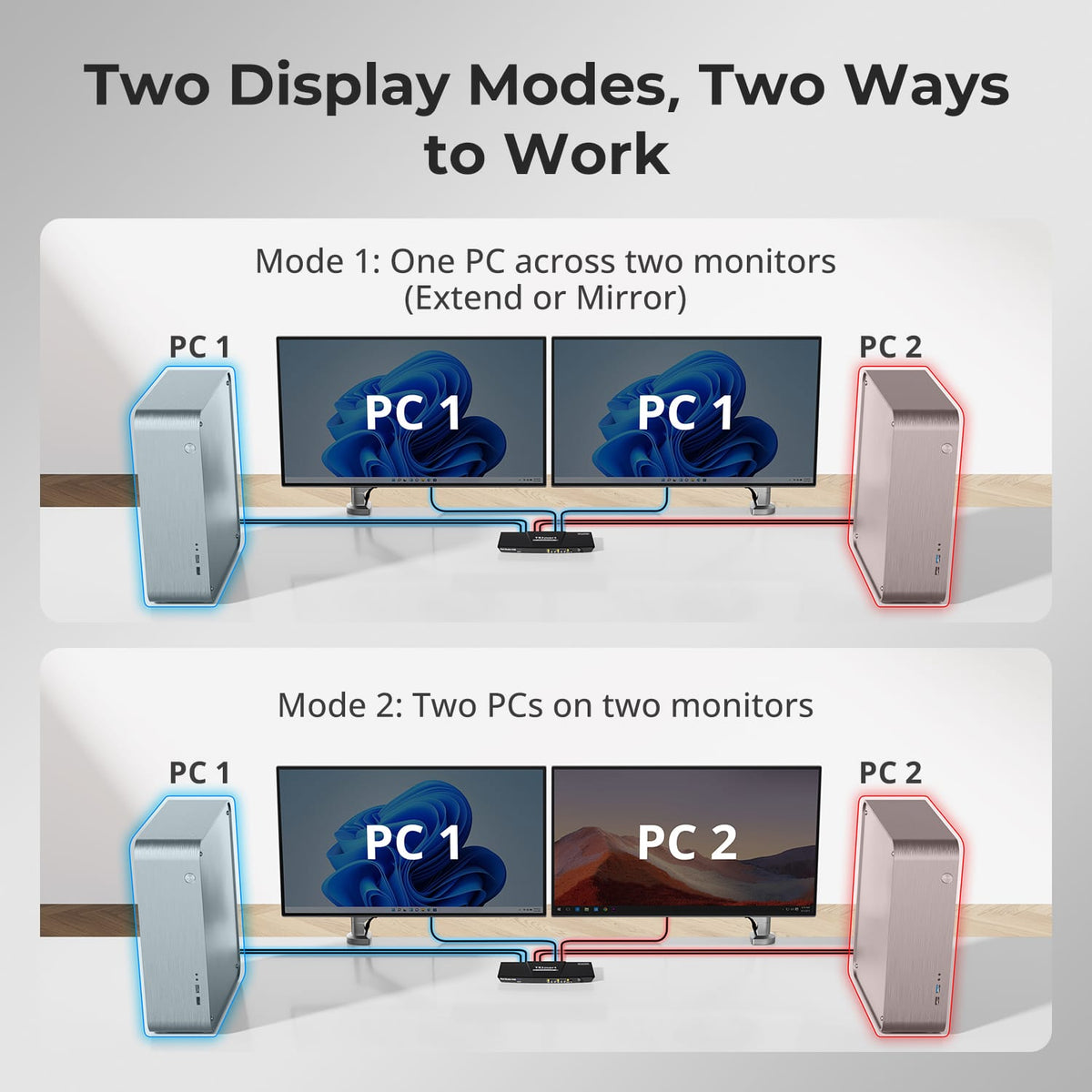

• Two Operating Modes: Choose from extended desktop mode or split desktop mode (each computer displays on 1 monitor simultaneously).

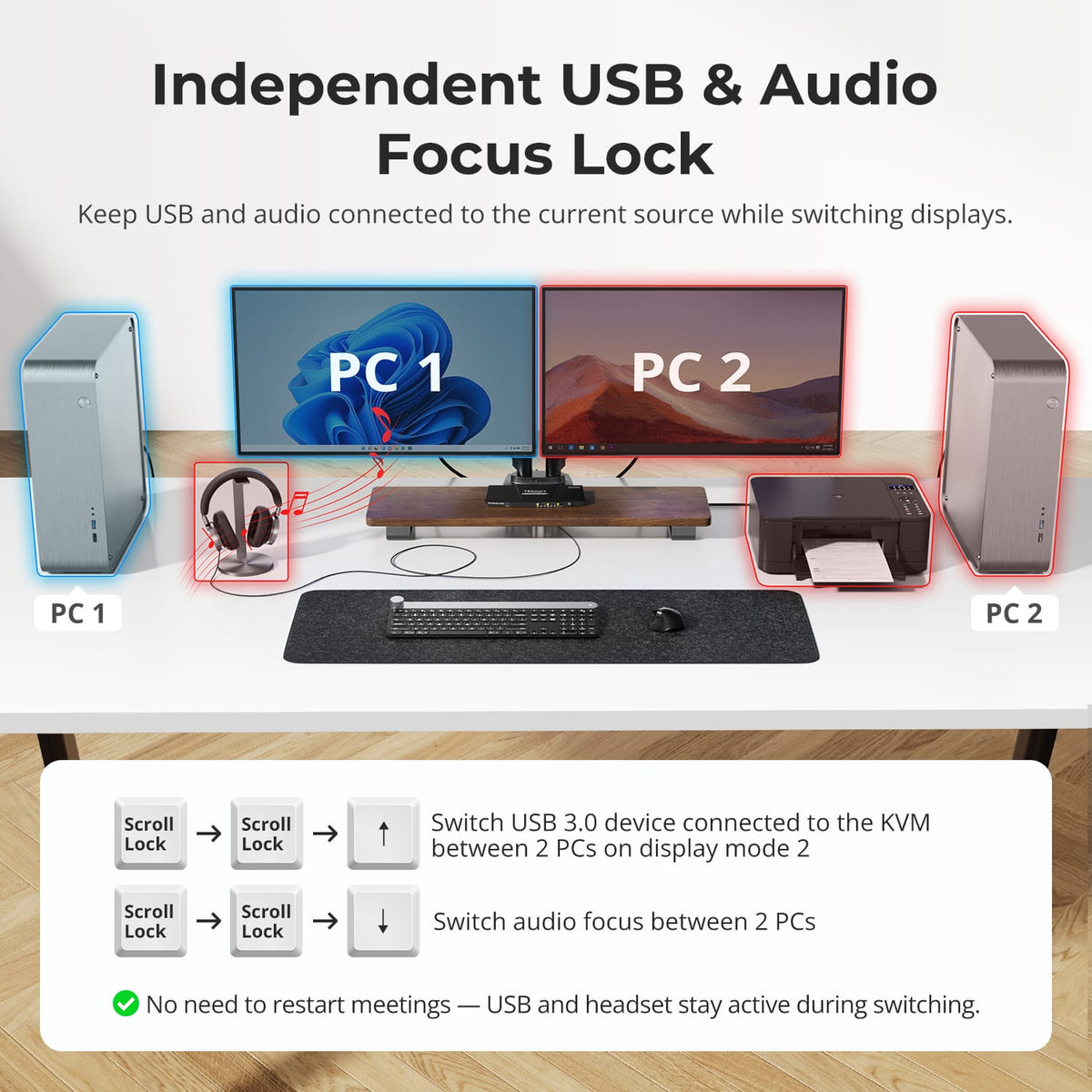

• USB 3.0 Sharing: Two USB 3.0 ports with one offering charging capabilities. Share printers, jump drives, USB headsets, and webcams for teleconferencing.
• Integrated Microphone and L/R Audio Output: Add diversity to your audio experiences.
• Keyboard & Mouse Compatibility: Works with a variety of keyboard types: wired, wireless, mechanical, and gaming.
• Easy Setup: Plug & play with no drivers required.
• Cross-Platform Compatibility: Suitable for Windows, Mac, and Linux. Ideal for home, office, or education environments.
• OTHER FEATURESMultiple Ways to Switch Inputs: Use keyboard hotkeys, front push buttons, or remote control.
• Assignable Hotkey Triggers: From Scroll Lock to Right-CTRL.
• Audio Transmission: Transmit audio over HDMI to monitors or external speakers via the KVM's stereo output.
• TECHNICAL SPECIFICATIONSHDMI 2.0: Supports 3840x2160(4K)@60hz, 3440x1440@100Hz, 2560x1440@120Hz, QHD@120hz, FHD@120hz.
• HDCP 2.2 Compliant

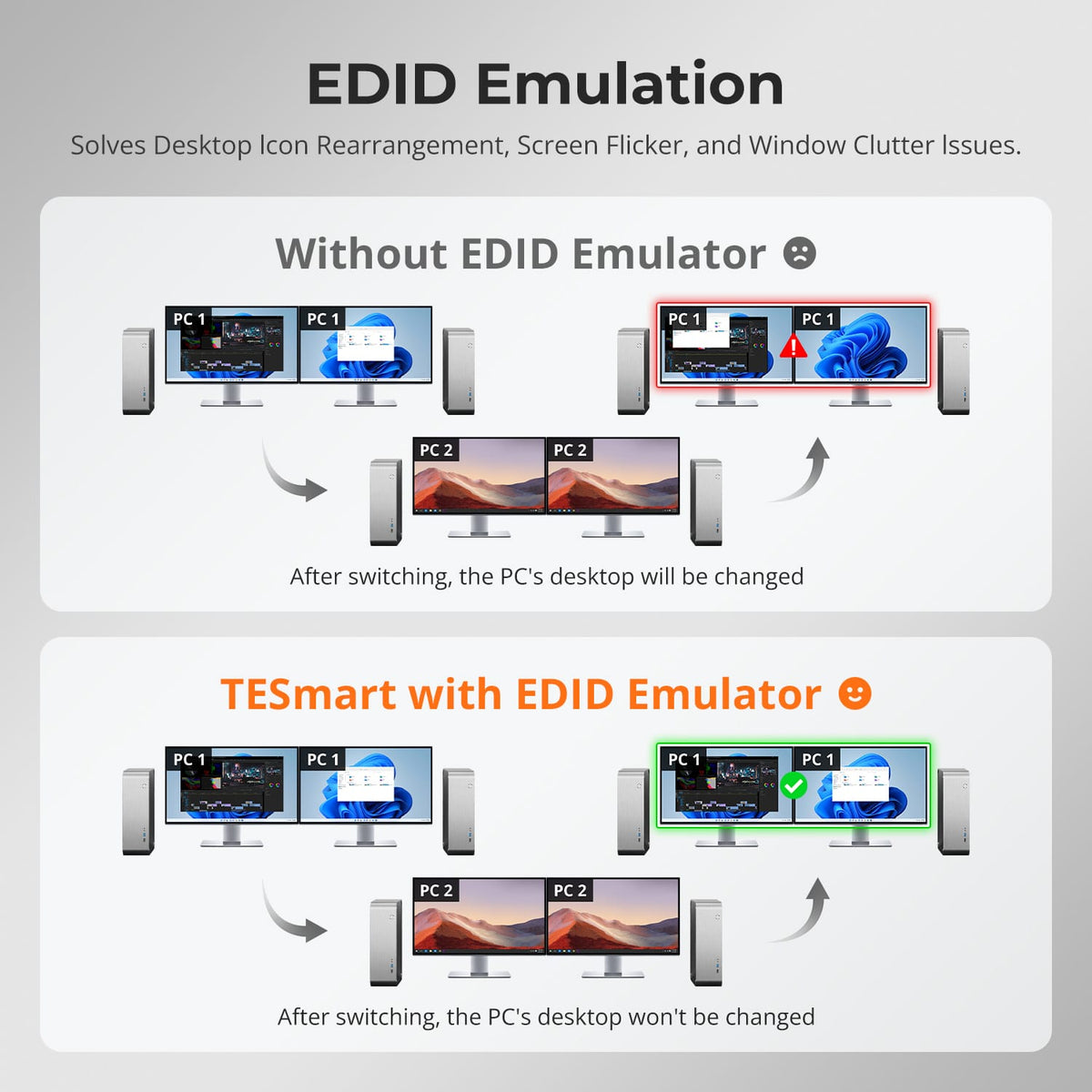

• Never worry about display issues again. Our KVM Switch with EDID emulation ensures that your computers always receive the correct display information, providing a seamless and worry-free experience. Specifically, model HDK202-P23 supports EDID emulation only in mode 1.
• No Delay, Zero Latency Keyboard, and Mouse SwitchingIR Remote Control: (Battery not included). Requires 2 AAA batteries.
• Upgrade your productivity and efficiency today. Perfectly suited for your home, office, or educational needs.

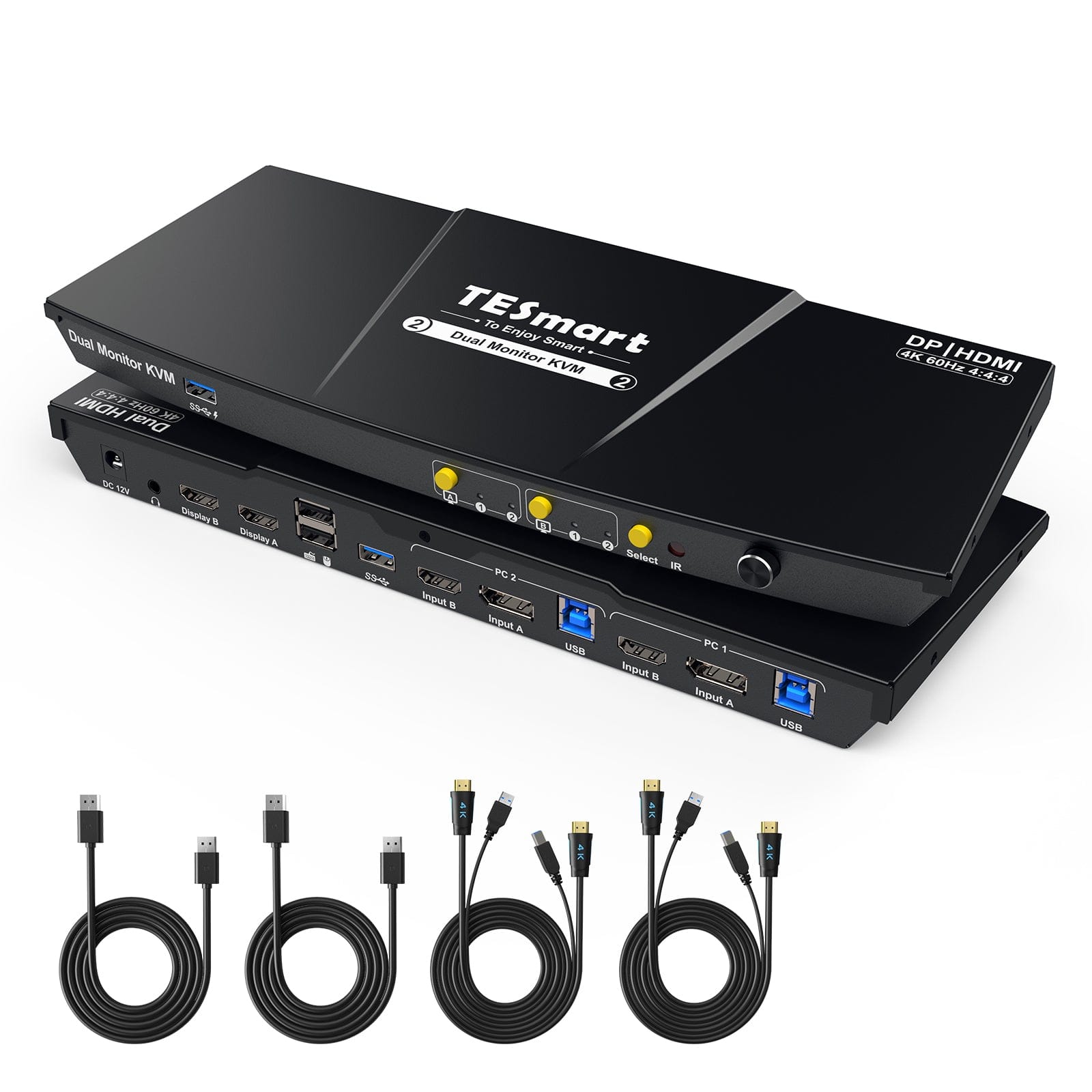

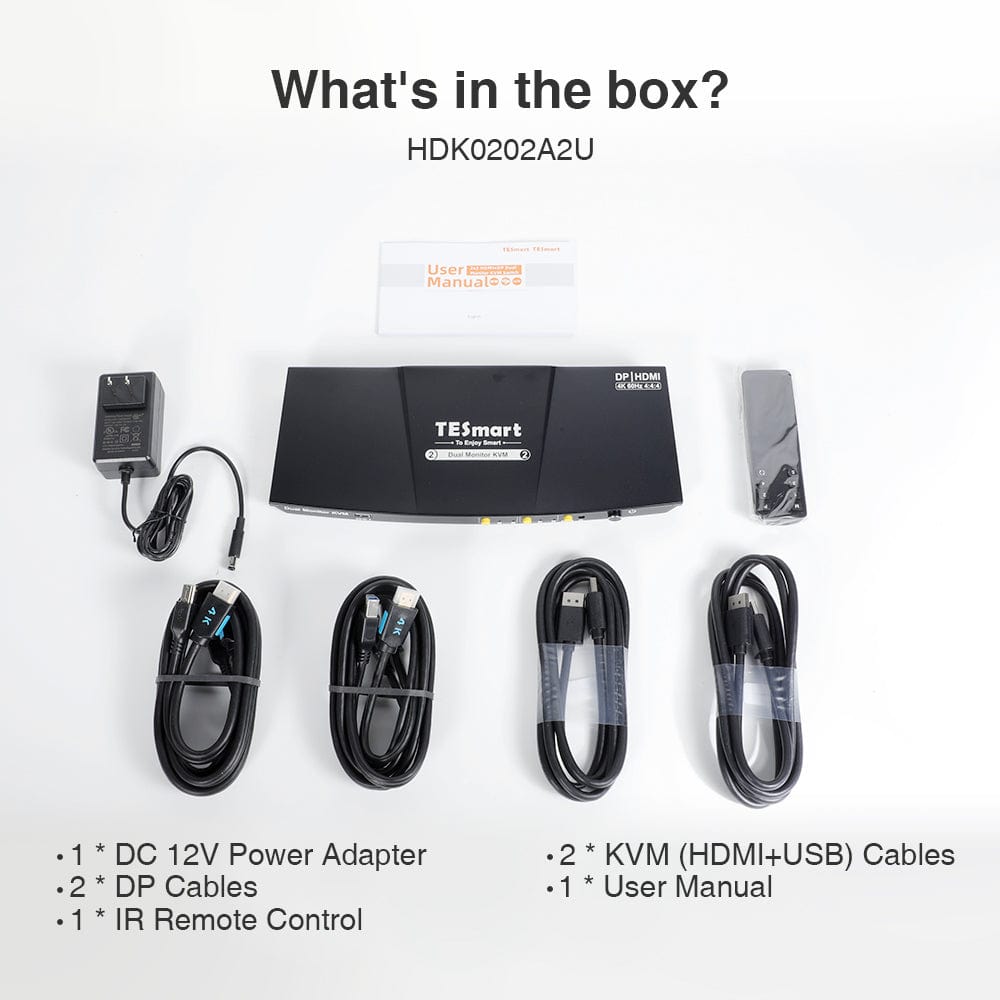

PACKING LIST

EACH PC MUST MAKE 2 VIDEO CONNECTIONS (HDMI+DP) TO KVM FOR DUAL MONITORS

• 1 * 2x2 HDMI+DP Dual Monitor KVM Switch
• 1 * DC 12V Power Adapter
• 2 * DP Cables
• 2 * KVM (HDMI+USB) Cables
• 1 * IR Remote Control
• 1 * User Manual

SHIPPING

We provide Free Express (UPS/USPS/DHL ) for US shipping orders.

1 YEAR WARRANTY, EXTENDED TO 3 YEARS

TESmart KVM switch comes with a 1-year warranty from the date of purchase. We offer a registration extension warranty program, register to extend the warranty to 3 years.The warranty covers any defects in materials or workmanship under normal use. We reserve the right to replace any defective product under warranty (No Repairs, Only Exchanges).

FAQ

• Support charging the devices like mobile phones and tablets connected to front panel USB-A port.
• The switch must receive video signals on HDMI+DP inputs per PC for dual monitor output.
• The audio integration port (the L/R and MIC) is transmitted via the USB connection. The USB A/B cable is required for audio.
• Hotkeys are triggered via a keyboard plugged into the dedicated mouse or keyboard ports.
• Emulation programming is locked and cannot be removed from mouse & keyboard ports.
• Dedicated mouse & keyboard ports should not be used for other types of USB devices.
• Use a powered USB hub to expand the number of USB 3.0 ports.
• If the wireless mouse/keyboard is “jumpy”, use a USB extender to reduce the distance from the receiver.
• Please install 2 AAA batteries before using the remote control (battery not included).

COMPATIBILITY INFORMATION

• Dedicated mouse & keyboard ports have emulation programming. Second-generation chipsets have “Passthrough Mode” to send special characters such as multimedia keys (play, pause, volume up/down, etc), which greatly improves keyboard compatibility.
• Keyboard software such as Logitech Options, DAS Q, Corsair iCUE, etc conflicts with the emulation programming and limits the ability to use dedicated macro keys. We recommend using the KVM’s USB 3.0 port as a workaround if this software is desired. The USB 3.0 port does not have emulation programming and therefore the KVM will not recognize hotkey switching commands. Please use a powered USB hub to expand USB connectivity, if needed.
