Triple Monitor MST KVM Docking Station Kit - 4K60Hz, EDID for 1 Laptop & 3 PCs

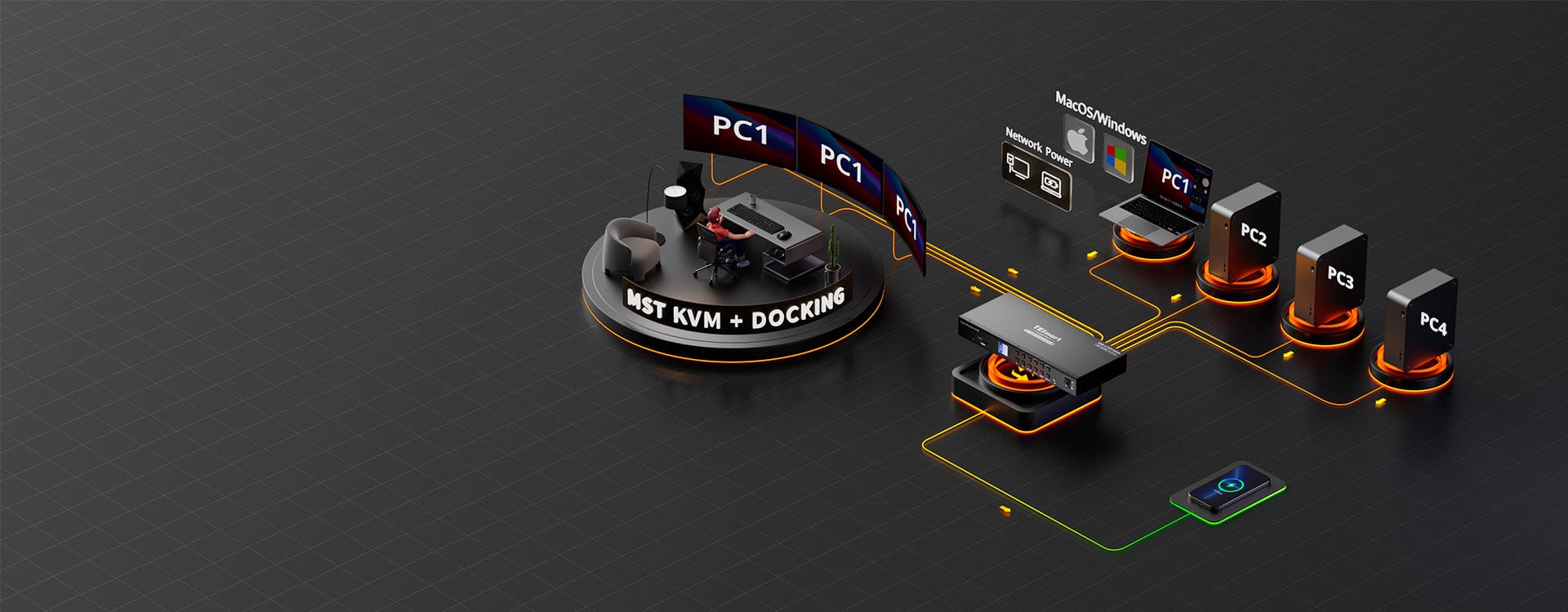

• Upgraded Triple Display Design: Evolving from the HKS403-P, Compatible with up to 3 monitors and 4 PCs (3 desktops + 1 laptop).

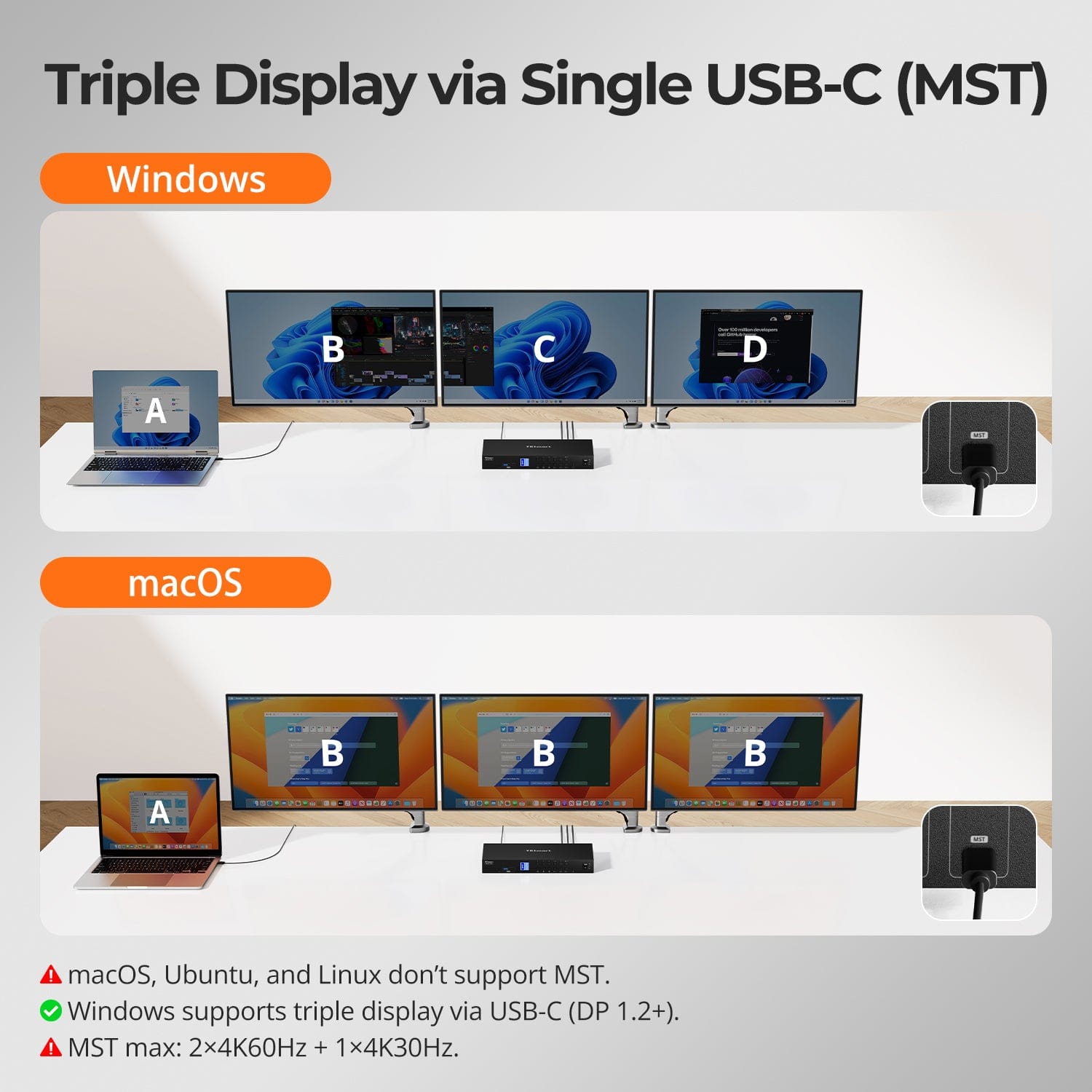

• Support MST(Multi-Stream Transport) mode allowing triple HDMI displays from a single USB-C source or a single DP source. Achieve triple monitor output seamlessly, no docking station is needed for Inputs 1/2. Important Note: The USB-C input currently does not support the three extended monitors for Mac Mini and Mac Studio models.

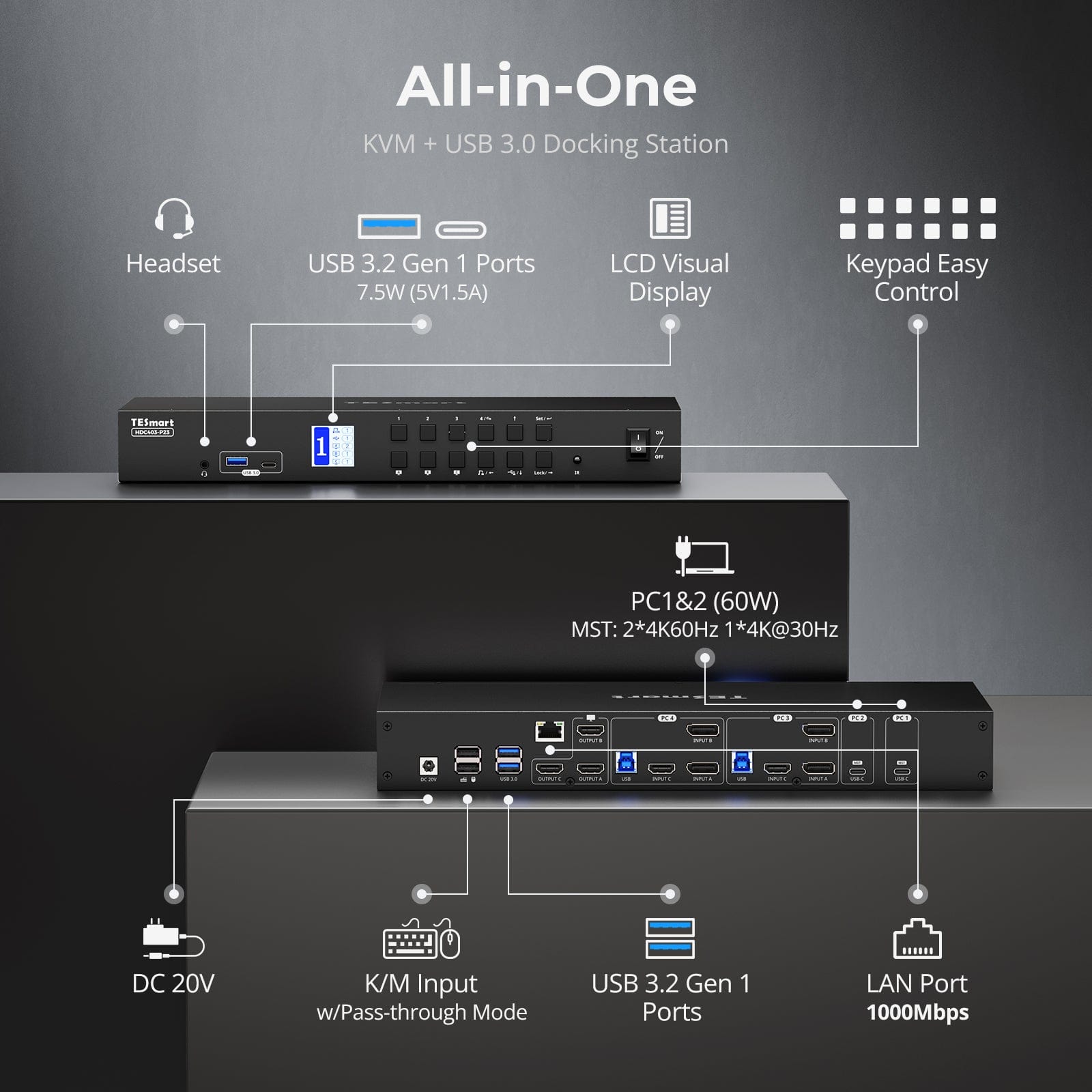

• All-in-One Versatile Peripheral Ports: Explore 4x USB 3.0, 2x USB for K&M, 1x LAN, 1x 3.5mm headphone/microphone jack, and 3 HDMI outputs.
• High-Resolution + High Refresh Rate: HDMI 2.0 compatible, supporting up to 4K@60Hz 4:4:4 and catering to high refresh rate enthusiasts.

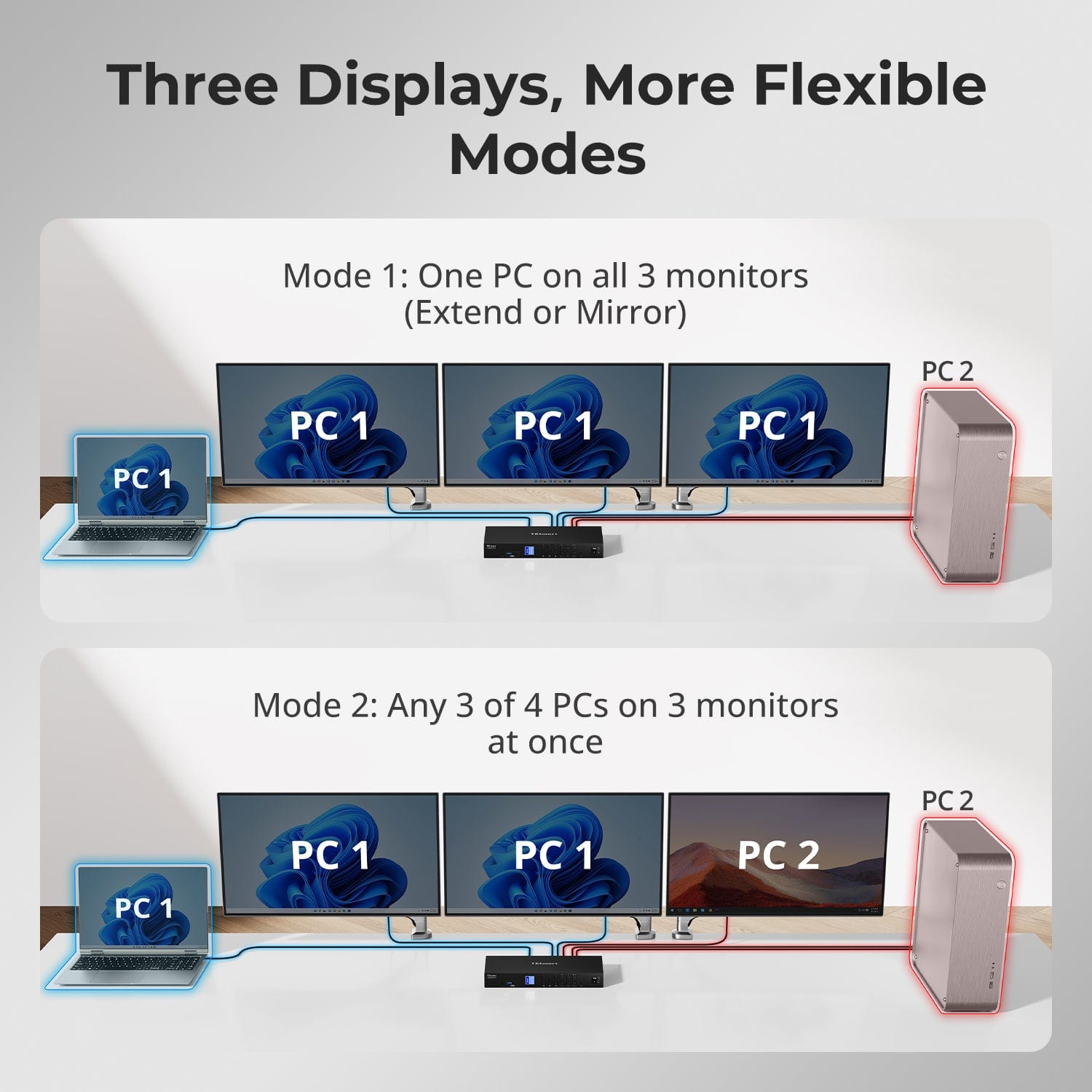

• Support 2 display modes. Implement a 2-screen extended display or duplicate display or display different PCs on 2 monitors.
• EDID Emulation: With EDID emulators in each input port, it can keep PCs always having correct display information to prevent resolution and icon rearrangement.

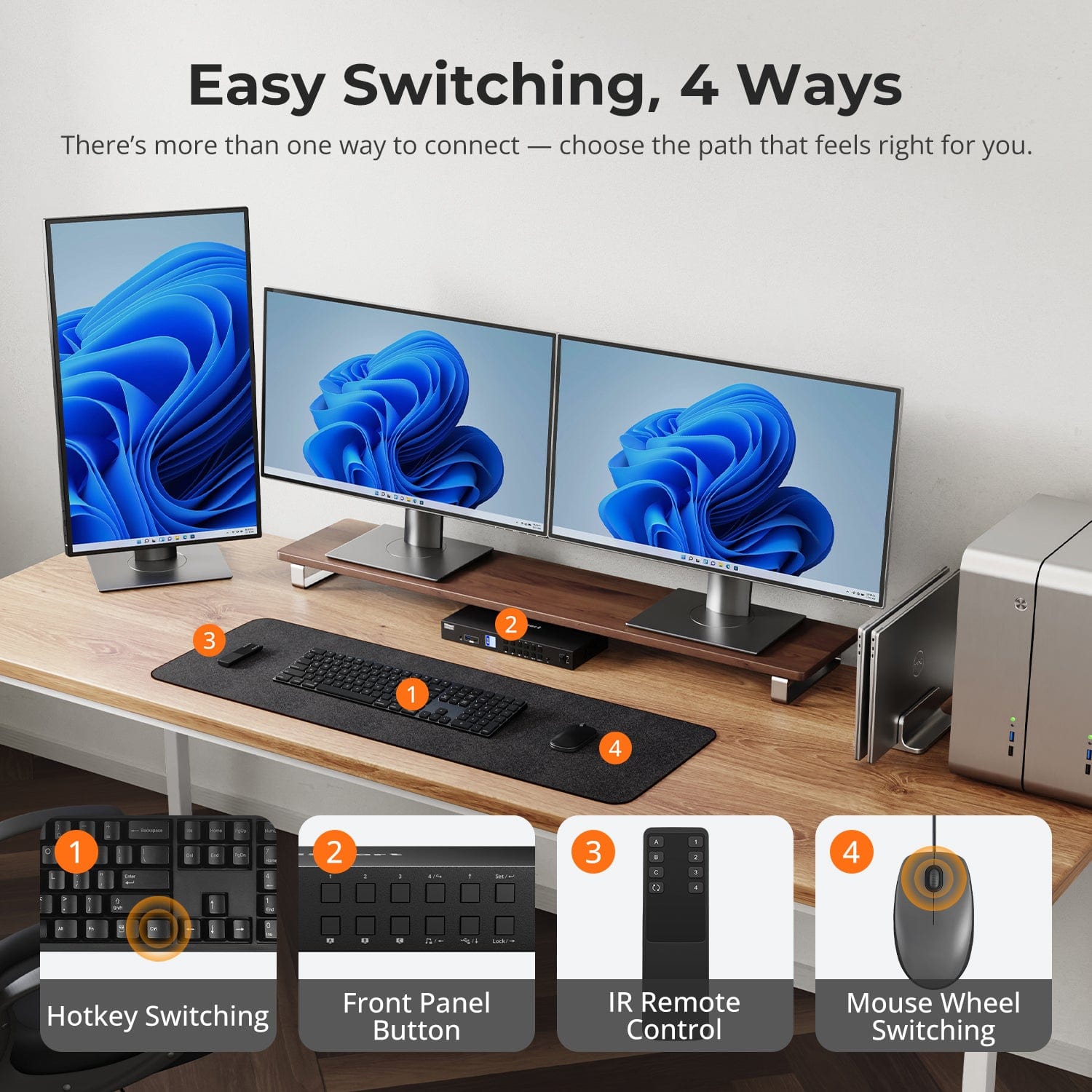

• Effortless Switching: Use hotkeys, the front panel button, or the remote control for seamless K&M operation.
• K&M Pass-Through: Ensures adaptability with various keyboards, including wired, wireless, mechanical, and gaming keyboards.

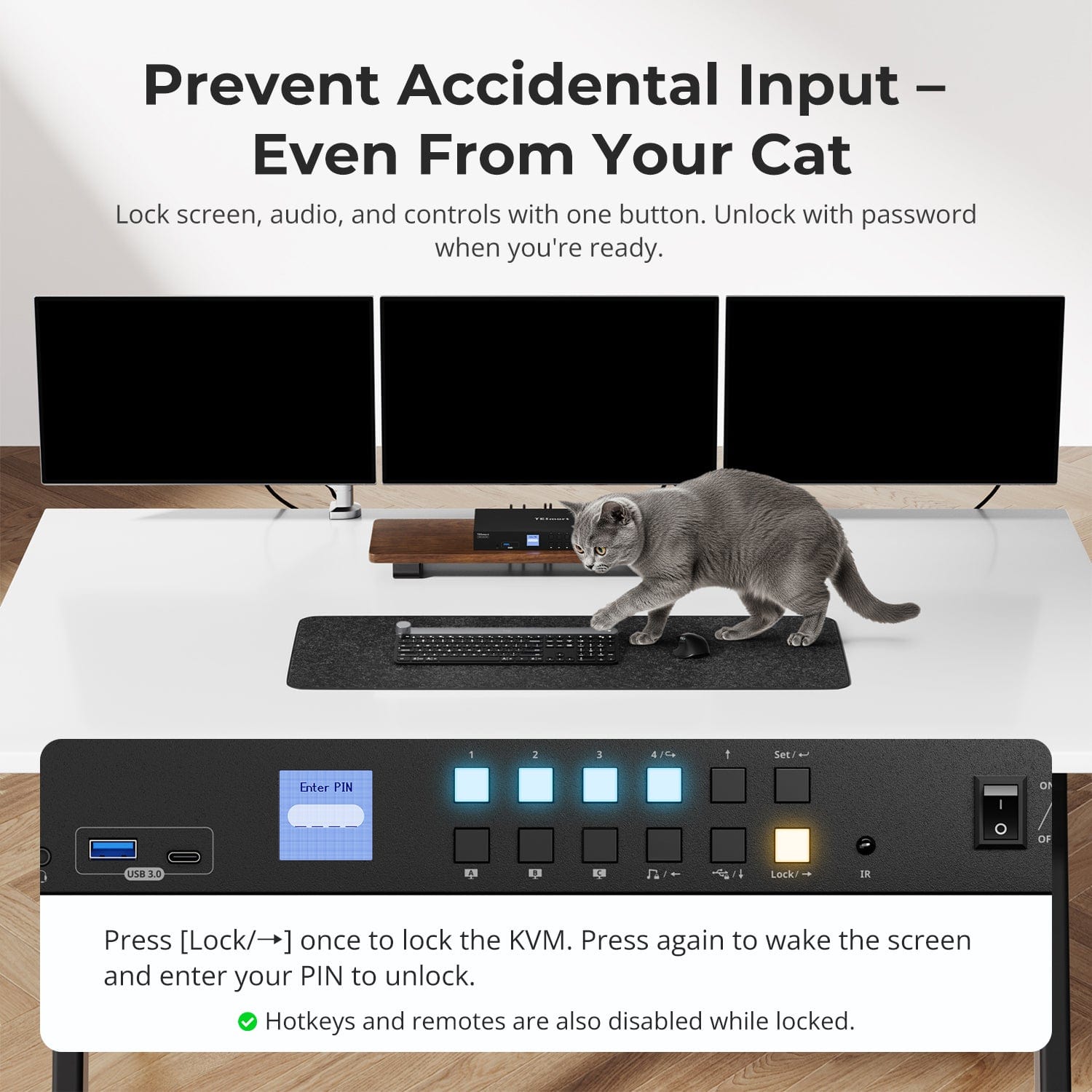

• One-Touch Locking KVM: Protect private information with audio output pause and LCD screen brightness reduction.
• LCD Visual Display: For easy setup, equipped with 4 lockable USB 3.0 channels and 1 integrated microphone and L/R audio output.
• Removable rack ears Design: Convenient rack installation for seamless integration.
• Support wired network connection, 4 PCs connected to KVM can access the network with only one network cable.
• Support charging the devices connected to the corresponding group.
• Support connecting mobile devices to the front panel USB port to charge.
• Easy plug-and-play setup with no drivers required.
• Support Unix/Windows/ Debian/ Ubuntu/Fedora/ MacOS X/ Raspbian/ Ubuntu for Raspberry Pi and other Linux-based systems ideal for home, office, or education scenarios.
• Advanced KVM Switch Kit: The KVM switch kit comes with complete KVM-to-PCs cables for a complete setup (1 * DisplayPort Cable, 1 * USB-C Cable, 6 * HDMI Cables, 3 * USB 3.0 Type-A to Type-B Cables). We ensure that all 4 of your computers are connected to the KVM. Typically, monitors come with their own cables. If you need additional cables, we also have high-quality cables for you to choose from.

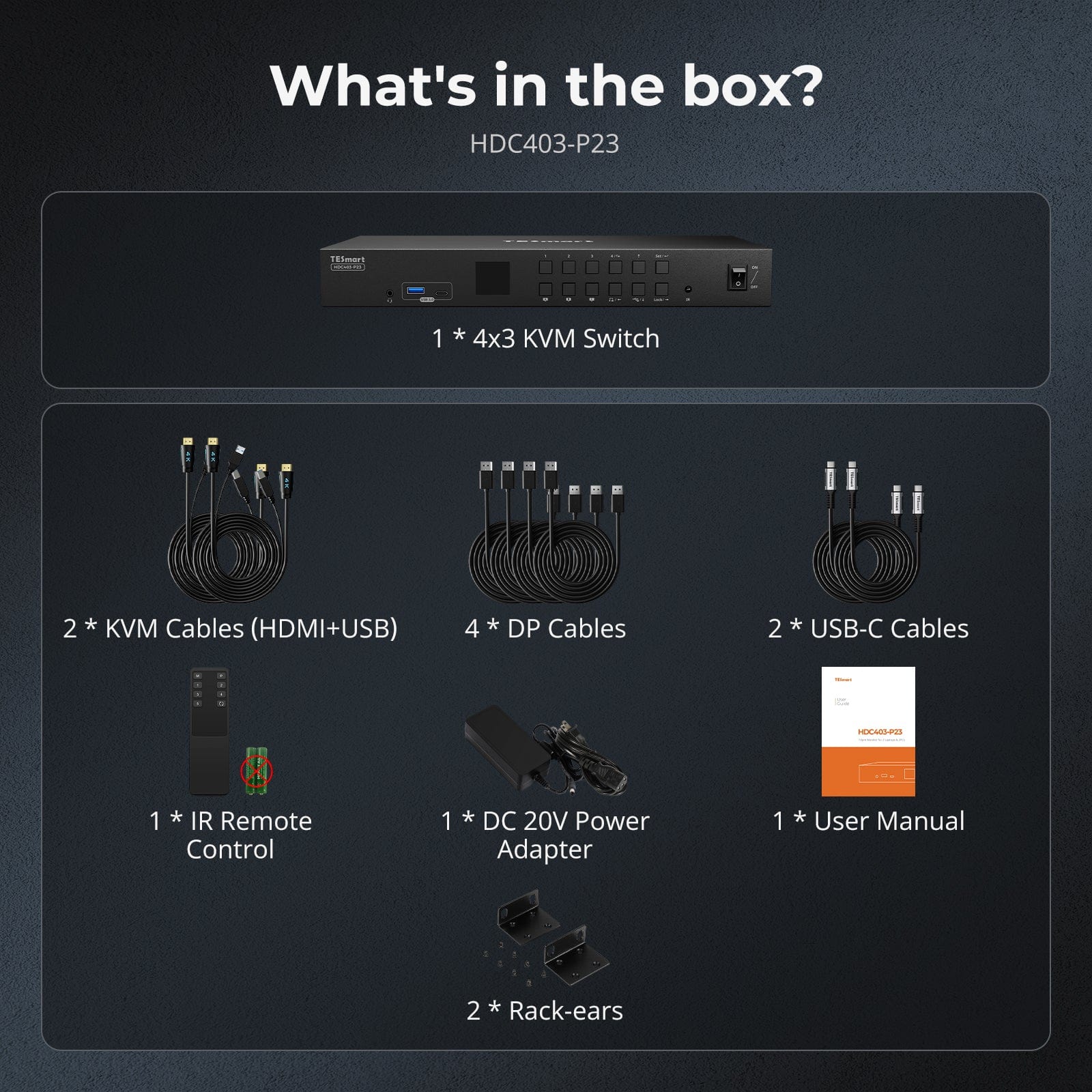

PACKING LIST

THE KVM SWITCH KIT COMES WITH COMPLETE KVM-TO-PCS CABLES FOR A COMPLETE SETUP. WE ENSURE THAT ALL 4 OF YOUR COMPUTERS ARE CONNECTED TO THE KVM.

• 1 * 4x3 KVM Switch
• 2 * KVM Cables
• 4 * HDMI Cables
• 1 * DisplayPort Cable
• 1 * USB-C Cable
• 1 * USB 3.0 Type-A to Type-B Cable
• 1 * IR Remote Control
• 1 * DC 20V Power Adapter
• 1 * User Manual
• 2 * Rack-ears

SHIPPING

• We provide Free Express (UPS/USPS/DHL ) for US shipping orders.

1 YEAR WARRANTY, EXTENDED TO 3 YEARS

• TESmart KVM switch comes with a 1-year warranty from the date of purchase. We offer a registration extension warranty program, register to extend the warranty to 3 years.
• The warranty covers any defects in materials or workmanship under normal use. We reserve the right to replace any defective product under warranty (No Repairs, Only Exchanges).

FAQs

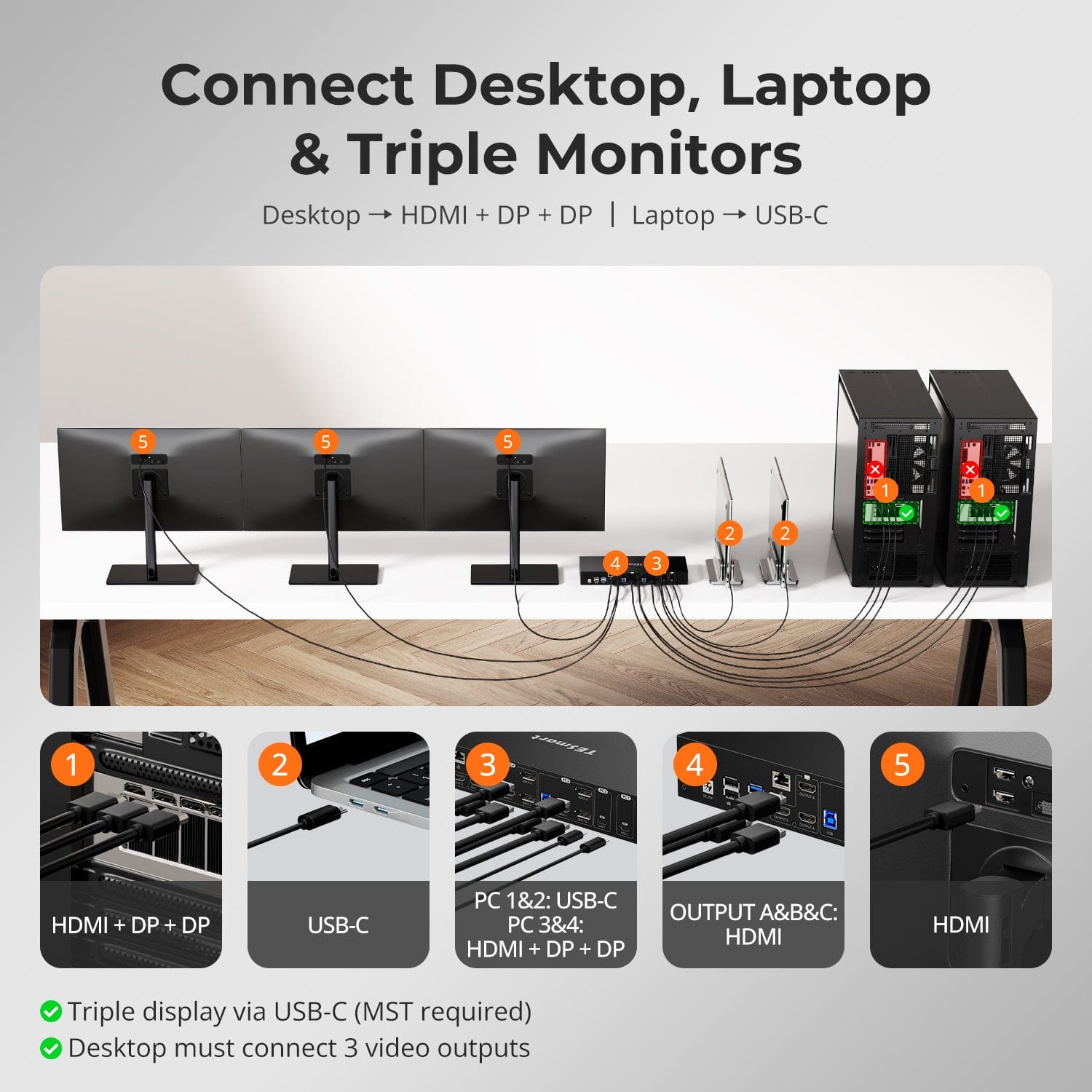

• If your PCs are running Windows OS: Connect 2 PCs to the Input ports marked ‘A' of each input group of the KVM with 2 USB-C cables to enable the MST mode. Connect 2 PCs to the Input ‘A'&‘B' or only Input ports marked ‘B' of each input group to disable the MST mode.
• If your PCs are running MacOS: Connect 2 PCs to the Input ‘A'&‘B' ports of each input group of the KVM with 4 USB-C cables.
• Hotkeys are triggered via a keyboard plugged into the dedicated mouse or keyboard ports.
• Emulation programming is locked and cannot be removed from mouse & keyboard ports.
• Dedicated mouse & keyboard ports should not be used for other types of USB devices.
• Use a powered USB hub to expand the number of USB 3.0 ports.
• If the wireless mouse/keyboard is “jumpy”, use a USB extender to reduce the distance from the receiver.
• Please install 2 AAA batteries before using the remote control (battery not included).

COMPATIBILITY INFORMATION

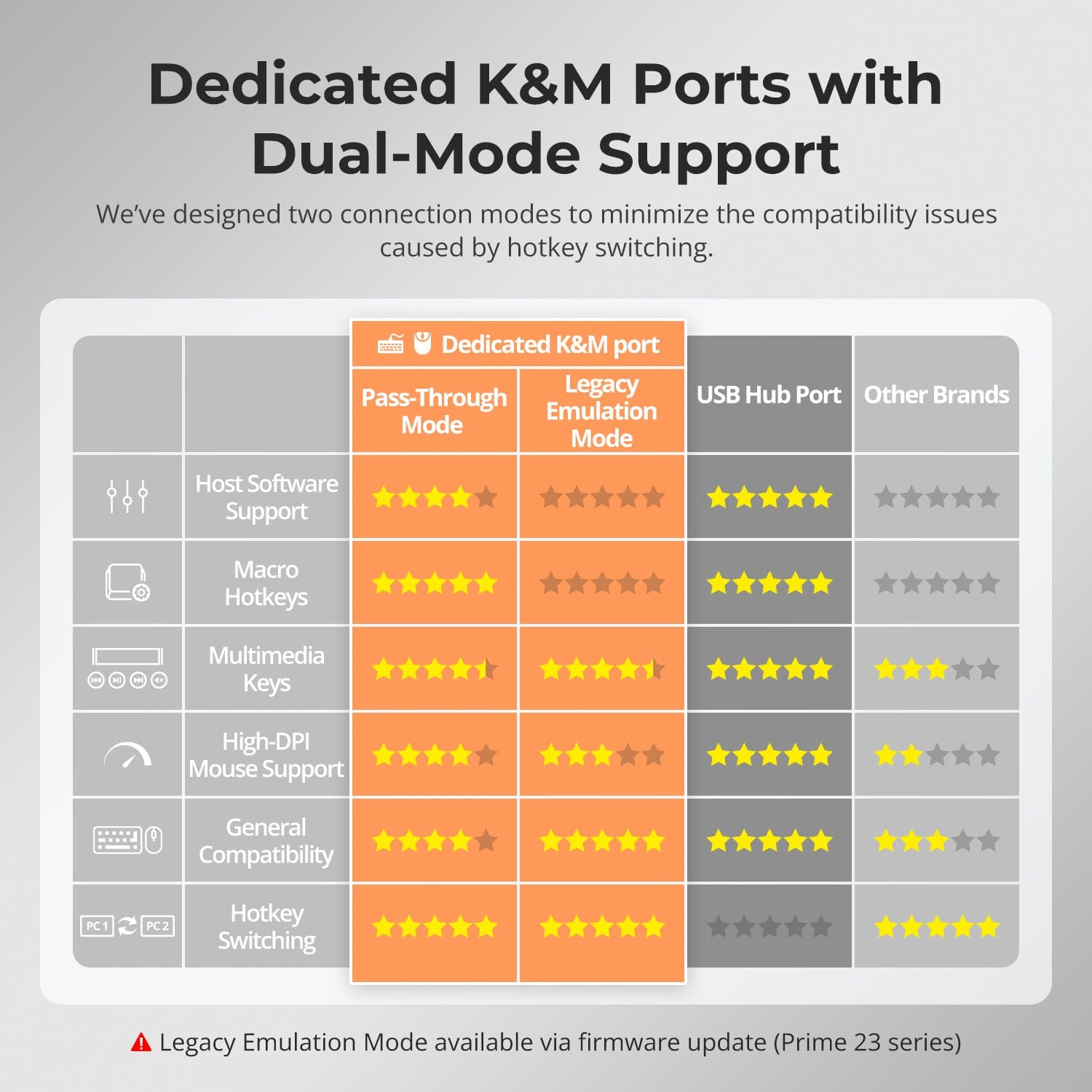

• Dedicated mouse & keyboard ports have emulation programming. Second-generation chipsets have “Passthrough Mode” to send special characters such as multimedia keys (play, pause, volume up/down, etc), which greatly improves keyboard compatibility.
• Keyboard software such as Logitech Options, DAS Q, Corsair iCUE, etc conflicts with the emulation programming and limits the ability to use dedicated macro keys. We recommend using the KVM’s USB 3.0 port as a workaround if this software is desired. The USB 3.0 port does not have emulation programming and therefore the KVM will not recognize hotkey switching commands. Please use a powered USB hub to expand USB connectivity, if needed.
