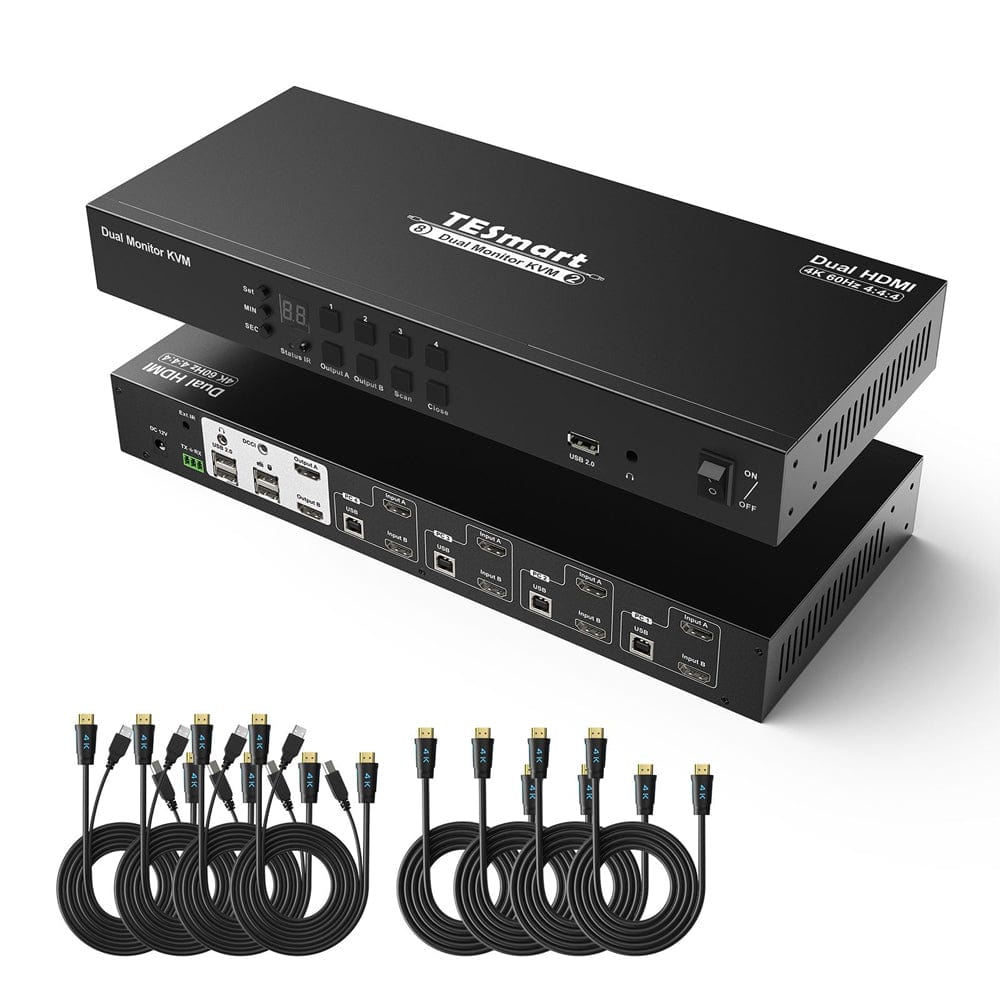

HKS402-L23-USBK

4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID

(Previously named HKS0802A1U-SE）

$229.49
$269.99
$229.49
Shipping calculated at checkout.
Plug Type
    About this item:
    • The KVM switch kit comes with four complete KVM-to-PC cables, each including one USB cable and two HDMI cables.
    • Using only 1 set of keyboard, mouse, and 2 monitors to control 4 computers, support keyboard and mouse seamless switching and pass-through mode.
    • High resolution up to 3840*2160@30Hz 4:4:4 on each monitor, HDMI 1.4 and HDCP 1.4 compliant.
    • Two unique display modes allow for the simultaneous switching of both monitors and also individual display from each computer.
    • With EDID emulators in each input port, keep PCs always having correct information.
    • By connecting two KVM switches HKS0802A1U in parallel using the supplied DCCI cable, you get a 4 PC to 4 monitor KVM switch solution.
    • Control your KVM switch with ease using multiple switching methods, including the front panel button, keyboard hotkeys, IR remote control, and RS232.
    4-PC Dual Monitor KVM Models Comparison:
    Model Edition Interface Resolution USB Hub Audio
    HKS402-P23 Prime HDMI+HDMI 4K@60Hz USB 3.0 Hub Audio I/O
    DKS402-P23 Prime DP+DP 8K@30Hz USB 3.0 Hub Audio I/O
    HKS402-L23 Lite HDMI+HDMI 4K@30Hz USB 2.0 Hub Audio Out
    HKS402-E23 Elite HDMI+HDMI 4K@60Hz USB 2.0 Hub Audio Out
    DKS402-E23 Elite DP+DP 4K@60Hz USB 2.0 Hub Audio Out

    TESmart HKS402-L23-USBK Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 10659135228291 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE US Plug
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE
    TESmart Dual Monitor KVM Switcher 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID 4 Port Dual Monitor KVM Switch Kit HDMI 4K30Hz with EDID HKS0802A1U-SE

    • Free US Shipping

      Fast delivery from the local warehouse

    • Hassle-Free Return

      30 Days Money Back Guarantee

    • Secure Payment

      No Payment information will be stored

    • Lifetime Tech-Support

      Official Professional Customer Service

    KEY FEATURES

    KEY FEATURES

    • Efficiently manage 4 PCs with a set of keyboard, mouse, and dual 4K30Hz displays.
    • By connecting two KVM switches HKS0802A1U(-SE) in parallel using the supplied DCCI cable, you get a 4 PC to 4 monitor KVM switch solution.
    • 2 Operating Modes: Mode 1 for extended desktop and Mode 2 for split desktop (each computer displays on 1 monitor simultaneously).
    • 4 ways to switch inputs: keyboard hotkeys, front push buttons, remote control, or RS232 control.
    • K&M pass-through for compatibility with various keyboard types: wired, wireless, mechanical, and gaming.
    • Easy plug & play setup with no drivers required.
    • Compatible with Windows, Mac, and Linux, ideal for home, office, or education scenarios.
    • The KVM switch comes with 4 x 1.5m HDMI/USB combo cables and 4 x 1.5m HDMI cables. We ensure that all 4 of your computers are connected to the KVM. Typically, monitors come with their own cables. If you need additional cables, we also have high-quality cables for you to choose from.
    • Note 1: the difference between HKS0802A1U(-SE) and PKS0802A10 is only the port, that is, all ports of HKS0802A1U(-SE) are HDMI, and all ports of PKS0802A10 are DP.
    • Note 2: due to technological reasons, all switching functions for dual monitors can only work if both graphics cables are connected to each computer.

    OTHER FEATURES

    • Assignable hotkey triggers from Scroll Lock to Right-CTRL.
    • USB sharing for printers, jump drives, USB headsets, and webcams for teleconferencing.
    • Supports automatic switching to monitor computers at a specified time interval.
    • Transmits audio over HDMI to monitors or external speakers via KVM's stereo output.

    TECHNICAL SPECIFICATIONS

    • HDMI 1.4 supports 3840x2160(4K)@30hz, 3440x1440@60Hz, 2560x1440@75Hz, QHD@75hz, FHD@144hz.
    • With high-quality cables, this KVM switch also supports QHD 2560*1440@75Hz per monitor. This requires HDMI out on the computer and HDMI 1.4 in the monitor, which many QHD monitors do not have. To do this, test 2560x1440 with the frequency directly (without a switch) from the HDMI out of the computer to the HDMI of the monitor.
    • With HDCP 1.4 support, you can not only connect PCs and laptops(possibly via docking stations) but also game consoles, etc.
    • EDID emulation to prevent resolution and icon rearrangement.
    • HDR10 and Dolby Vision support.
    • No delay, zero latency keyboard, and mouse switching.
    • On/off switch on the front.
    • All connections are at the back.
    • IR remote control (battery not included). Requires 2 AAA batteries.
    BEFORE YOU BUY

    PACKING LIST

    EACH PC MUST MAKE 2 VIDEO CONNECTIONS (HDMI+HDMI) TO KVM FOR DUAL MONITORS

    • 1 * 4x2 Dual Monitor HDMI KVM Switch
    • 4 * KVM (HDMI+USB) Cables
    • 4 * HDMI Cables
    • 1 * IR Receiver Cable
    • 1 * AUX Cable
    • 1 * DC 12V Power Adapter
    • 1 * 3 Pins Connector (For RS232)
    • 1 * IR Remote Control
    • 2 * Rack-ears
    • 1 * User Manual

    SHIPPING

    • We provide Free Express (UPS/USPS/DHL ) for US shipping orders.

    1 YEAR WARRANTY, EXTENDED TO 3 YEARS

    • TESmart KVM switch comes with a 1-year warranty from the date of purchase. We offer a registration extension warranty program, register to extend the warranty to 3 years.
    • The warranty covers any defects in materials or workmanship under normal use. We reserve the right to replace any defective product under warranty (No Repairs, Only Exchanges).
    SUPPORT

    FAQs

    • The switch must receive video signals on both HDMI inputs per PC for dual monitor output.
    • Audio is transmitted via HDMI connection. An HDMI monitor is required for audio.
    • Hotkeys are triggered via a keyboard plugged into the dedicated mouse or keyboard ports.
    • Emulation programming is locked and cannot be removed from mouse & keyboard ports.
    • Dedicated mouse & keyboard ports should not be used for other types of USB devices.
    • Use a powered USB hub to expand the number of USB 2.0 ports.
    • If the wireless mouse/ keyboard is “jumpy”, use a USB extender to reduce the distance from the receiver.
    • Please install 2 AAA batteries before using the remote control (battery not included).

    COMPATIBILITY INFORMATION

    • Dedicated mouse & keyboard ports have emulation programming. Second-generation chipsets have “Passthrough Mode” to send special characters such as multimedia keys (play, pause, volume up/down, etc), which greatly improves keyboard compatibility.
    • Keyboard software such as Logitech Options, DAS Q, Corsair iCUE, etc conflicts with the emulation programming and limits the ability to use dedicated macro keys. We recommend using the KVM’s USB 2.0 port as a workaround if this software is desired. The USB 2.0 port does not have emulation programming and therefore the KVM will not recognize hotkey switching commands. Please use a powered USB hub to expand USB connectivity, if needed.

    MORE INFO



    Tired of clutter? Try TESmart KVM switch

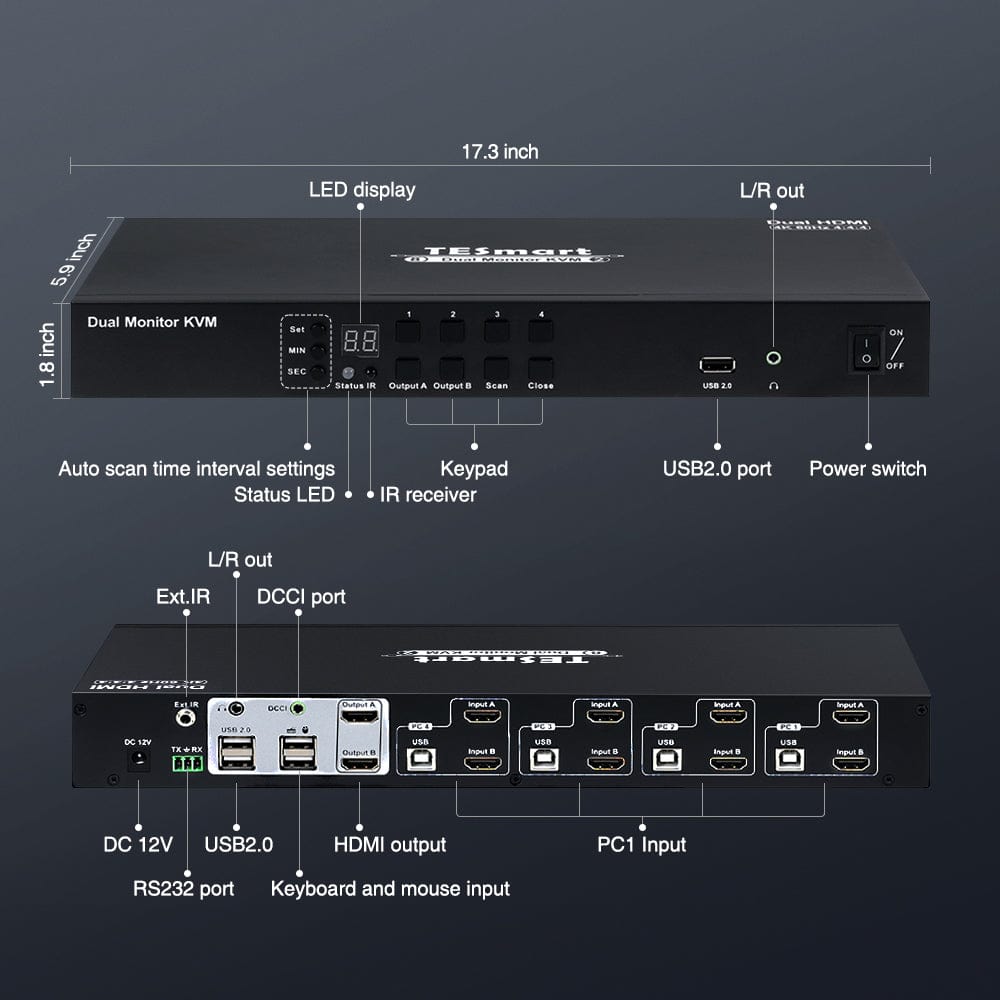

    Specs

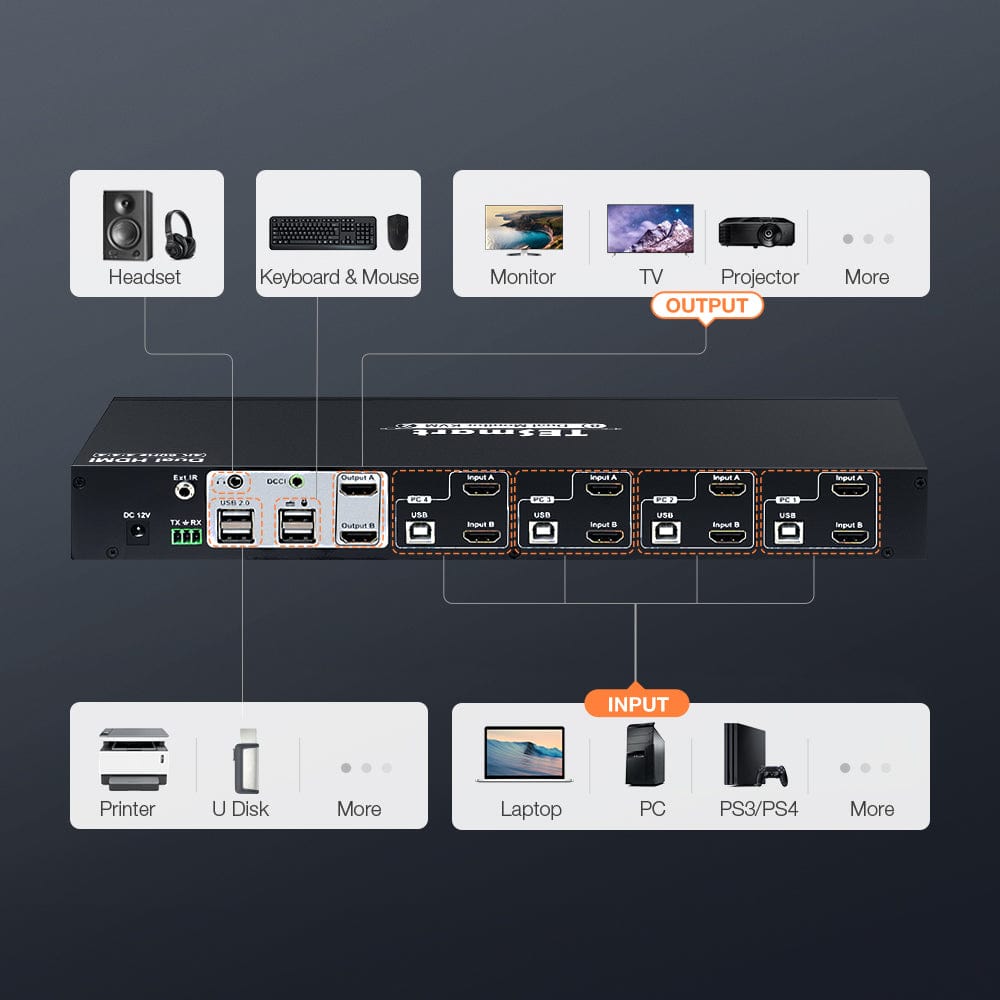

    Diagram

    Renovate your hybrid life

    Unleash the full potential of your versatile lifestyle. Elevate your work and play with rapid transitions, dependable performance, and universal device compatibility. Navigate your digital world seamlessly with our innovative KVM Switch.

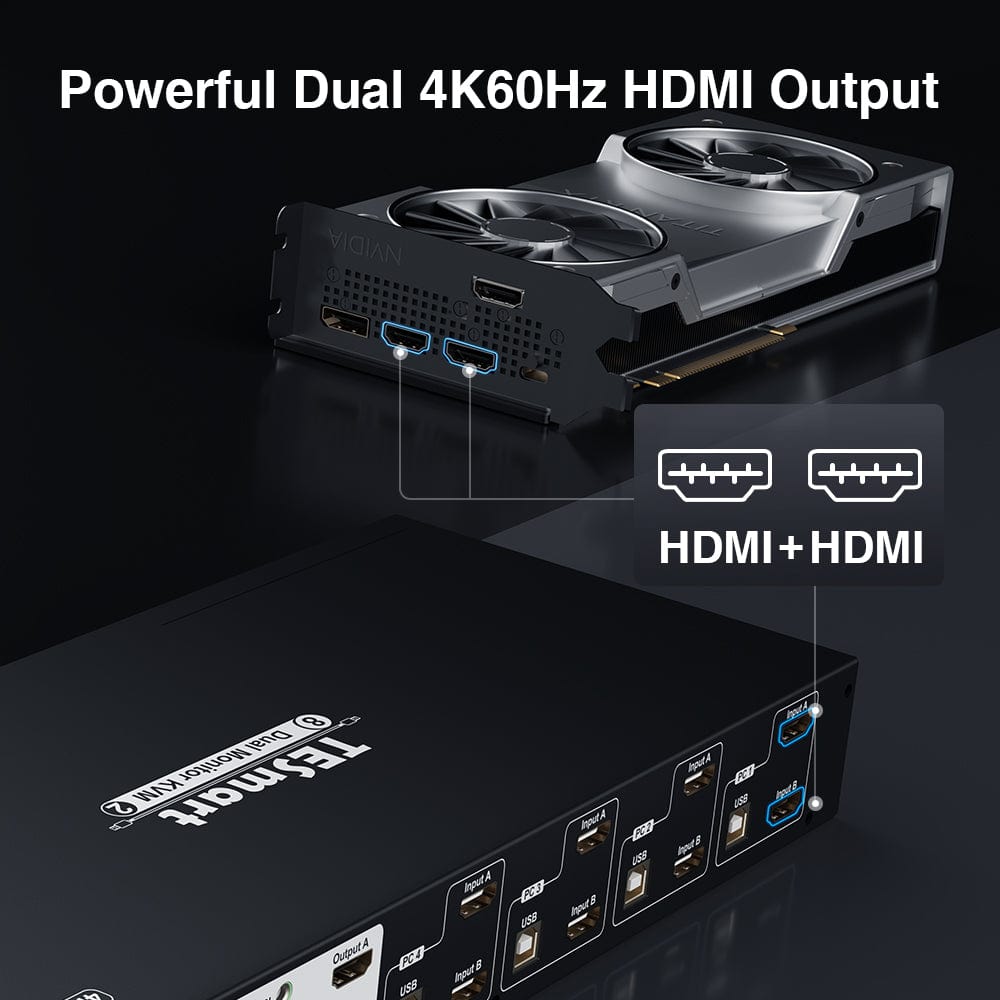

    • Powerful Dual 4K30Hz HDMI Output

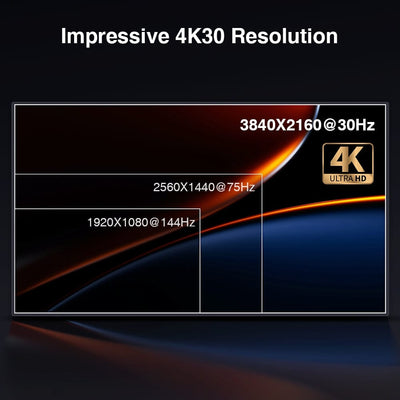

    • Impressive 4K30 Resolution

    • Dual Monitor, Two Display Modes

    • One-Touch Switching

    • Always Accurate Display with EDID Emulation

    Immerse in unparalleled clarity with dual 4K30Hz HDMI outputs. Our TESmart KVM Switch enhances both your productivity and entertainment with ultra-smooth and highly detailed imagery.

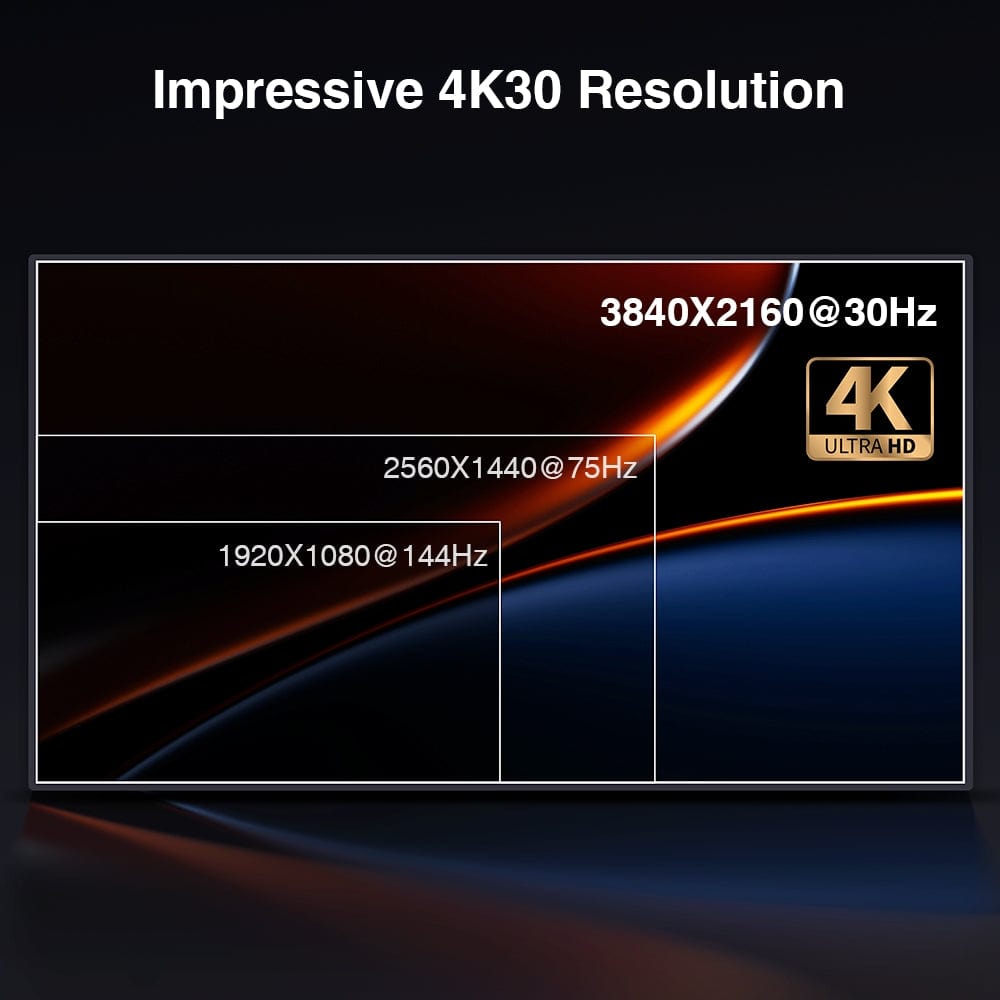

    Ultimate compatibility for 4K, ultra-wide, and high-refresh-rate displays. Elevate your visual experience with this Dual Monitor HDMI KVM Switch. Supports resolutions up to:

    • 3840x2160@30Hz
    • 3840x1080@75Hz
    • 3440x1440@60Hz
    • 2560x1440@75Hz
    • 2560x1080@100Hz
    • 1920x1080@144Hz

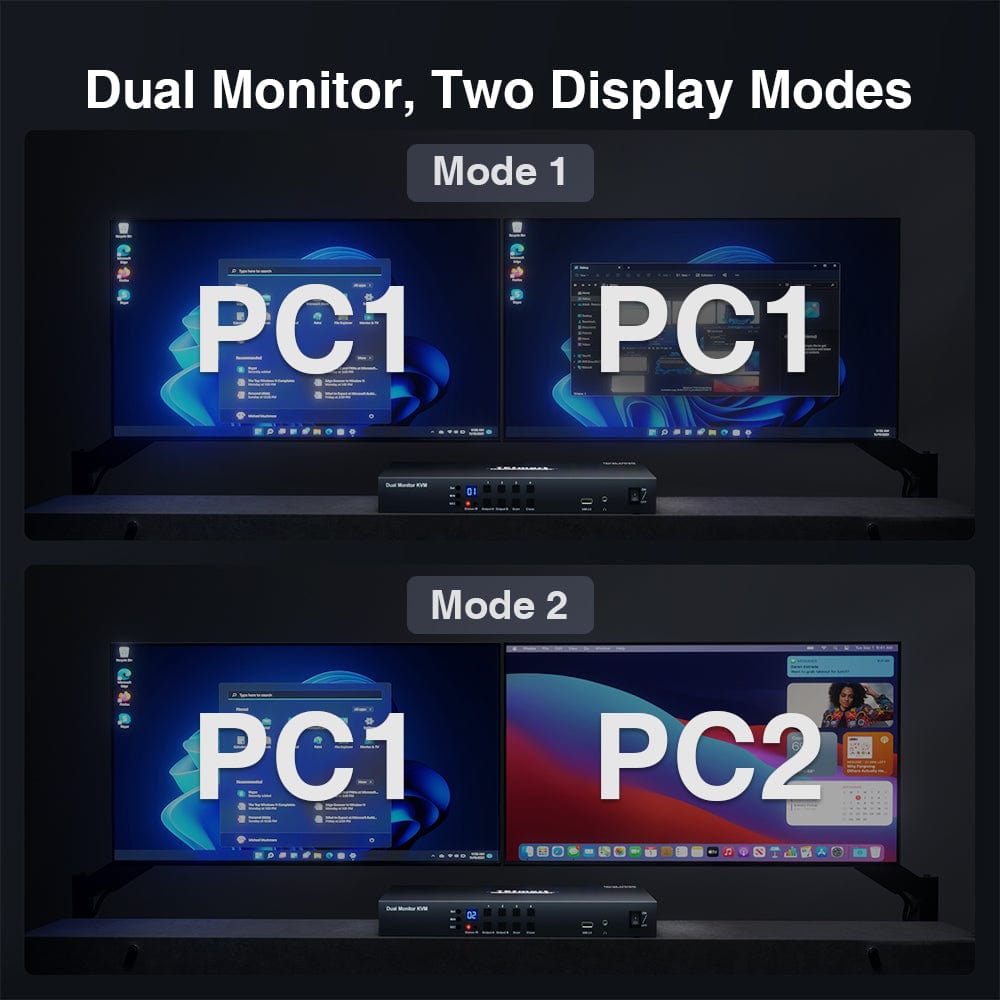

    Choose between extended and split desktop modes for seamless control of multiple devices on dual screens. Effortlessly switch between laptop and PC while controlling dual screens, audio, keyboard, and mouse.Perfect for home, office, or educational settings.

    Enjoy reliable 4K monitor support for both Mac and Windows.

    Simplify your setup and save time with this amazing KVM switch.

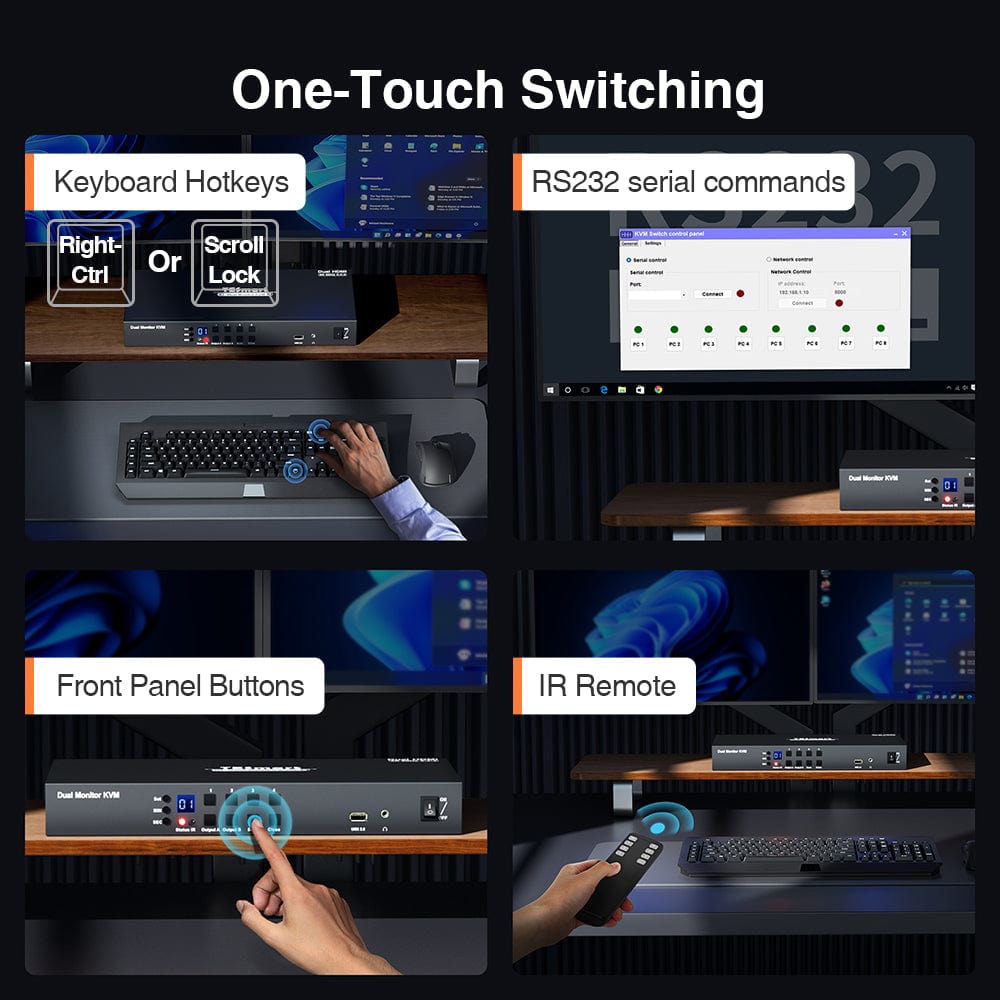

    Choose your ideal switching method:Keyboard Hotkeys, IR Remote, or Front Panel Buttons.

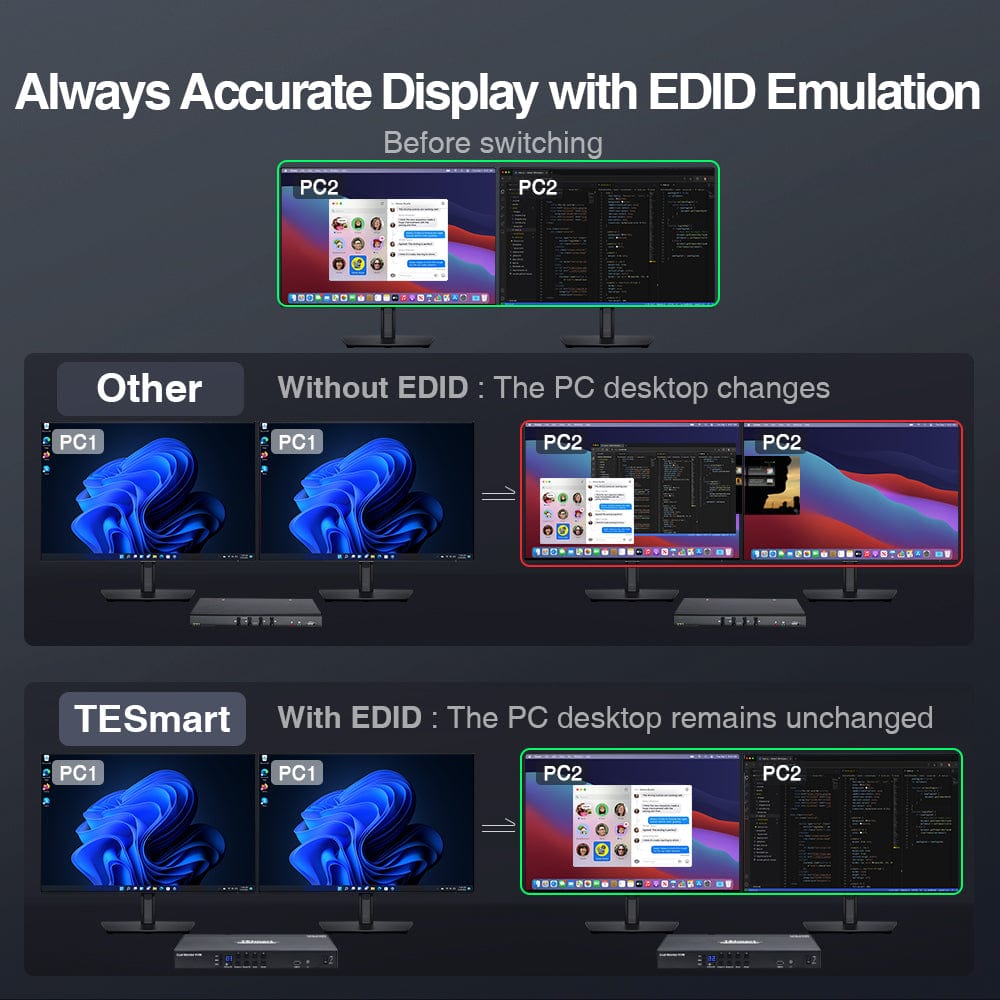

    Never worry about display issues again.Our KVM Switch with EDID emulation ensures that your computers always receive the correct display information, providing a seamless and worry-free experience.

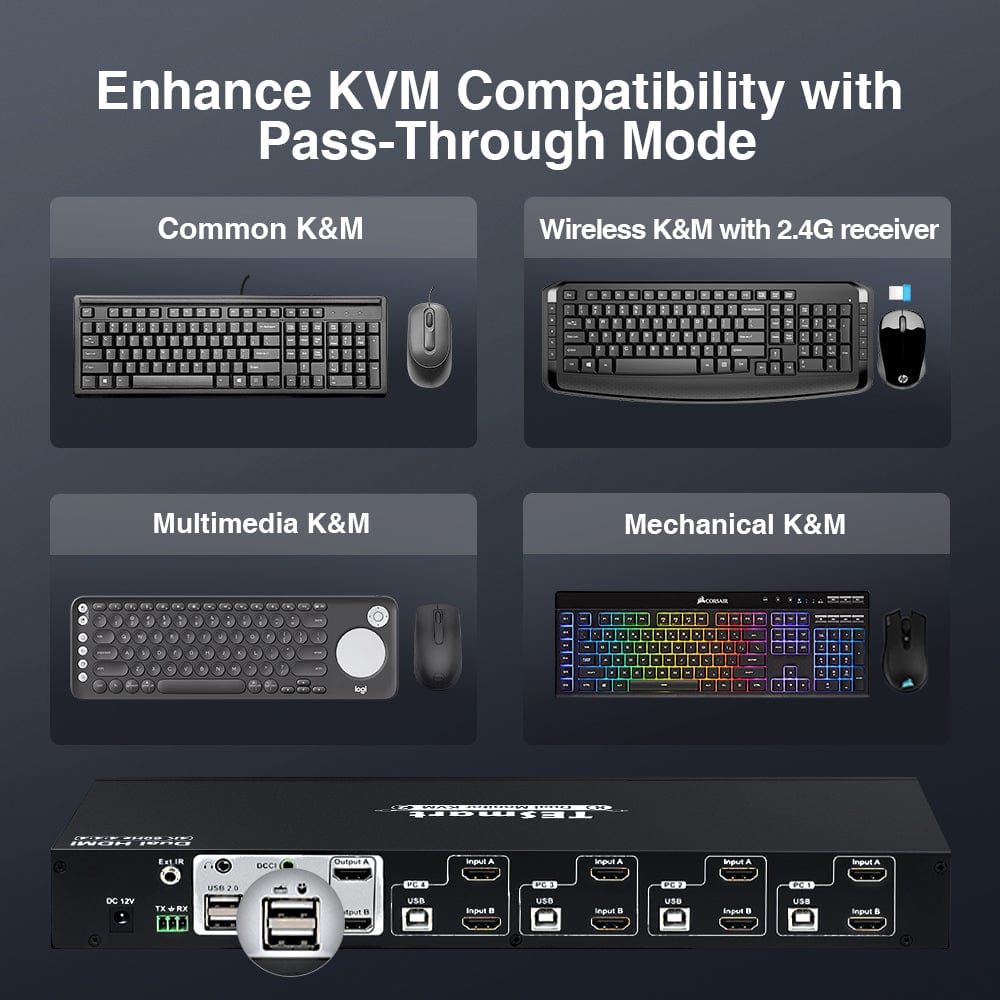

    • Enhance KVM Compatibility with Pass-Through Mode

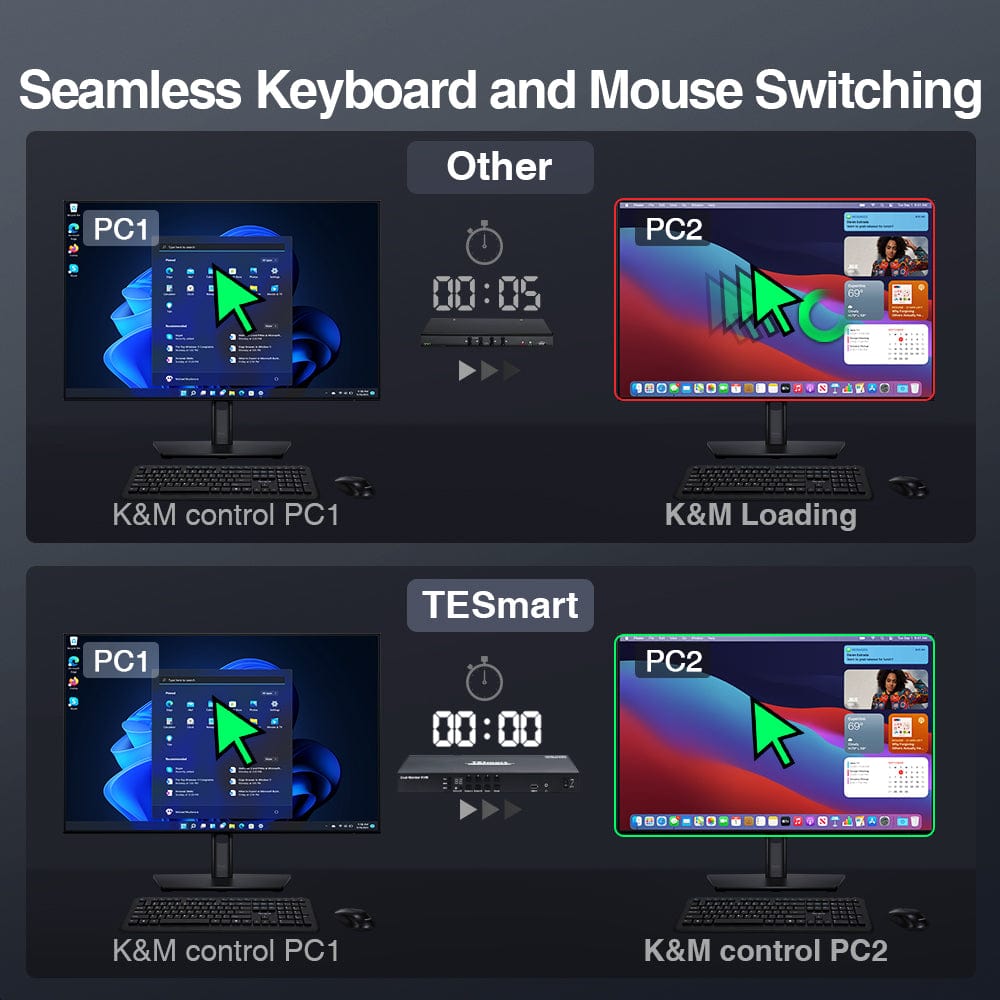

    • Seamless Keyboard and Mouse Switching

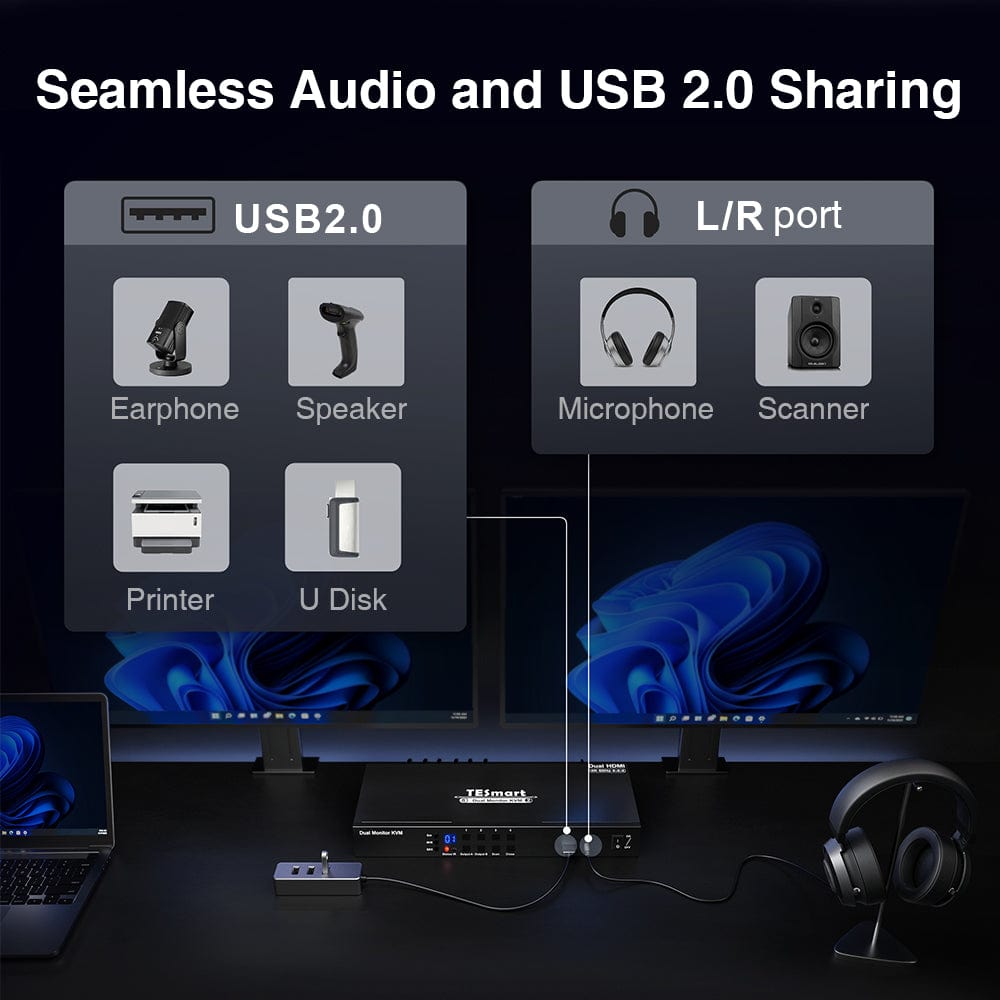

    • Seamless Audio and USB 2.0 Sharing

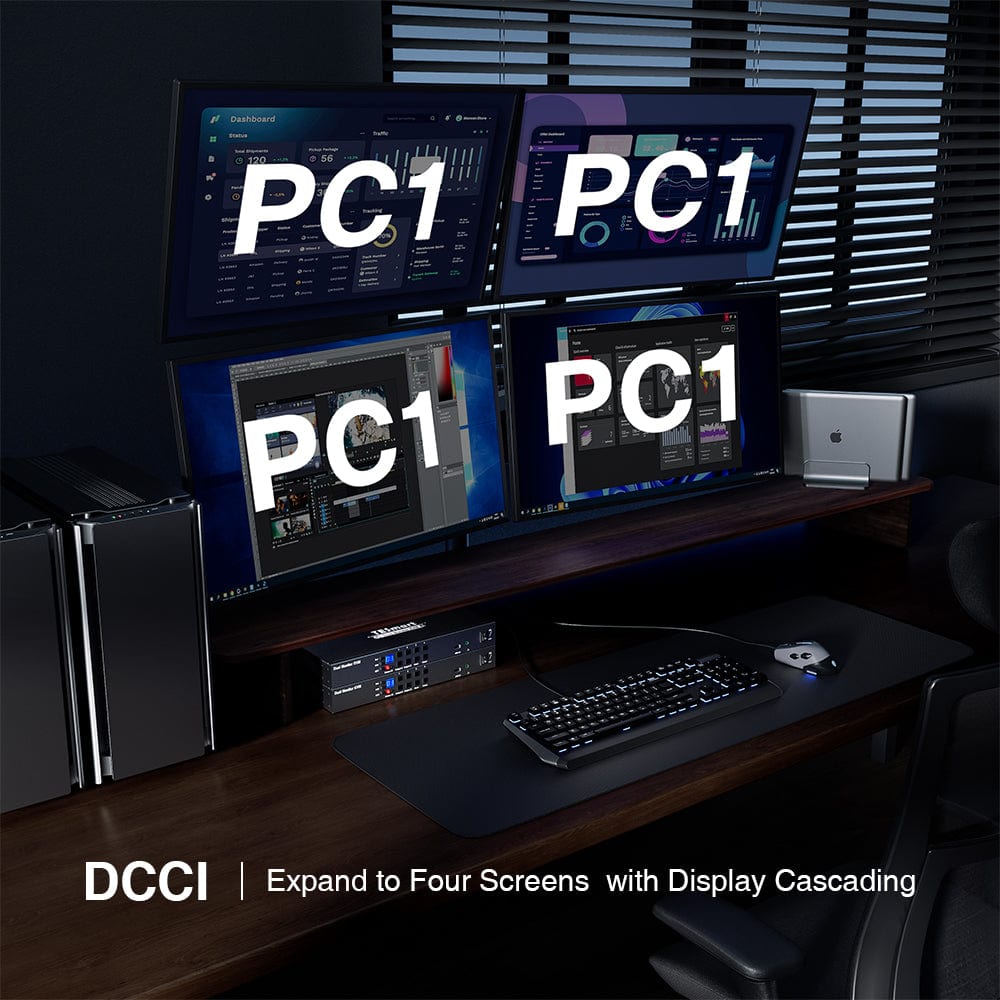

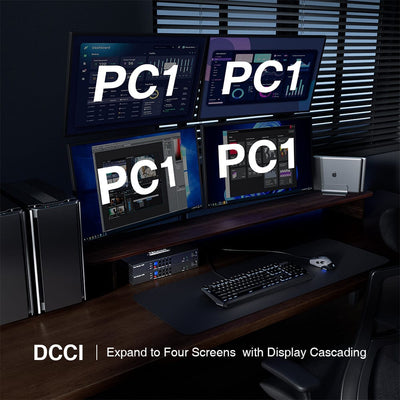

    • Expand to Four Screens with Display Cascading (DCCI)

    Compatible with various keyboard types including wired, wireless with 2.4G receiver, mechanical, and multimedia.

    Enjoy improved KVM compatibility with Pass-Through Mode.

    Experience instant keyboard and mouse access on any connected PC with seamless switching.

    Say goodbye to waiting and hello to uninterrupted productivity with our KVM Switch.

    Connect your headphones or speakers with ease through our L/R audio output port and enjoy the seamless audio output.

    Share USB 2.0 devices between multiple devices, simplifying your setup and increasing your productivity.

    Perfect for home, office, or educational settings.

    Maximize your digital workspace with the Expand to Four Screens feature using Display Cascading (DCCI). By simply connecting two HKS0802A1U KVM switches in parallel with the supplied DCCI cable, transform your setup into a dynamic 4 PC to 4 monitor KVM switch solution.

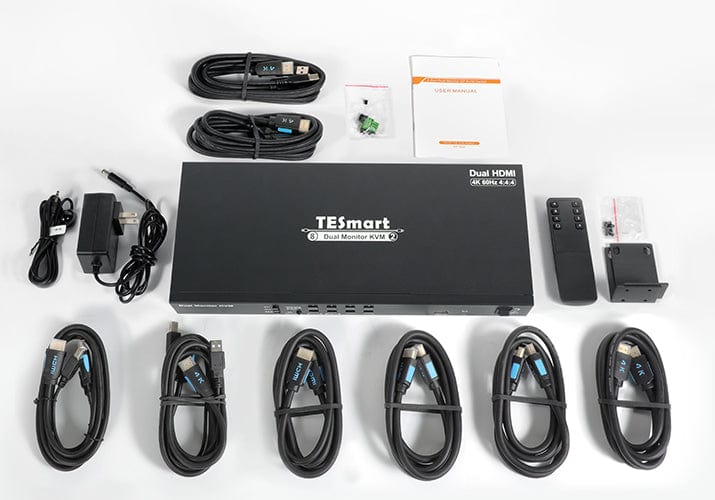

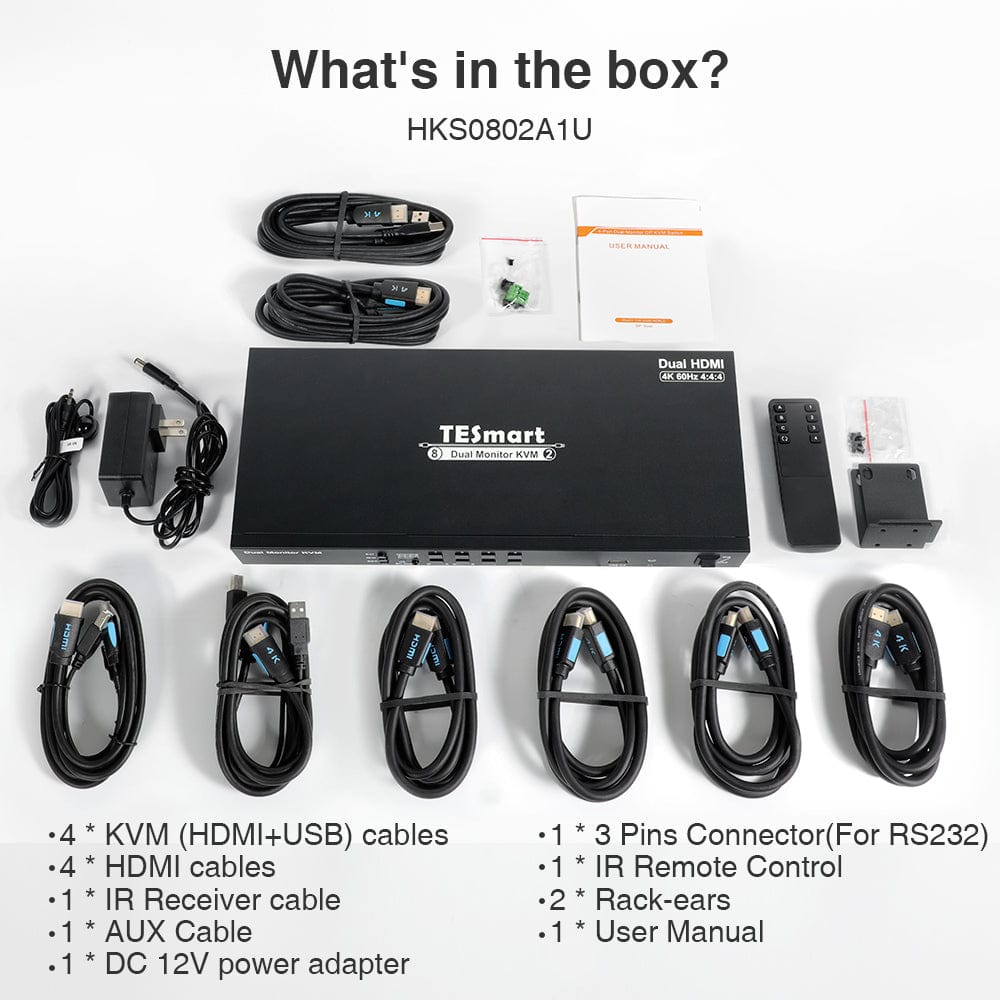

    What's in the box?

    EACH PC MUST MAKE 2 VIDEO CONNECTIONS (HDMI+HDMI) TO KVM FOR DUAL MONITORS

    • 1 * 4x2 Dual Monitor HDMI KVM Switch
    • 4 * KVM (HDMI+USB) Cables
    • 4 * HDMI Cables
    • 1 * IR Receiver Cable
    • 1 * AUX Cable
    • 1 * DC 12V Power Adapter
    • 1 * 3 Pins Connector (For RS232)
    • 1 * IR Remote Control
    • 2 * Rack-ears
    • 1 * User Manual
