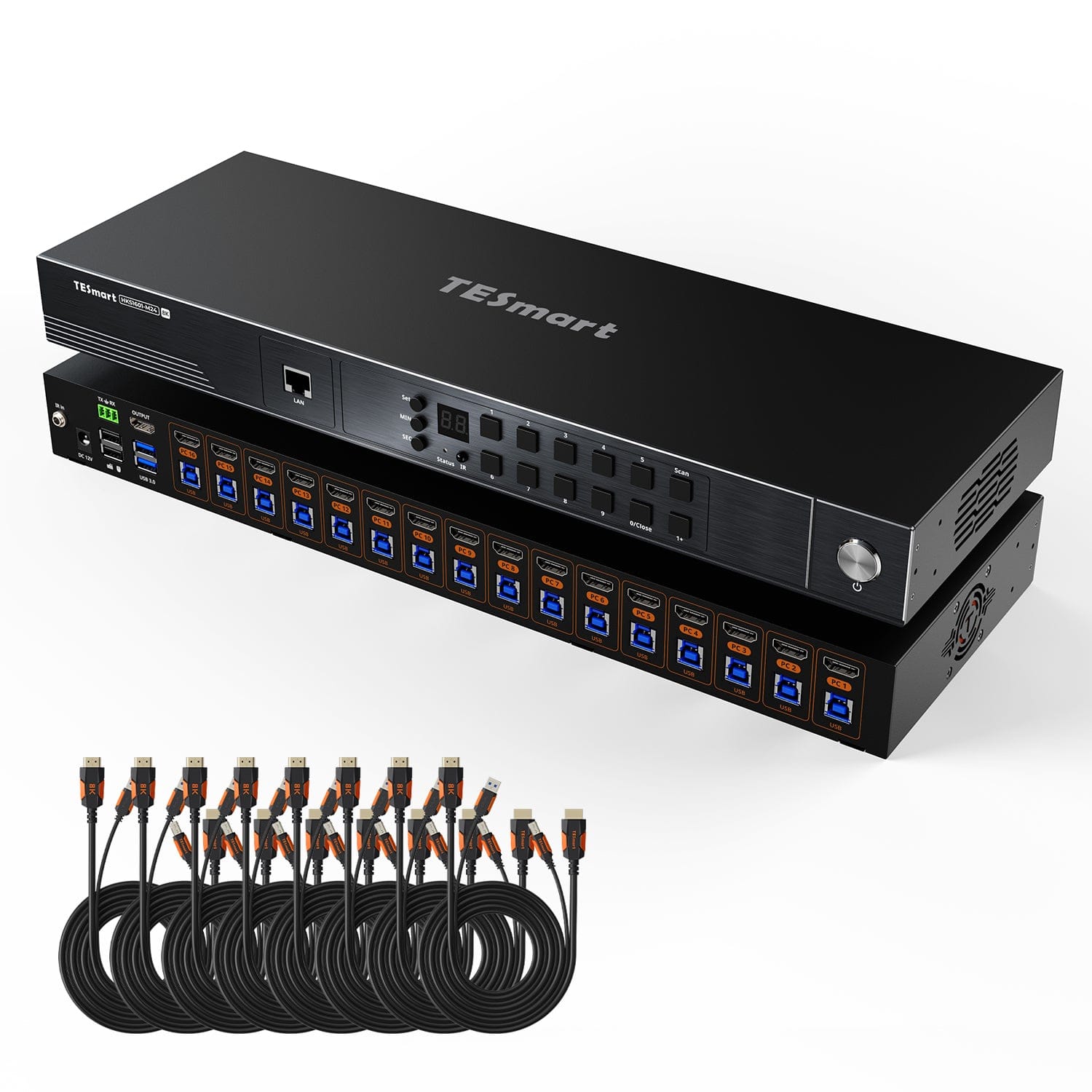

HKS1601-M24-USBK
16-Port 8K60Hz HDMI 2.1 KVM Switch – Multi-Control, USB 3.2 Gen1 (5Gbps) & Smart Modes for Pro Studios & Multi-PC Setups
- Regular price
-
$959.00 - Regular price
-
- Sale price
-
$959.00
Shipping calculated at checkout.
Couldn't load pickup availability
-
Hurry, only 4 items left in stock!
Overview & Key Features
True 8K@60Hz via HDMI 2.1, Stable EDID Emulator per Port, 99% Monitor Compatibility, Zero Flicker, Flash, or Black Screens
*(HKS1601-M24: Industry-leading 16-PC control (HDMI 2.1) & 1 Monitor (HDMI 2.1)).*
For Multi-PC 8K/4K Workflows:
Supports 48Gbps bandwidth for precision 8K/4K editing, ideal for professional video production and multi-system management.
For Multi-Source 4K/144Hz Gaming:
Enhanced with HDMI 2.1 technologies: Dynamic HDR (HDR10, Dolby Vision), VRR (G-Sync, FreeSync), FVA, and ALLM.
Compatible with NVIDIA and AMD graphics cards, ensuring tear-free, low-latency visuals across 16 gaming/editing PCs.
About this item:
The HDMI 2.1 KVM Switch includes complete connectivity: 8 × KVM Cables (HDMI+USB) for all PCs.

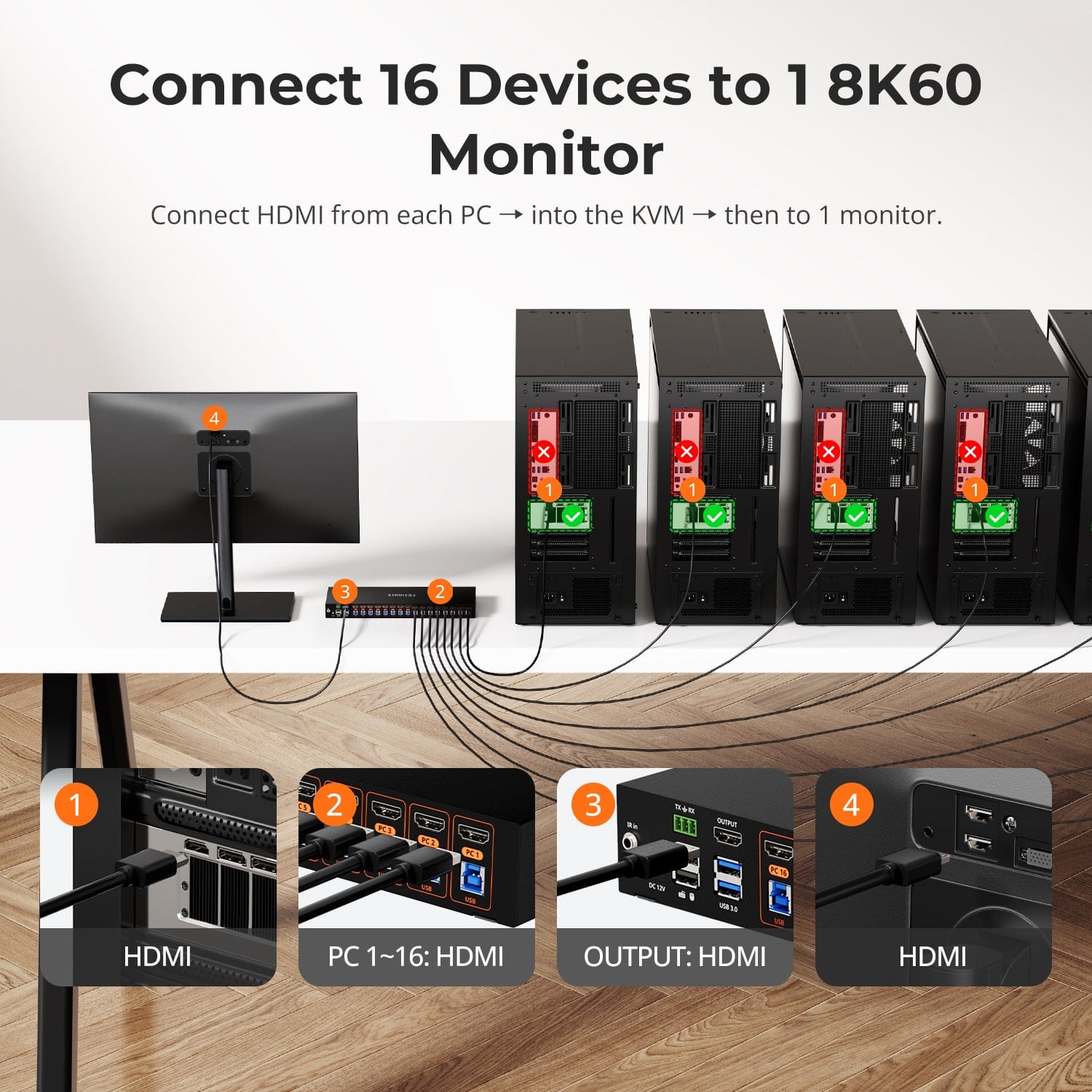

Centrally manage 16 PCs with one keyboard, mouse, and a single 8K/4K display.
Supports LAN port for TCP/IP remote control, enabling network-based KVM management without extra hardware.
HDMI 2.1 compliant, delivers 48Gbps bandwidth and supports VRR, FVA, and ALLM.
Supports HDR10 and Dolby Vision for cinematic color accuracy.
Supports resolutions up to 8K(4320p)@60Hz 4:4:4, backward-compatible with 4K@60Hz/120Hz/144Hz.
HDCP 2.3 compliant and DSC 1.2a compliant for protected content playback.
2 Smart Modes: Auto Detect (instant switching on device connection) and Auto Scan (timed rotation of active PCs).
6 Switching Methods: Front-panel buttons, keyboard hotkeys (Scroll Lock/Right-Ctrl), mouse wheel double-click, or IR remote signals, RS232 Port Control, LAN Port Control.
EDID emulation maintains stable resolution and prevents desktop icon rearrangement.
Keyboard/Mouse pass-through mode ensures compatibility with wired/wireless/mechanical/gaming peripherals (Logitech, Razer, Corsair, etc.).
USB 3.2 Gen1 (5Gbps) ports share storage/printers.
Hot-plug support—connect/disconnect devices without restarting PCs or the KVM.
RS232 serial control enables custom automation scripting for enterprise environments.
Compatible with Windows, macOS, Linux, Raspberry Pi, and Unix-based systems—ideal for data centers, studios, and multi-workstation setups.

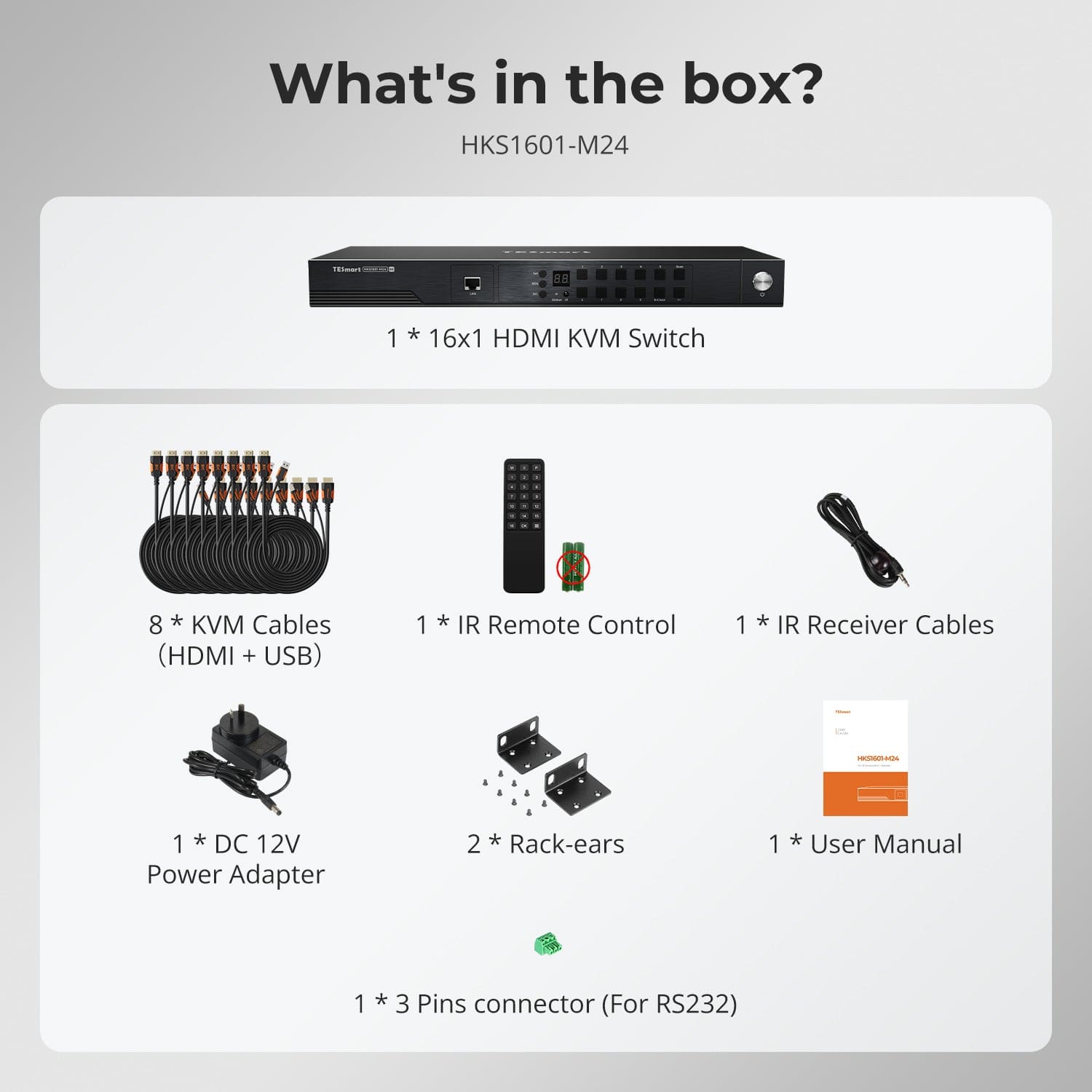

What's in the box
The kvm switch kit comes with complete kvm-to-pcs cables (HDMI 2.1 + USB 3.0) for a complete setup.
- 1 * 16X1 HDMI KVM Switch
- 8 * KVM Cables (HDMI+USB)
- 1 * IR Remote Control
- 1 * IR Receiver Cable
- 1 * DC 12V Power Adapter
- 1 * 3 Pins connector (For RS232)
- 2 * Rack-ears
- 1 * User Manual
Downloads & Manual
Shipping Policy Overview
TESmart Shipping Policy Overview
1. Order Processing
◦ Shipped in 48 hours (excludes weekends/holidays)
◦ US warehouse primary source; Nearest warehouse backup if out-of-stock
2. Shipping & Delivery
◦ Total time = Processing + Destination-based shipping
◦ Costs/delivery times vary (see website details)
| Country or Region | Estimated delivery time | Freight | postman |
| United States (excluding Alaska and Hawaii) | 3-5 working days | Free Shipping | UPS/USPS/FedEx/uniuni |
| U.K. | 3 working days | UPS/DPD | |
| Canada | 3-5 working days | Purolator/UPS | |
| China (Macao SAR, Hong Kong SAR, Taiwan) | 1-3working days | Starting at $30 | SF Express |
| Australia, New Zealand, Saudi Arabia, United Arab Emirates, Israel, Alaska, Hawaii | 5-12 working days | Starting at $60 | DHL/FedEx/UPS |
| Singapore, Malaysia, Philippines, Thailand | 5-12 working days | Starting at $30 | DHL/FedEx/UPS |
3.Tracking
◦ Tracking # emailed post-shipment (activates in 24h)
◦ Allow 48-72h for updating logistics information
4. Delays
◦ Email service@tesmart.com for carrier investigation
5. Cancellation
◦ Only possible before shipment
◦ If need be, please kindly contact our support service for return and refund within 30 days of delivery.
6. Taxes/Duties
◦ Import fees are the customer's responsibility. Please contact your local tax office.
7. Contact Us
📧 : service@tesmart.com
Click here to view the full Shipping Policy
Return & Refund Policy Summary
TESmart Return & Refund Policy Summary (U.S. Site)
-
Orders cannot be canceled or modified once placed due to automated processing.
-
If a return is needed, contact service@tesmart.com within 30 days of delivery. Items must be in original condition with all packaging and accessories.
-
Return shipping for non-quality issues is the customer’s responsibility.
Returns not accepted for:
-
Products from third-party retailers
-
Items damaged by misuse
To request a return, email with:
-
Order number, proof of purchase
-
Photos/videos (if defective), full shipping address, and phone number
Refunds are issued within 5 business days after the returned item passes inspection.
Return eligibility:
-
Within 30 days: Refunds/returns accepted for both quality and non-quality issues
-
30 days–1 year: No returns/refunds; repair or replacement may be offered
-
1–3 years: No returns/refunds; replacement or Upgrade /trade-in at 30% discount after 4 months (members only)
Contact Us by Email: service@tesmart.com
Full policy: https://www.tesmart.com/pages/refund-policy
Membership details: TESmart Membership Policy
TESmart ID – Trade in. Upgrade. Save. Or recycle it for free.
With TESmart Trade In, you can get great value for your current device and apply it toward a new one — all through our official website.
If your device isn’t eligible for credit, we’ll recycle it — and any accessories you no longer use — safely and for free.
It’s a great deal for you and a great way to protect the planet’s valuable resources.
💡 One TESmart ID. All your benefits.
✓ 3-year extended warranty
✓ Up to 50% trade-in credit (30% instantly, 20% after inspection)
✓ Free eco recycling
✓ Exclusive testing and gift campaigns
Your Exclusive Gift Awaits
🎁 Shop directly on TESmart.com and receive a premium gift with your order — no codes, no tricks, just added value.
-
Hand-picked gifts designed to enhance your KVM experience
-
Exclusive to official store customers
-
Choose the one that best fits your setup
- Select your KVM.
- Pick 1 free accessory in the section below (you can change it if you like).
- Add to cart and check out together.
Return and Refund Policy
The return and refund policy process overview is shown below. For the full policy, please refer to the Full Policy page below.
1.Order Cancellation & Modification
-
To ensure timely delivery for every customer, TESmart’s order processing and shipping system is fully automated. Once shipped, the process is irreversible—orders cannot be canceled or modified, including address changes.
-
Please kindly contact us within 30 days of delivery at service@tesmart.com, If you wish to return a product after receiving it, ensure the product and packaging are undamaged and in original condition.
-
⚠️ Return shipping costs for non-quality issues are the responsibility of the customer. For more details, please kindly see below.
2.Return Process
2.1 Return Conditions:
-
Products must be returned in original packaging, including all accessories, manuals, and documentation.
2.2 Items Not Eligible for Return:
-
Products purchased from third-party retailers.
-
Products damaged due to misuse or improper handling by the customer.
2.3 Return Request:
Please contact TESmart customer service to request a return. Email: service@tesmart.com
When requesting a return by email, please provide the following:
-
Order number
-
Proof of purchase
-
Photos or videos of the defective product (to speed up processing)
-
Full shipping address
-
Contact phone number
2.4 Processing Time:
-
Our support team will respond to your return request within 48 hours and provide the return warehouse address in your country/region.
-
For certain countries/regions (e.g., the U.S., Germany, and the EU), we may provide a prepaid return label after confirming your address to expedite the return/refund process.
2.5 Return Address:
-
Please send the product to the designated TESmart return warehouse.
2.6 Warehouse Inspection:
-
Upon receipt, TESmart will inspect the returned item(s).
3. Refund Process
3.1 Refund Trigger:
-
Once the returned product is received and inspected by our warehouse, the refund process will begin.
3.2 Refund Timeframe:
-
Refunds will be processed within 5 business days after the return is received.
3.3 After-Sales Categories:
3.3.1 Within 30 days of delivery:
Products purchased from TESmart.com are eligible for return or exchange within 30 days if:
-
The product is in its original packaging with all accessories.
-
Return photos are provided before shipping.
-
Non-quality issues: Return and refund supported within 30 days. Return shipping is the customer’s responsibility.
-
Quality issues: Return and refund supported within 30 days. Return shipping is covered by TESmart.
3.3.2 From 30 days to 1 year after delivery (warranty period):
-
Return/refund not supported. Please email service@tesmart.com to contact our after-sales support team.
-
After evaluation by our technical team, we may offer product repair or replacement with the same model.
-
To ensure timely service, we prioritize replacements.
⚠️ Note: “Replacement” refers to the same model only available to TESmart members.
3.3.3 From 1 to 3 years after purchase (for VIP Members) :
-
Return/refund not supported.
-
You may contact our after-sales support team for replacement of the same model.
-
If you wish to upgrade to another product, after 4 months from purchase, members may Upgrade & Trade-in at a 30% discount off the original price.
For membership-related extended warranty details, please see Section 4.1/4.2: 🔗 https://www.tesmart.com/pages/membership-policy
3.4 If you have any questions regarding the above policies, please contact: service@tesmart.com
4. After-Sales Support & Issue Resolution
4.1 Contact Information:
-
For any questions or support requests, please contact TESmart Customer Service: 📧 service@tesmart.com
4.2 Delayed Refunds (if you haven’t received a refund after 5 business days):
-
Check your bank account (ensure it is the one used for the purchase).
-
Contact your card issuer (credit/debit card providers may experience processing delays).
-
Contact your bank to confirm the transaction status.
TESmart is committed to respecting and protecting the legal rights of consumers. For any matters not covered in this policy, or case of updates or changes, please refer to official announcements on the TESmart website.

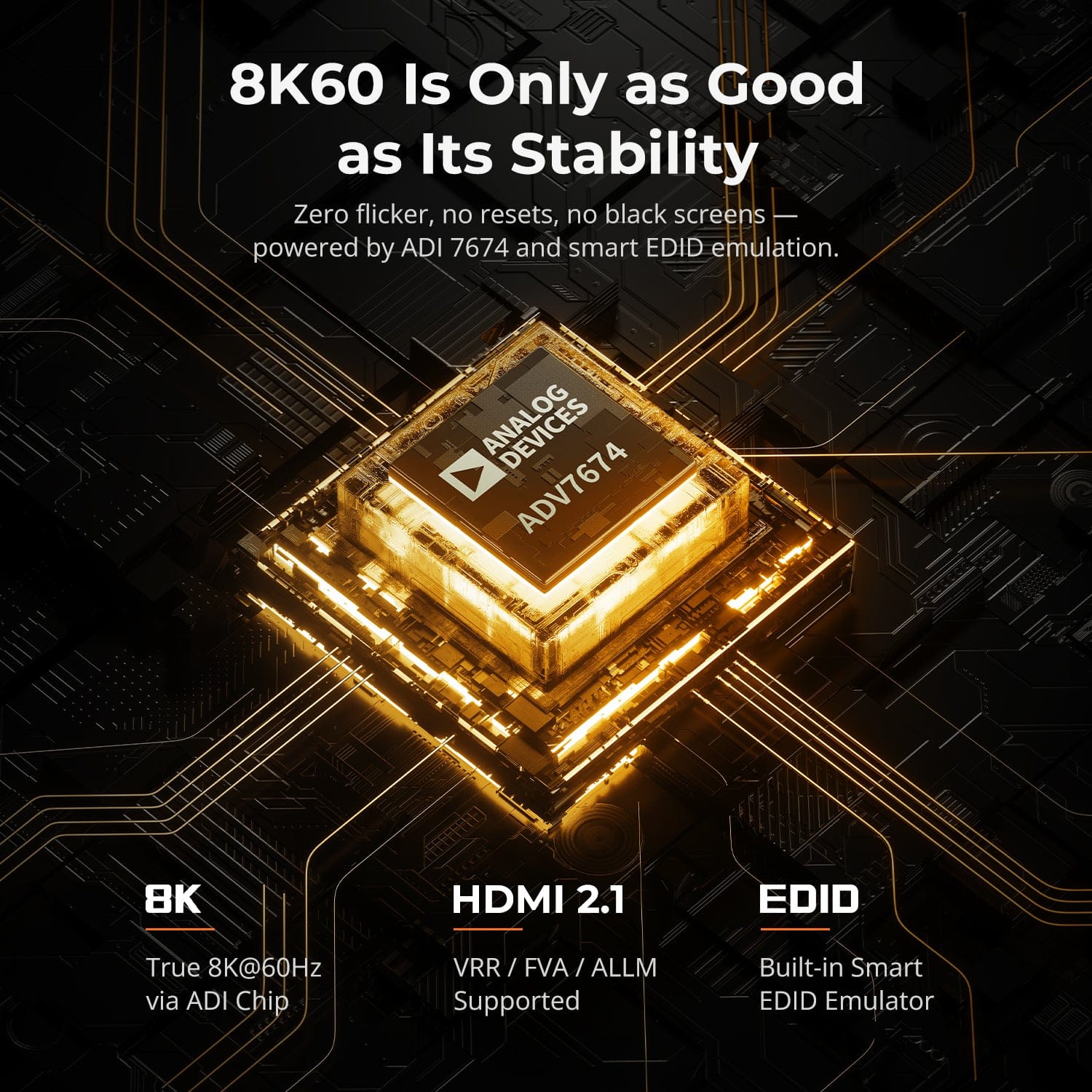

8K60 Is Only as Good as Its Stability
From 8K to 240Hz — It Just Works
4K144 HDR VRR

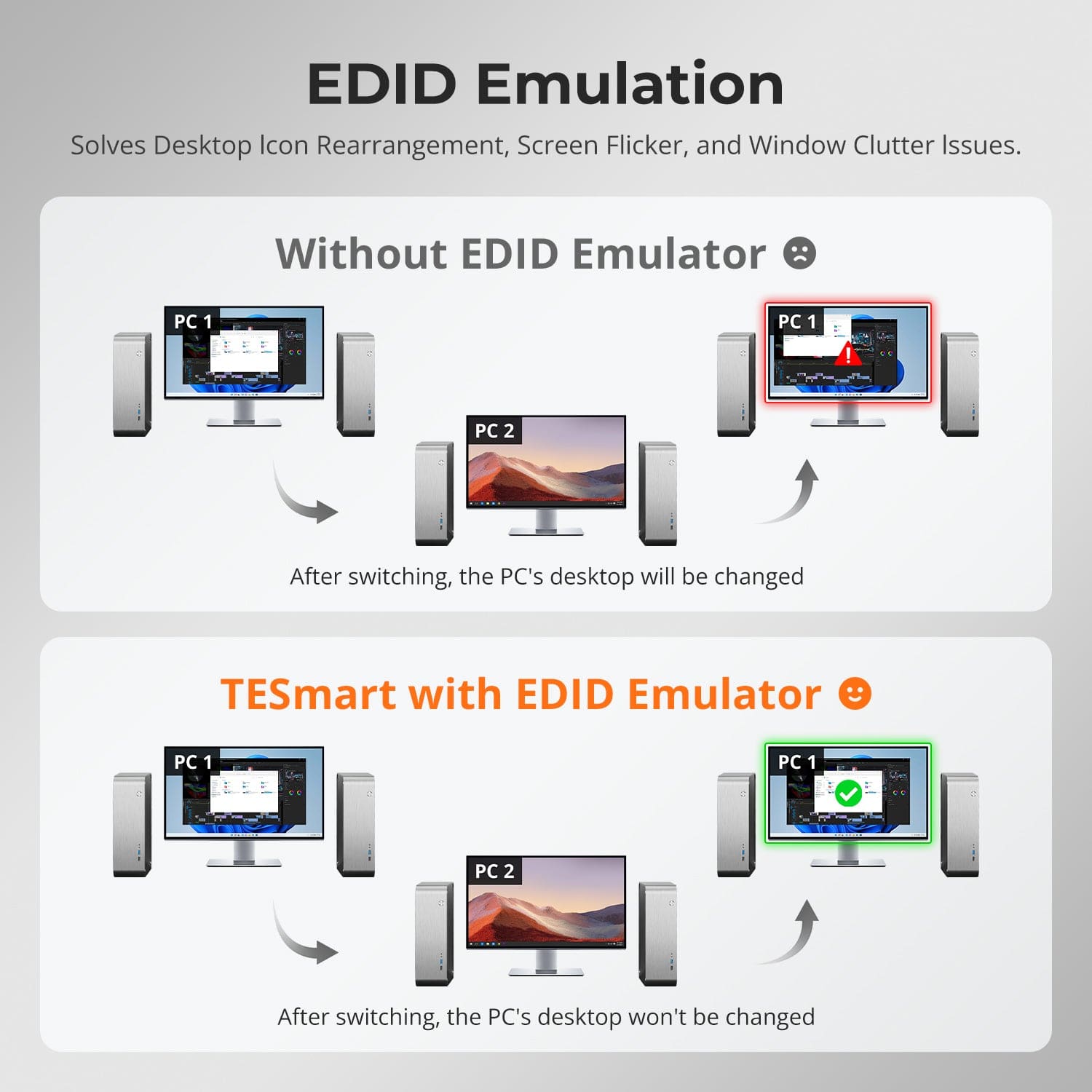

EDID Emulation — Stable Screens, No Surprises
Zero flicker. No resets. No black screens.
Powered by ADI 7674 decoding and advanced EDID emulation, this KVM ensures stable multi-monitor output even under high bandwidth loads.
Why it’s built different:
- ADI 7674: industry-grade HDMI 2.1 decoding
- Smart EDID: signal always-on, no display loss
- VRR / FVA / ALLM supported for smooth, tear-free gaming
- Ideal for high FPS gaming and critical creative workflows
Built for smooth gameplay, creative workflows, and ultra-clear visuals. With HDMI 2.1 and DSC, our KVM supports extreme resolutions and high refresh rates across a wide range of displays.
Each HDMI 2.1 output theoretically supports up to:
- 7680×4320 (8K UHD) — 60Hz (DSC)
- 5120×1440 (32:9 Ultra-Wide) — 120Hz (DSC)
- 3840×2160 (4K UHD) — 240Hz (DSC)
- 3440×1440 (21:9 Ultra-Wide) — 144Hz
- 2560×1440 (QHD) — 240Hz
- 1920×1080 (FHD) — 240Hz
Faster Switching. Stronger Signal. Smoother Frames.
- Fast Switching in 1–3 Seconds: No blackouts, no resets
- Signal Always-On: No disconnects during switch
- VRR / FVA / ALLM Supported: Tear-free, low-lag gaming
- 4K@120Hz HDR (12bit): Stunning clarity and colors
- Up to 4K@144Hz / 165Hz via DSC: Built for fast-action games
Powered by ADI HDMI 2.1 decoding — boosts weak signals and ensures seamless multi-monitor stability
Switching displays shouldn’t scramble your desktop. Our built-in EDID emulator keeps your layout exactly how you left it.
- No More Icon Mess
Preserves icon positions and window sizes when switching inputs. - Flicker-Free Switching
Eliminates screen blackouts and flicker caused by display reinitialization. - Smoother Multitasking
Maintain visual consistency across workstations and monitor setups.
✅ With TESmart EDID emulation: your display stays stable and unchanged — even after switching.
⚠️ Without EDID emulation: icons shift, windows resize, and screen flicker occurs after every switch.

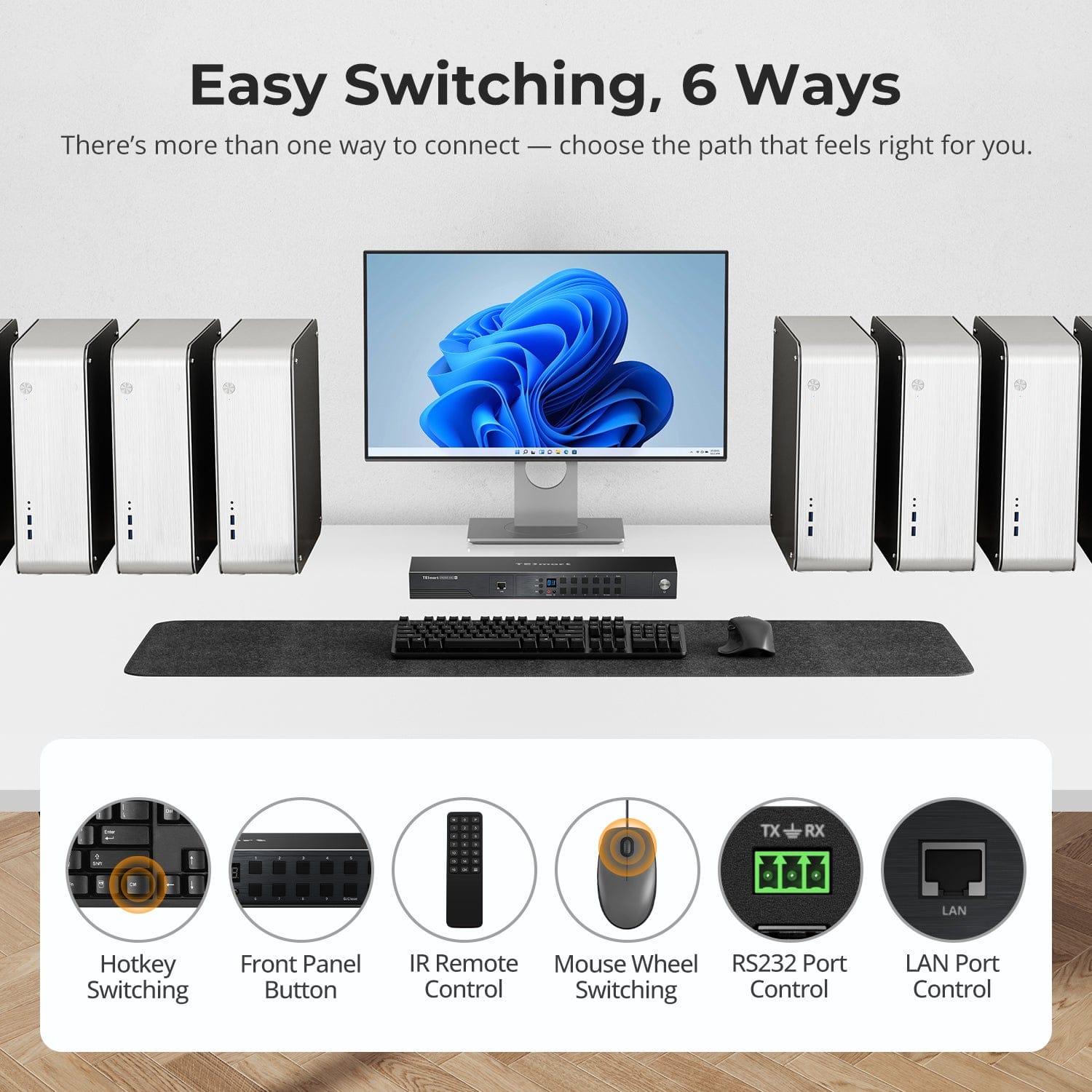

Easy Switching, 6 Ways

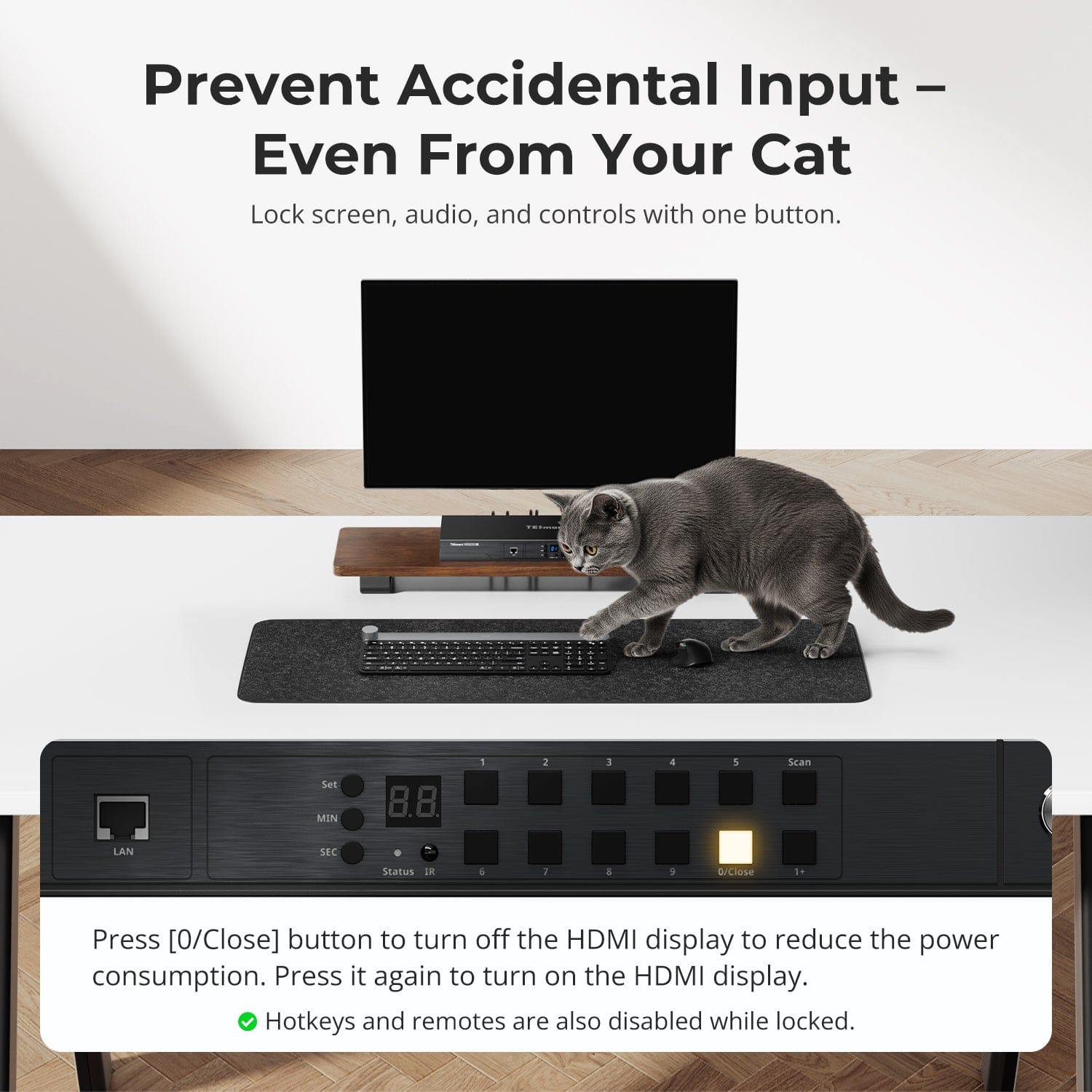

Prevent Accidental Input – Even From Your Cat

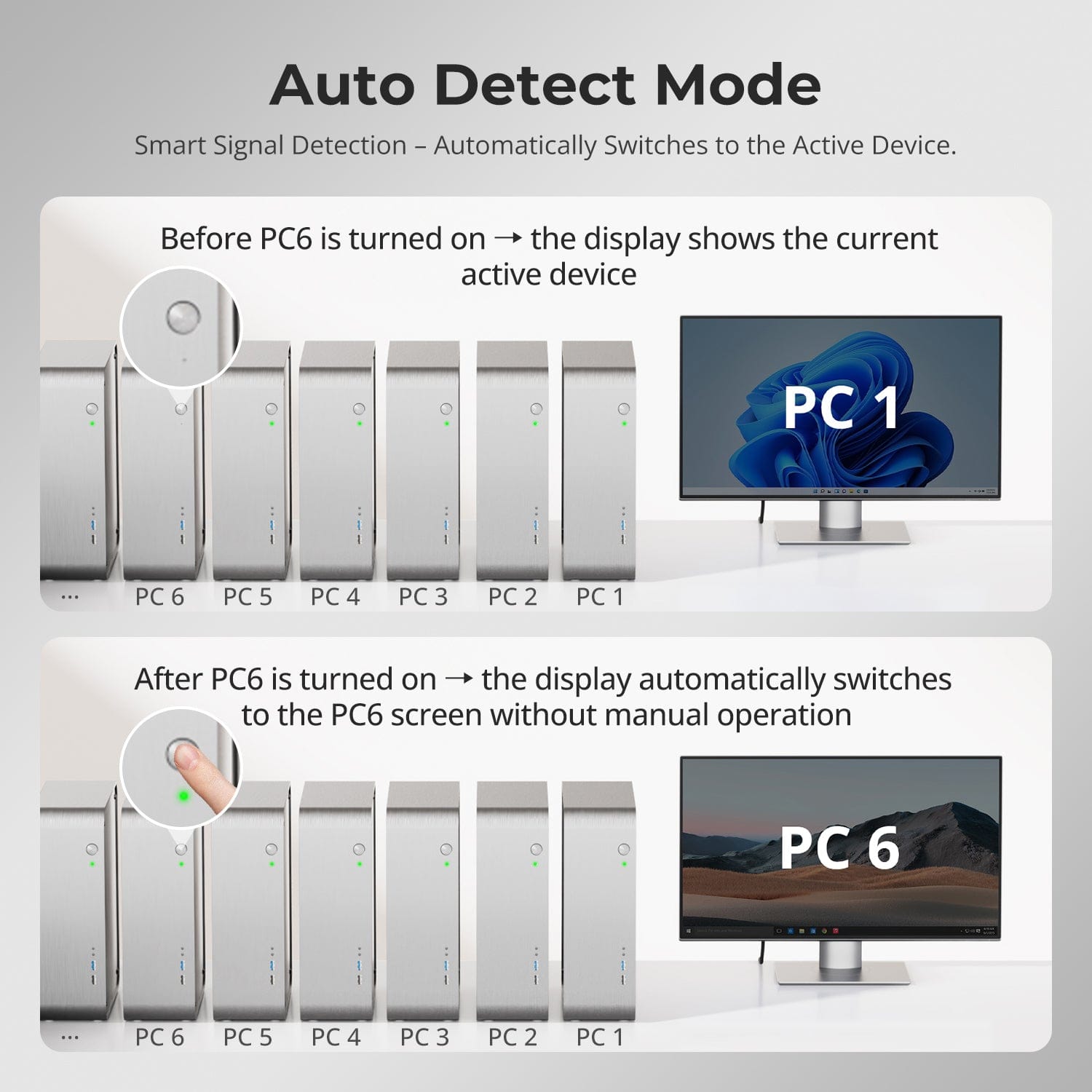

Auto Detect Mode — Smart Switching, Zero Hassle

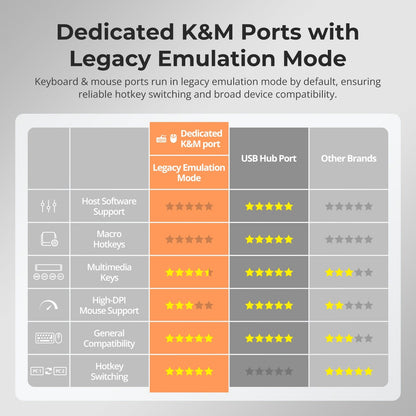

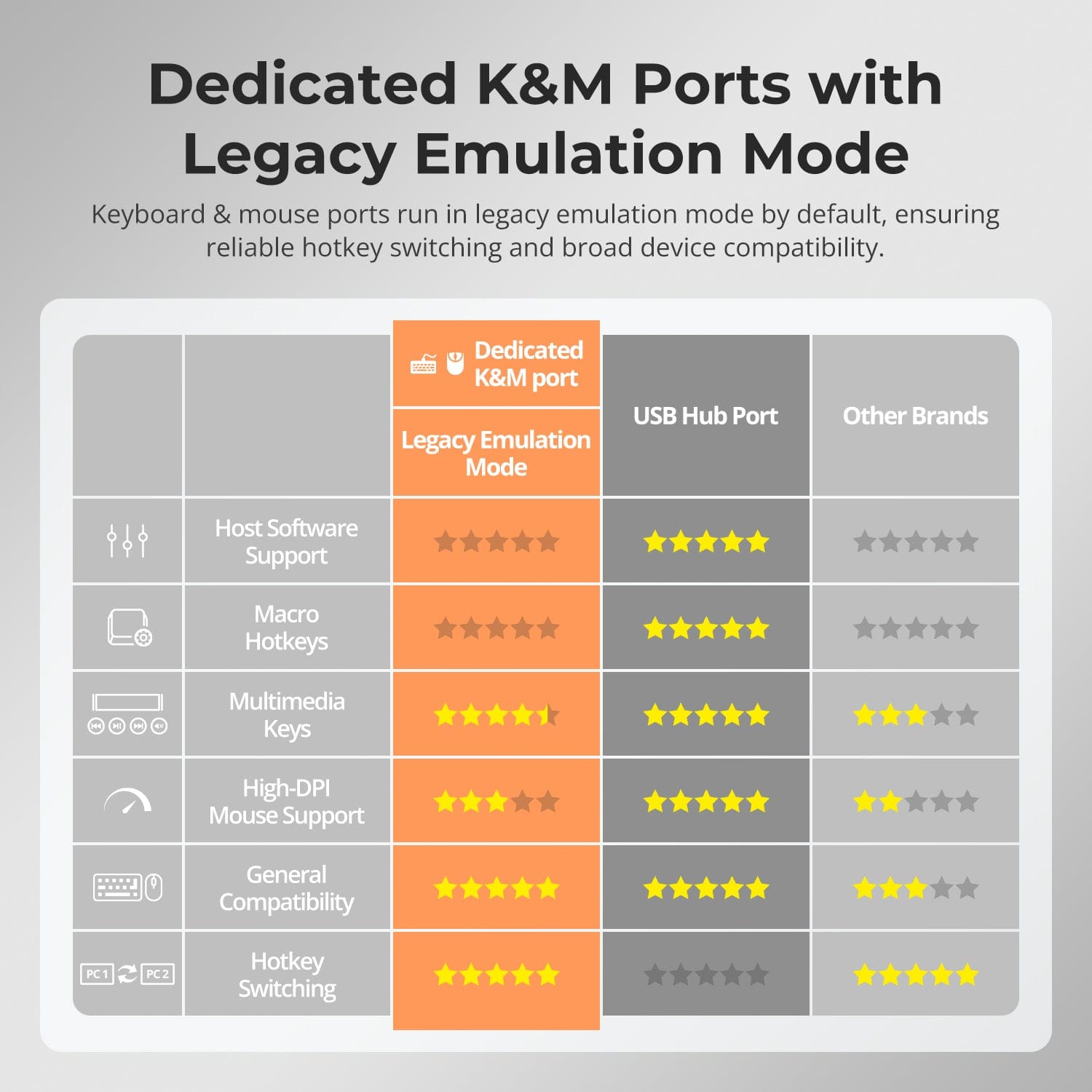

Dedicated K&M Ports with Dual-Mode Support
Switching shouldn’t slow you down — we offer six seamless methods to suit any setup or habit:
- Hotkey Switching — Use fixed key combos for quick source changes
- Front Panel Button — Simple, direct access anytime
- IR Remote — Stay in control from across the desk
- Mouse Wheel — Tap twice to switch instantly
- RS232 Port — Integrate with third-party control systems
- LAN Port — Manage switching over your local network
Whether you're working, gaming, or managing an AV setup — choose the method that works best for you.
Avoid unwanted inputs during meetings, presentations, or idle time. With one button, you can lock screen output, audio, and all control interfaces.
- One-Touch Lock
Freezes display, disables USB, audio, hotkeys, and IR control. - PIN Unlock
Resume exactly where you left off by entering your custom password. - Peace of Mind
Prevents accidental switching — ideal for homes with kids or pets.
✅ Hotkeys and remote controls are disabled while locked.
⚠️ To unlock, press the Lock button again and enter your PIN.
No need to manually switch inputs — the KVM detects and switches to the active device as soon as it powers on.
- Intelligent Signal Detection
Automatically senses new signal input and switches focus to the latest active PC. - Hands-Free Operation
Ideal for setups with always-on desktops and occasional laptop use. - Seamless Experience
Minimizes delay or interruptions when waking devices or switching between systems.
✅ Example: When PC4 is powered on, the display switches to it automatically — no buttons needed.
To improve keyboard and mouse compatibility — especially during hotkey switching — we designed two specialized connection modes:
- Pass-Through Mode (Recommended)
Direct passthrough to the PC. Supports advanced drivers, macros, high-DPI mice, and multifunction input devices. Ideal for gaming, design, and pro workflows. - Legacy Emulation Mode
Ensures universal compatibility and stable hotkey functionality across most systems. Best for office or when driver issues occur.
✅ Hotkey commands only work when your keyboard is connected to the dedicated K&M port.
⚠️ Emulation Mode disables driver-based software and advanced features.
⚠️ Bluetooth keyboards/mice are not supported.
-
Free Shipping
US / CA / UK · 3–5 Business Days
-
30-Day Free Returns
Hassle-Free Return & Purchase Guarantee
-
Extended Warranty: 1+2 Years
Register to unlock 2 extra years of coverage
-
TESmart+ Members
Trade in for 30% off + Lifetime Tech Support
