1080P BNC SDI to HDMI Media Converter

Regular price
$149.99
Regular price
Sale price
$149.99
Shipping calculated at checkout.
Features
  • Support SD/HD/3G SDI input.
  • Support input timing 480i/576i, 720P@50/60Hz, 1080i@50/60Hz, 1080P@24/25/30/50/60Hz.
  • Support equalized SDI output
Packaging List
  • 1* SDI to HDMI Converter
  • 1* Power supply 5VDC 1A
  • 1* User manual



Product Name

1080P BNC SDI to HDMI Media Converter

SDI input resolution

480i/576i

720P@50/60Hz

1080i@50/60Hz

1080P@24/25/30/50/60Hz

Remark: Some TV sets do not support refresh rates of 24Hz, 25Hz, etc, so we recommend that you adjust the SDI input timing to 720P@50Hz, 720P@60Hz, or 1080P@50Hz, 1080P@60Hz.

HDMI output resolution

480i/576i

720P@50/60Hz

1080i@50/60Hz

1080P@24/25/30/50/60Hz

SDI output format

Same with SDI input

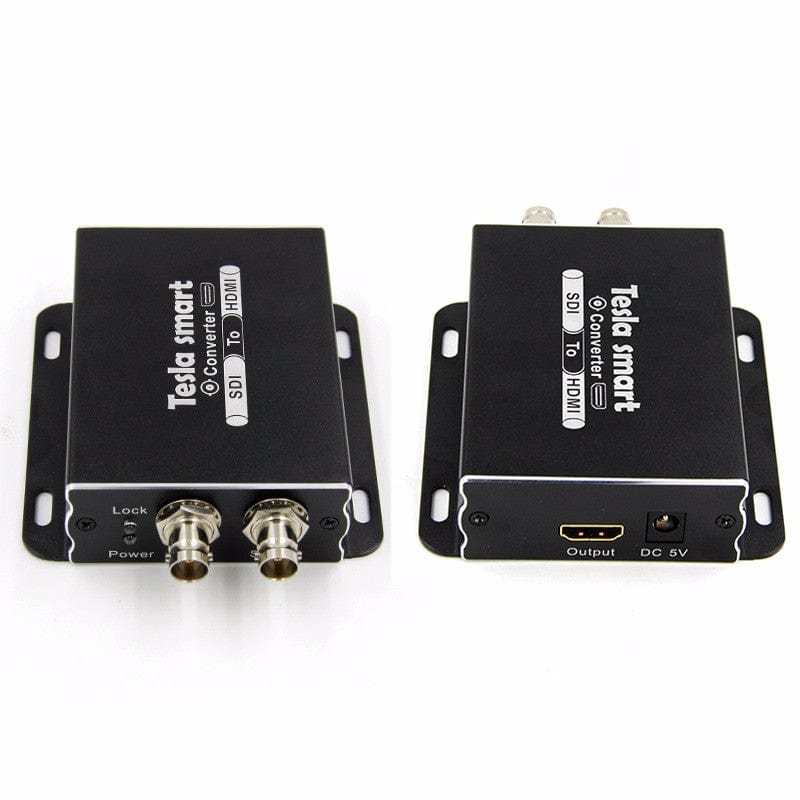

Input port

SDI x 1, DC port x 1

Output port

SDI x 1, HDMI x 1

Product Dimensions

93 (W) x 68 (D) x 29 (H) mm

Item Weight

300g

Bandwidth

3Gbps

Power supply

5V DC 1A

Operating/Storage Temperature

0 to 70 degrees / -40 to 85 degrees

Working Humidity

5 to 90% RH

Texture of material

Aluminum alloy, oxidation treatment on surface Scratch resistant
