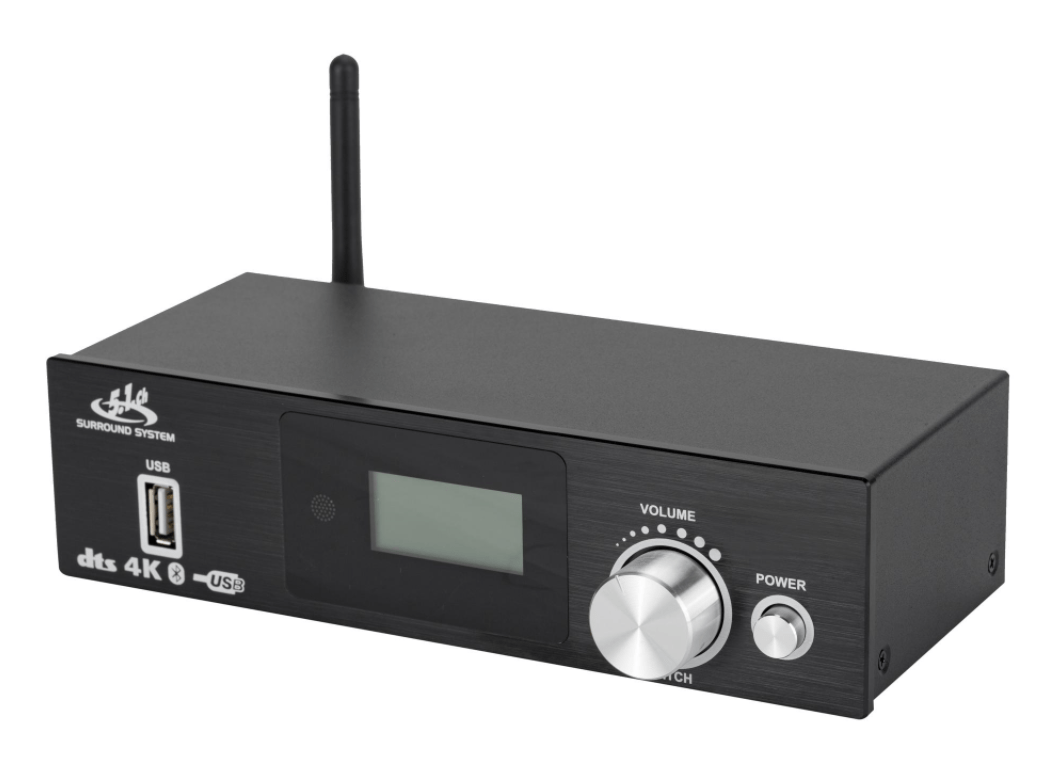

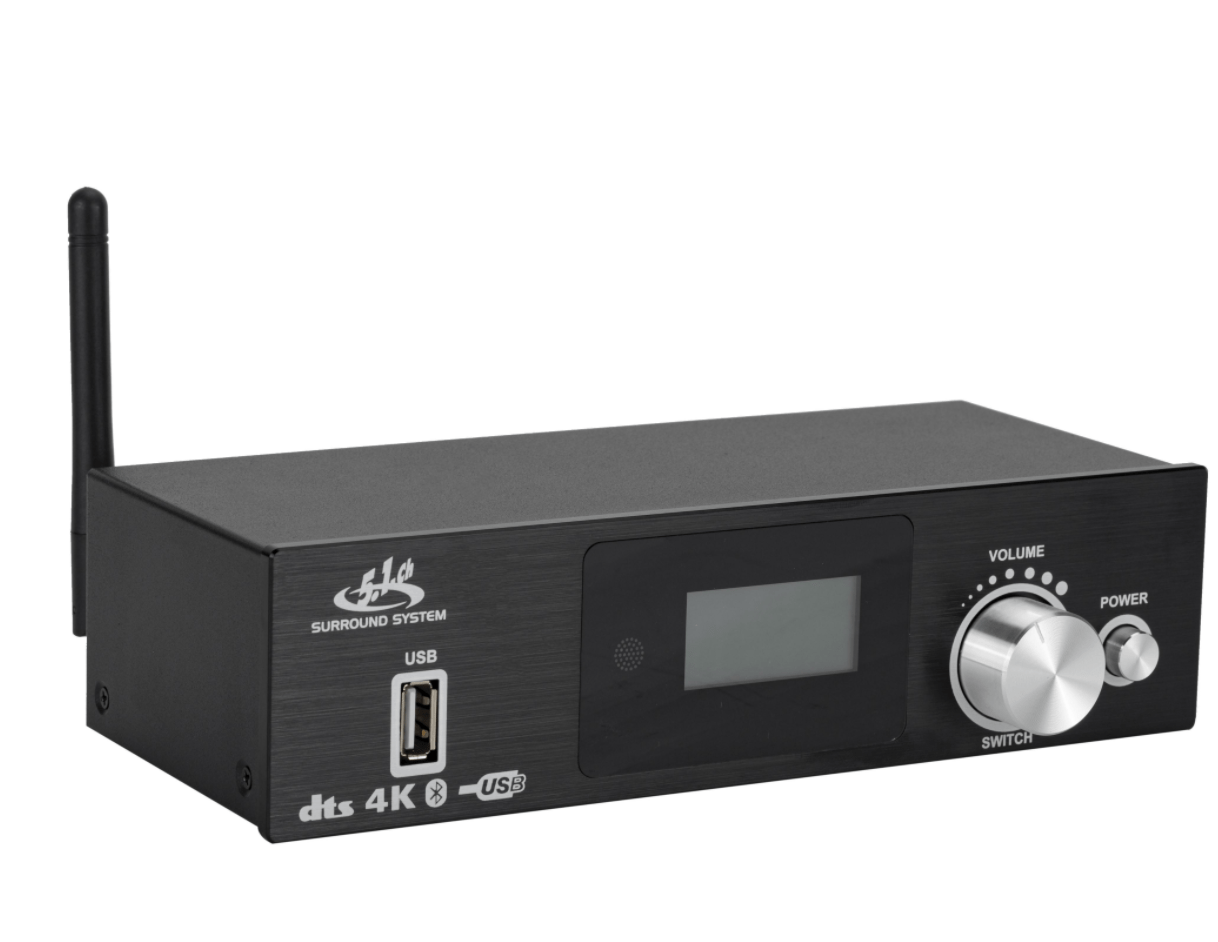

3*1 HDMI Switch with Audio Amplifier

Regular price
$116.99
Regular price
$129.99
Sale price
$116.99
Shipping calculated at checkout.

The amplifier is a mini digital audio amplifier that is designed for smart housing, small meeting rooms, small meeting rooms, etc. Ranging from 20Hz to 20Khz frequency design, you can enjoy an audio experience when you use this mini amplifier.

Features

  • Input interface: HDMIx3 + ARC + coaxial + optical fiber + PC-USB + AUX + USB music player + Bluetooth 5.0
  • Output interface: 5.1ch + optical fiber + coaxial
  • HDMI resolution: maximum 4K*2K at 60hz (UD951B)
  • Display interface: LCD panel
  • Operation mode: button operation and remote control
  • Decoding capability: For DTS/DTS-ES/AC3/DTS-HD/DolbyTrue HD
  • USB playing support: DTS/AC3/WAV/DTS-ES/APE/FLAC/HDCD/MP3, etc.
  • Decoding performance: support hard decoding (true 5.1) and soft decoding (virtual 5.1)
  • Bluetooth receiver version: V5.0
  • Bluetooth receiver distance: within 20m/65.6ft

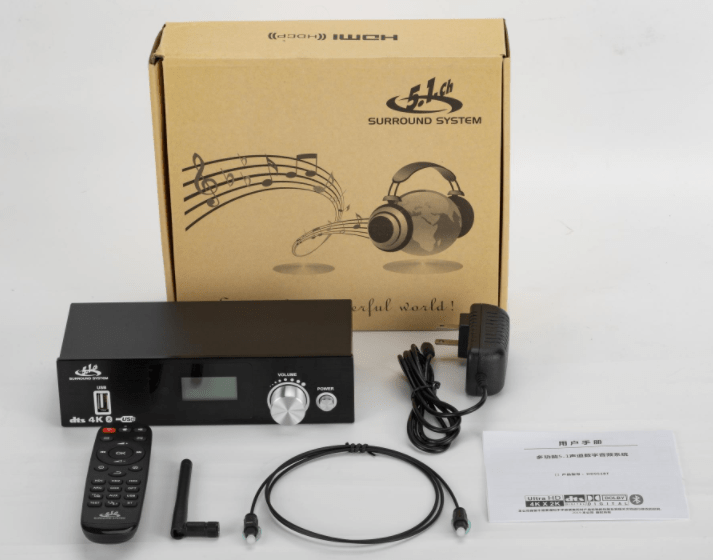

Packing List

  • 1 x Audio Decoder Host
  • 1 x IR Remote Control
  • 1 x DC 12V/1A Power Adapter
  • 1 x Digital Optic Fiber
  • 1 x User Manual
  • 1 x Blue tooth Antenna

Specification

BHH0301C1U 3*1 HDMI Switch with Audio Amplifier
Functionality:
Port selection Front panel buttons Yes
Keyboard hotkeys NO
IR remote control Yes
Console commands NO
Technical:
Max. Resolution 3840x2160@60Hz 4:4:4
Auto to get EDID Yes
Data rate 18Gbps

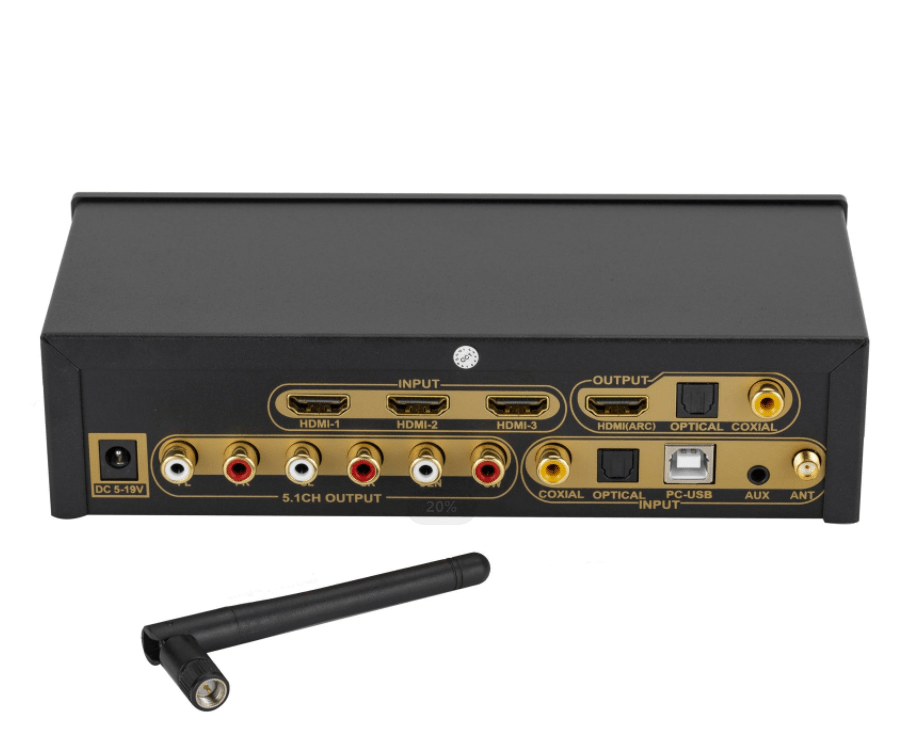

Video/Audio ports  input 3 * HDMI Type A
1*AUX
1*ANT
1* COAX
1*Optical
output 1 * HDMI Type A
1*Optical
1* COAX
1*5.1 COAX
System ports USB USB B
Power adapter forma DC 5v~19V
ESD protection Human body model - ±8kV (Air-gap discharge)
Mechanical:
Chasing material Iron, black
Product  Dimension 202(L)*103(D)*53(H)mm
Weight 700g
Item Dimension 245(L)*192(D)*57(H)mm
Weight 950g
