Description
Overview

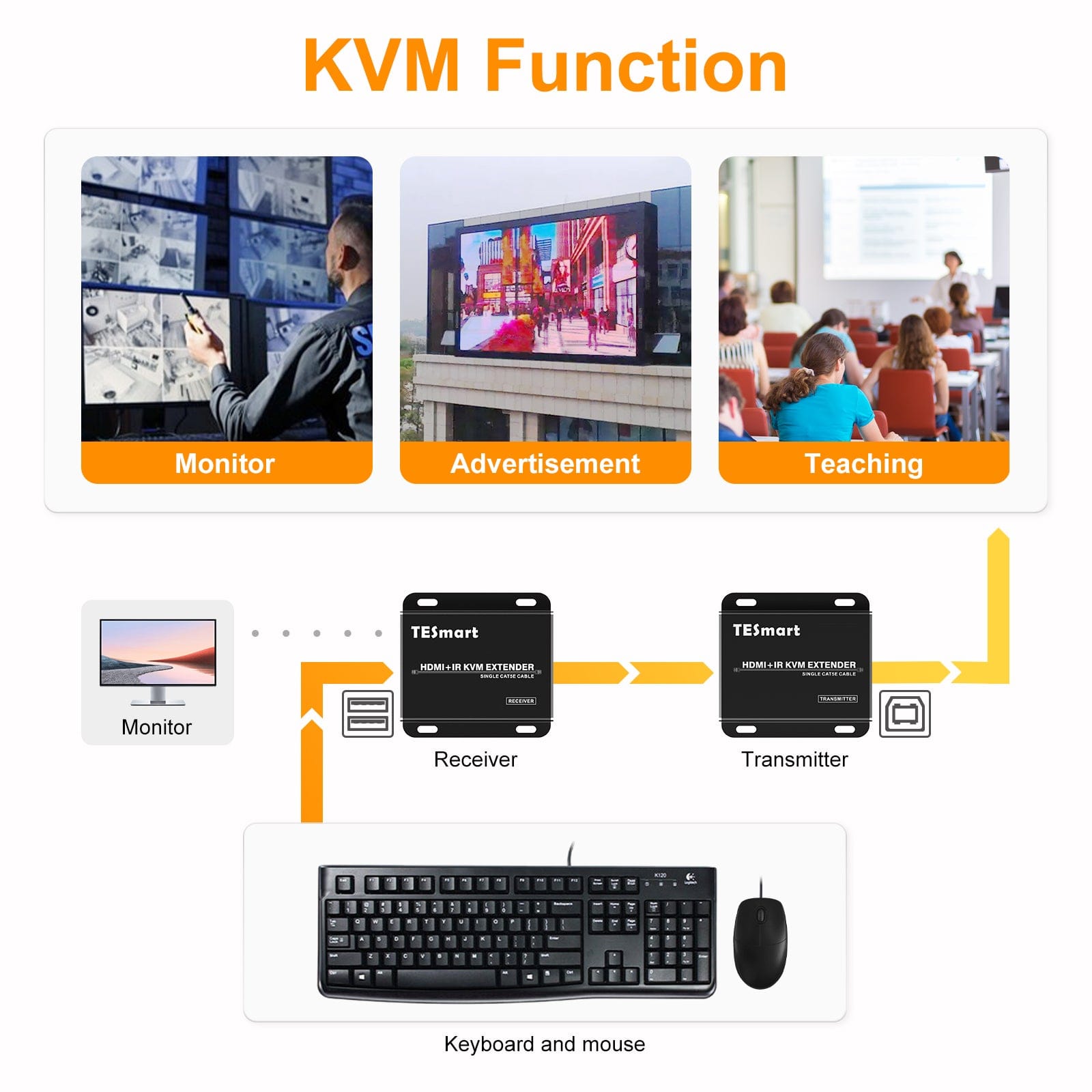

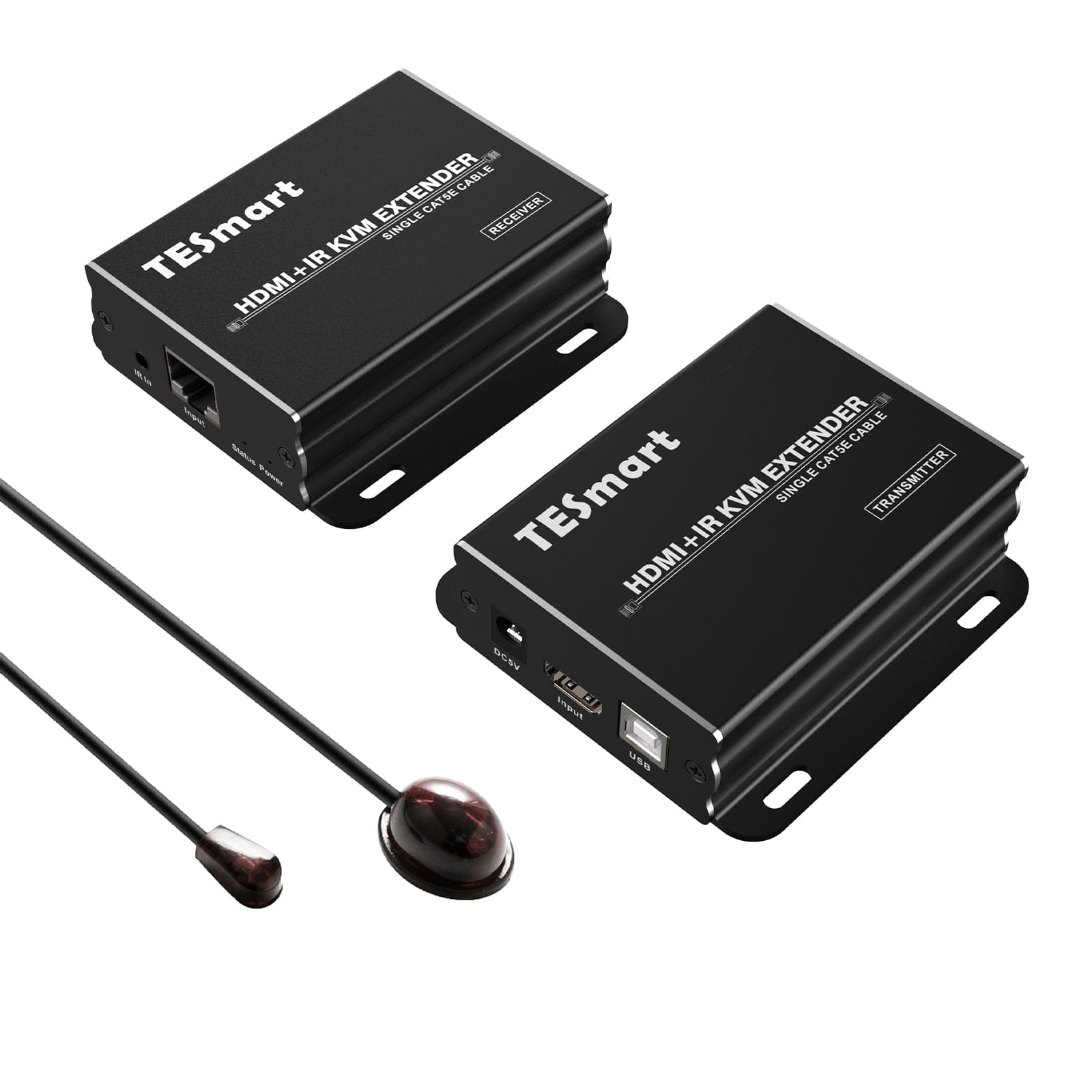

This KVM IR extender let you could control a PC via a set of keyboard and mouse from up to 50m away over a single Cat 5e/6 cable connection, with uncompressed and stable 1920*1080@60Hz HDMI video, and with EDID pass-through technical to best compliant with different display devices.
Key Features:
⚫ Unkomprimiertes und stabiles 1920*1080@60Hz FHD Video Extension:
Automatische intelligente Verstärkungsregelung zur Anpassung der Signalstärke für eine stabile Videoübertragung innerhalb von 50 Metern.
Automatische intelligente Verstärkungsregelung zur Anpassung der Signalstärke für eine stabile Videoübertragung innerhalb von 50 Metern.
⚫ IR-Pass-Through:
Mit dem IR-Pass kann das Abspielgerät auf der Empfangsseite über LAN ferngesteuert werden.
Mit dem IR-Pass kann das Abspielgerät auf der Empfangsseite über LAN ferngesteuert werden.
⚫ EDID Pass-Through:
Mit EDID-Pass-Through über LAN, für beste Kompatibilität mit den meisten Anzeigegeräten.
Mit EDID-Pass-Through über LAN, für beste Kompatibilität mit den meisten Anzeigegeräten.
⚫ ESD-Schutz:
Unterstützt ±8kV (Luftspaltentladung) ESD-Schutz zum Schutz Ihres Geräts.
Unterstützt ±8kV (Luftspaltentladung) ESD-Schutz zum Schutz Ihres Geräts.
Specifications:
⚫ Use a single UTP cable (CAT5e/6, should follow EIA/TIA 568B standard) to substitute
HDMI cable to extend the longer transmission distance
⚫ Support 1080P 60Hz resolution transmission via UTP cable up to 50 meters
⚫ Support EDID pass-through via LAN, for best compliance with most display devices
⚫ With IR pass though, the playback device can be remotely controlled at the receiving
end via LAN
⚫ Support TMDS equalization and enhancement
⚫ By transmitting keyboard and mouse data via LAN, it is easy to control a PC remotely
⚫ Support 8KV ESD protection
You may also like
Recently viewed
Overview
This KVM IR extender let you could control a PC via a set of keyboard and mouse from up to 50m away over a single Cat 5e/6 cable connection, with uncompressed and stable 1920*1080@60Hz HDMI video, and with EDID pass-through technical to best compliant with different display devices.
Comparison Chart of Related Products
Model SKU | HKS0403A1U | HKS0402A1U | HKV0402A1U | HKS0802A1U |
---|---|---|---|---|
Input Port | ( HDMI+HDMI+HDMI+USB ) × 4 | (HDMI+HDMI+USB ) × 2 | ( VGA+HDMI+USB ) × 2 | ( HDMI+HDMI+USB ) × 4 |
Output Port | HDMI × 3 | HDMI × 2 | HDMI × 2 | HDMI × 2 |
Support Resolution | 4K@60Hz | 4K@60Hz | HDMI:4K@60Hz VGA:1080P@60Hz | 4K@60Hz |
Display Mode | Extended, Mirrored or Spliced Display | Extended, Mirrored
or Spliced Display | Extended or Mirrored | Extended, Mirrored or Spliced Display |
HDMI Version | 2.0 | 2.0 | 2.0 | 2.0 |
HDCP Version | 2.2 | 2.2 | 2.2 | 2.2 |
Audio Port | L/R Port × 2 | L/R Port | L/R Port | L/R Port × 2 |
Mouse Gesture Mode | × | × | × | ✓ |
Pass-through Mode | ✓ | ✓ | ✓ | ✓ |
EDID Emulation | ✓ | ✓ | ✓ | ✓ |
Switch Way | Button & IR remote & Hotkeys & RS232 serial commands or IP commands | Button & IR remote & Hotkeys | Button & IR remote & Hotkeys | Button & IR remote & Hotkeys |
