PKS0802A10-USBK

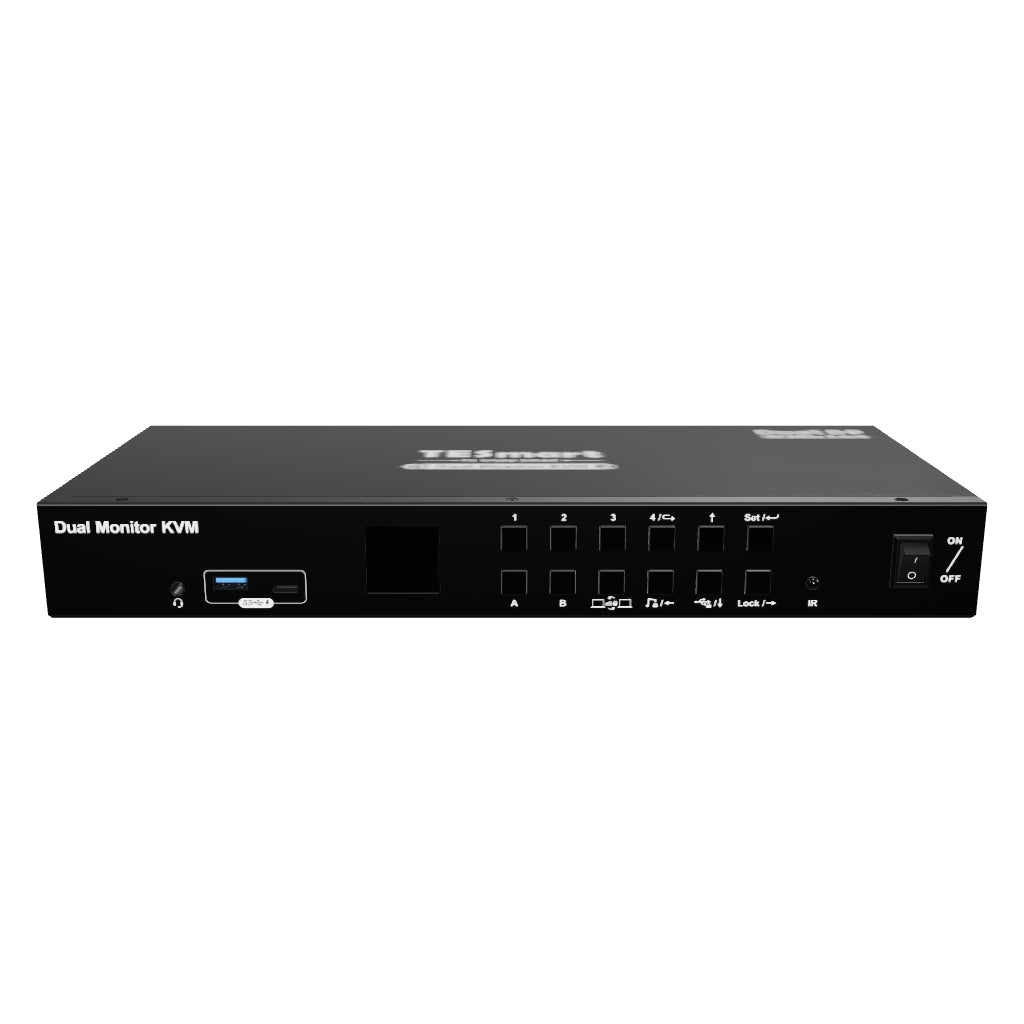

4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading

$359.99
$359.99
Shipping calculated at checkout.
  • The KVM switch comes with complete PC cables. 4* DP/USB + 4* DP cables (for the second monitor) to the computers are included.
  • High resolution up to 3840*2160@60Hz 4:4:4 on each monitor, DisplayPort 1.2 compliant.
  • Using only 1 set of keyboard, mouse, and 2 monitors to control 4 computers, support keyboard and mouse seamless switching and pass-through mode.
  • Support 2 display modes: Mode 1 for extended desktop and Mode 2 for split desktop (each computer displays on 1 monitor simultaneously).
  • Realize quad monitor display through cascading with DCCI.
  • Using front panel button, keyboard hotkeys, IR remote control and RS232 multiple switching methods to control KVM.
  • This version does not support EDID, please contact the customer service team for more information.

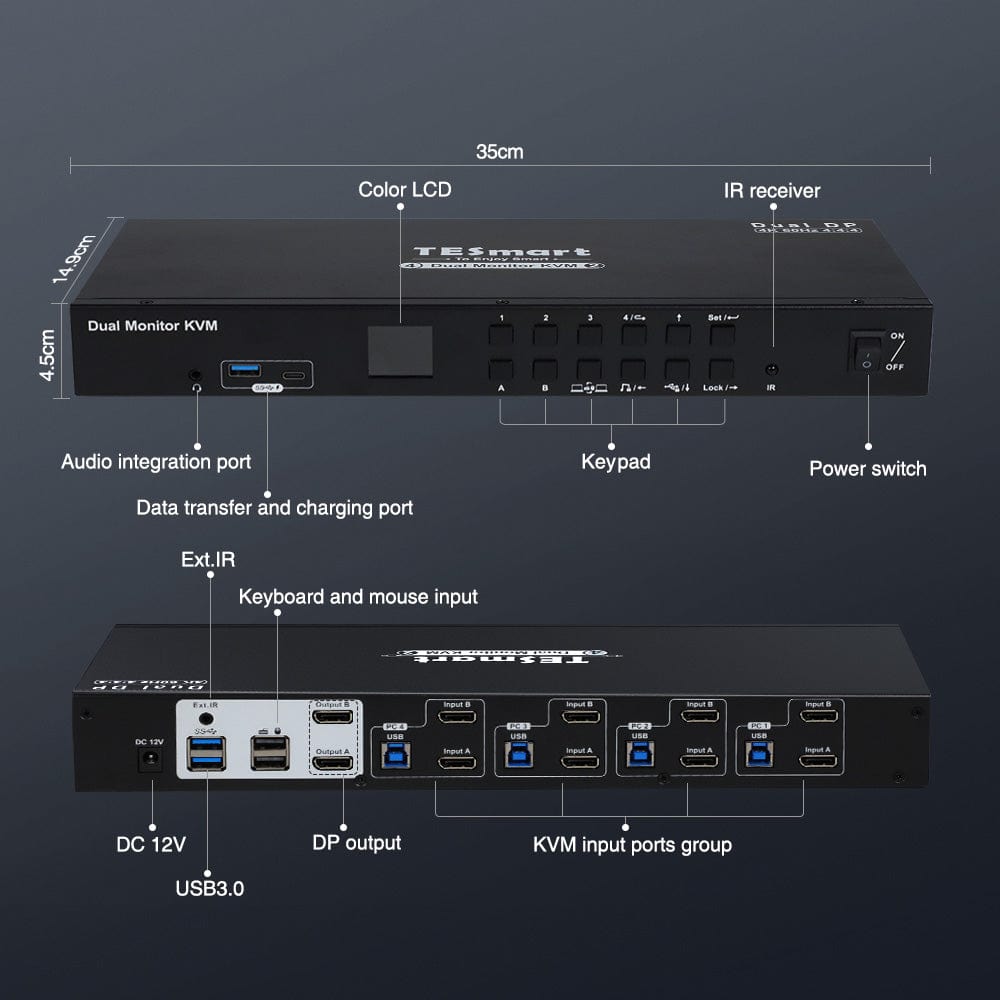

Plug Type
Check if the product's ports match your device.
  • Number of connectable computers: 4
  • Number of connectable monitors: 2
  • Type of input port(s): 4X (DP+DP+USB-B)
  • Type of output port(s): DP + DP
  • Max Resolution: 4K@60Hz
    TESmart
    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading
    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading
    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading
    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading
    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading
    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading
    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading
    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading
    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading

    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading
    $359.99
    $359.99

    Tech Specs

    Description

    DP Dual Monitor KVM Switch can easily integrate cross-platform computer devices. Our Dual Monitor KVM Switch can help you add more inputs to your TV or AV receiver if you have too many devices to manage. Each input device requires 2 DisplayPort inputs to display to 2 monitors. Support 2 display mode, you can choose any connected PC to duplicate or extend to 2 monitors, or switch any PC to display on any monitor at will. Support DCCI, you can extend the connected PCs to up to 4 monitors using 2 of this KVM Switch. Supports using USB hubs and USB keyboard and mouse. You can connect a printer, USB drive, bar code scanner or other USB 2.0 devices to this KVM. This product also supports several other switching modes. You can switch input ports with front panel button, IR signals and keyboard hot keys.

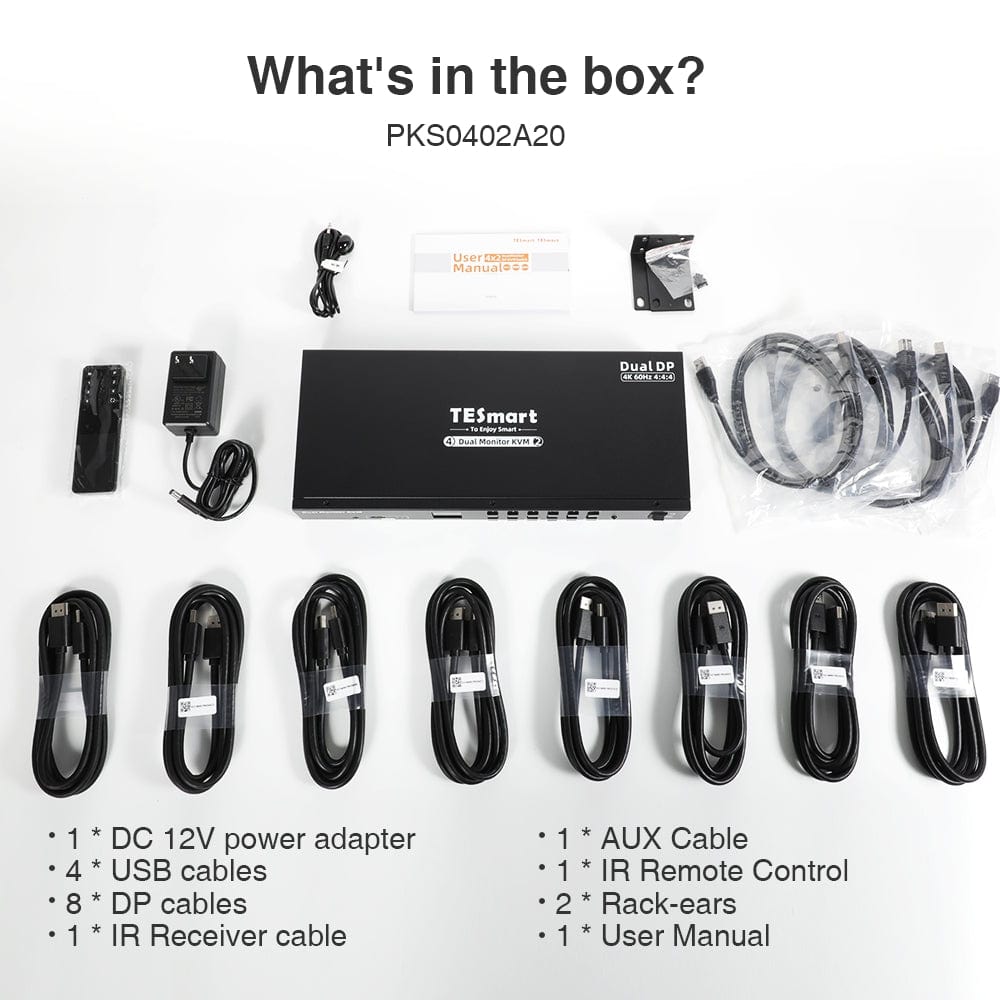

    Packing List
    • 1 * 4x2 Dual Monitor DP KVM Switch
    • 4 * USB Cables
    • 8 * DP Cables
    • 1 * IR Receiver Cable
    • 1 * AUX Cable
    • 1 * DC 12V Power Adapter
    • 1 * 3 Pins Connector (For RS232)
    • 1 * IR Remote Control
    • 2 * Rack-ears
    • 1 * User Manual
    Key Features
    • Using only 1 set of keyboard, mouse and 2 monitors to control 4 computers.
    • Support 2 monitors to display the desktop of 1 computer or to display 2 desktops at the same time.
    • Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux basic system.
    • Support resolution up to 3840*2160@60HZ.
    • Support hot plug, disconnect or connect devices to the KVM at any time without turning off PC.
    • Support front panel button, keyboard hotkeys, IR remote control and RS232 to control KVM.
    • Available to use keyboard and mouse without any delay after switching input sources.
    • With extra USB 2.0 port, it is possible to connect bar code scanner, USB hard device or other USB device.
    • Support keyboard and mouse pass through mode to improve KVM compatibility .
    • Support auto switch to monitor computers in a specified time interval.
    • Support DCCI.
    Support Systems

    Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based systems.
    Safety Measures
    • Please use 12V power supply for product installation. Using the wrong power supply can cause damage to the product and even to your equipment.
    • Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.
    • If product has an exposed circuit board, do not touch the product under power.

    Features

    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading
    $359.99
    $359.99

    4 Port Dual Monitor KVM Switch DP 4K60Hz with Cascading
    $359.99
    $359.99

    Compare Products

    Customer Reviews

    Based on 13 reviews
    100%
    (13)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    L
    L. Hickman
    Outstanding KVM

    I can control 4 computers with one keyboard, mouse and display on 2 monitors....I can even use my webcam which is shared between all 4 computers without changing anything. The front button switches are tactile and well made. Overall, a great addition to the home office. 5 star support.

    A
    Antwon Soup
    Great

    Came with everything I could have possibly needed, including four displayport cables. Set everything up and it works perfectly

    M
    Mark D.
    Works perfectly for me, a great solution for my work area

    Great product, I don't think there is much similar thing on the market. It is working great with a 4k and 2k monitor, keyboard, mouse and Logitech camera. Linux, windows, old mac pro and mac laptop. Five stars for this excellent product.

    J
    Justin N
    It works ! Hallelujah.

    So yes, I'm a Mac and Windows guy. I love my Mac and use it for almost everything. However, for work, I do have to use a Window's machine. Do you know how hard it is to get everything working as it should without doubling everything ?

    Well, this TESMART KVM was the trick ! I am ecstatic about my KVM. It works as described ! Now, I have 4 machines connected to my KVM sharing a mechanical keyboard, a mouse, a speaker, a mic, and a camera !

    Why 5 stars?
    1. Ease. plug things in as described. Essentially, for every computer you want to have duo monitor view, connect two monitor outs to each monitor in AND one usb cable for data.
    2. Effectiveness. Using this KVM will mean you can share your common A/V equipment between all your machines. You won't need two cameras, two pics, two sets of speakers. There's no last minute swapping of connections to use any peripheral on a different machine. The KVM will take care of this !
    3. No fuss. While TESMart has tried to offer a lot of troubleshooting steps if you run into a hiccup, really, if you follow the video instructions, you won't have an issue.
    4. Brands like ioGear and others may have a name that you can recognize but their products are haphazard implementations that don't offer the flexibility of the TESmart. TESmart recognizes that Macs do not honour the DisplayPort MST interface so KVMs cannot rely on a DP MST connection between monitors to create duo monitor setups that include Macs!

    Well done TESmart ! Thank. you for making my setup more pleasant. Hmmm, now to organize these 16+ cables :-p

    N
    Nonio
    Just what I was looking for!

    I really like this kvm. Bought this for the home office, now I can easily switch between work and home computers on dual screen setup. It really cleaned up my workbench.
