HKS0403A1U-USBK

4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone

Regular price
$599.99
Regular price
Sale price
$599.99
Shipping calculated at checkout.

Latest upgrade:

  • 3 USB 3.0 (including 1 USB C), 2 of which are able to charge.
  • Newly added a LAN port to ensure that all 4 computers are connected to the network through RJ45.
  • Newly added an integrated microphone and L/R audio output.

About this item:

  • Share up to 4 desktops or laptops with one set of keyboards, mice, and triple monitors.
  • Triple monitor outputs support high resolution up to 3840x2160 (4K) @60hz, 3440x1440@100hz, and 2560x1440@144hz for work, video, and gaming purposes. Support 3D, HDR, HDCP, and Dolby Vision.
  • 3 advanced switching modes including keyboard hotkeys, IR Remote, and front panel buttons. Automatic scans with adjustable intervals for monitoring and testing.
  • EDID emulators in each input port ensure PCs always have the correct display information.
  • One-touch locking KVM to protect private information, with audio output pause and LCD screen brightness reduction.
  • LCD visual display for easy setup, equipped with 3 lockable USB 3.0 channels and 1 integrated microphone and L/R audio output.

Plug Type
Check if the product's ports match your device.
  • Number of connectable computers: 4
  • Number of connectable monitors: 3
  • Type of input port(s): 4X (HDMI+HDMI+HDMI+USB-B)
  • Type of output port(s): HDMI + HDMI + HDMI
  • Max Resolution: 4K@60Hz
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone

    Tech Specs

    Description

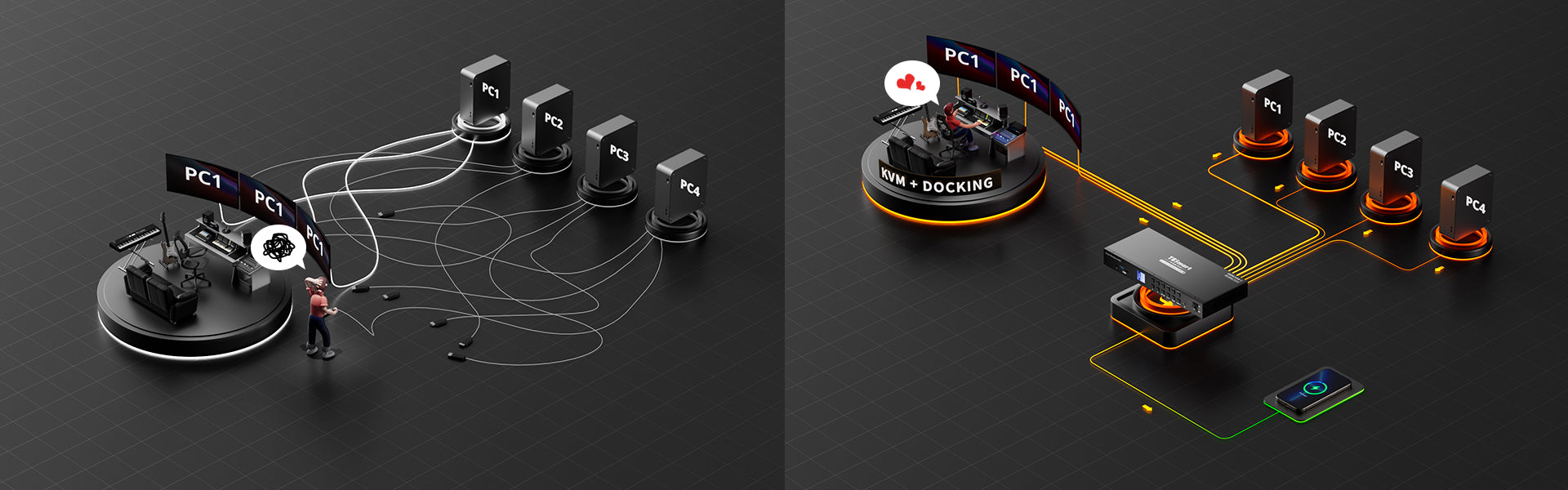

    This 4x3 Triple Monitor KVM Switch can easily integrate cross-platform computer devices and greatly simplify the devices management. Support managing a triple-display multimedia workstation. If you connect 3 HDMI ports of the same PC to one group of input ports on the KVM, you will realize 3-screen extended display or copy display. It has the same effect as connecting the PC directly to 3 displays. The KVM also supports displaying different PCs on 3 monitors. This KVM supports using USB hubs and USB keyboard and mouse. It also supports locking L/R audio and USB 3.0 devices to a fixed PC. Support several switching modes. You can switch input ports with front panel keypad, IR signals, keyboard hot keys. At the same time, with EDID emulators in each input port, it can keep PCs always having correct display information.

    Packing List
    • 1 * 4x3 Triple Monitor HDMI KVM Switch
    • 1 * DC 12V Power Adapter
    • 4 * KVM (HDMI+USB) Cables
    • 8 * HDMI Cables
    • 1 * IR Extension Cable
    • 1 * IR Remote Control
    • 2 * Rack-ears
    • 1 * User Manual
    Key Features
    • Using 3 monitors, 1 set of keyboard and mouse to control 4 computers.
    • Support resolution up to 3840x2160@60Hz 4:4:4.
    • HDMI 3.0 compliant.
    • HDCP 2.2 compliant.
    • Support HDR 10 and Dolby Vision.
    • Support 2 display modes.
    • Support Unix/Windows/Debian/Ubuntu/Fedora/MacOS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based systems.
    • Support locking L/R audio and USB 3.0 devices to a fixed PC.
    • With EDID emulators in each input port, it can keep PCs always having correct display information.
    • Support function settings on the front panel which can switch ports, turn on/off auto scan, change hot key trigger, lock audio and USB 3.0 and other functions.
    • Support keyboard and mouse pass through mode to improve mouse and keyboard compatibility.
    • Support IR signals, front panel buttons, keyboard hot keys to switch input ports.
    Support Systems

    Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux basic systems.

    Safety Measures
    • Please use 12V power supply for product installation. Using the wrong power supply can cause damage to the product and even to your equipment
    • Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.
    • If product has an exposed circuit board, do not touch the product under power.
    • Wiring terminations should not be made with the product and/or electric lines under power.

    Features

    Quick view
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone
    Regular price
    $599.99
    Regular price
    Sale price
    $599.99

    Quick view
    4 Port Triple Monitor KVM Switch HDMI 4K60Hz with USB 3.0 Hub, Headset, Audio&Microphone
    Regular price
    $599.99
    Regular price
    Sale price
    $599.99

    Compare Products

    Customer Reviews

    Based on 12 reviews
    92%
    (11)
    0%
    (0)
    0%
    (0)
    8%
    (1)
    0%
    (0)
    S
    Shannon Atkinson
    Consolidated a lot of KVM Switches into 1

    I've had this KVM from the day it was released. The flexibility it gave me using a triple monitor setup is great for everyone.

    Being a streamer, I can have my multiple screen setup and show each monitor a display from a combination of computers.

    This has saved me a lot of time and effort to show what I want when I want. I will probably buy another in the future.

    V
    Vasim Ahmed
    Great KVM

    I have been using this KVM for 4 Months now and this is one beast like non other.
    Feature Like Keep USB On One Host and Display and Key board on other is the most frequent feature I used

    Only one Note when I loose power and it comes back on with triple monitor setup I loose one Monitor and to get back to normal I need to disconnect all Host from KVM and add them one by one.

    I am sure they will release a fix for this in upcoming firmware updates

    J
    Joyleen Greene
    Had this about a year, wonderful performance and super easy to use!

    For my work I have 2 computers, for fun I have 1 computer and 3 SBC (single board computers)
    During work, I use 1 and 2 then for personal I use 3 best of all, working with my tiny computers I use 4 to monitor all three systems at the same time.

    I have 2 curved center monitors and a wall mounted 45" that are switched.

    Even for those with less than 6 systems, this is a great KVM. So glad I made this purchase.

    A
    Adam
    This is a terrific product

    Having multiple laptops and desktops used to be a pain to use but this device makes my life easier. Whether I want to use all three monitors for one computer or have different computers on each screen this device makes that possible. Read the instructions to learn how to use the hotkeys.

    The only thing I would want done differently is to have the ability to lock the sound on the remote rather than using the physical unit to do so. Other than that, this thing is terrific.

    A
    Andonis N Pothakos
    Does what i need it to do

    Works great so far. Everything was plug and play (mostly). Additionally, the tech support is excellent!
