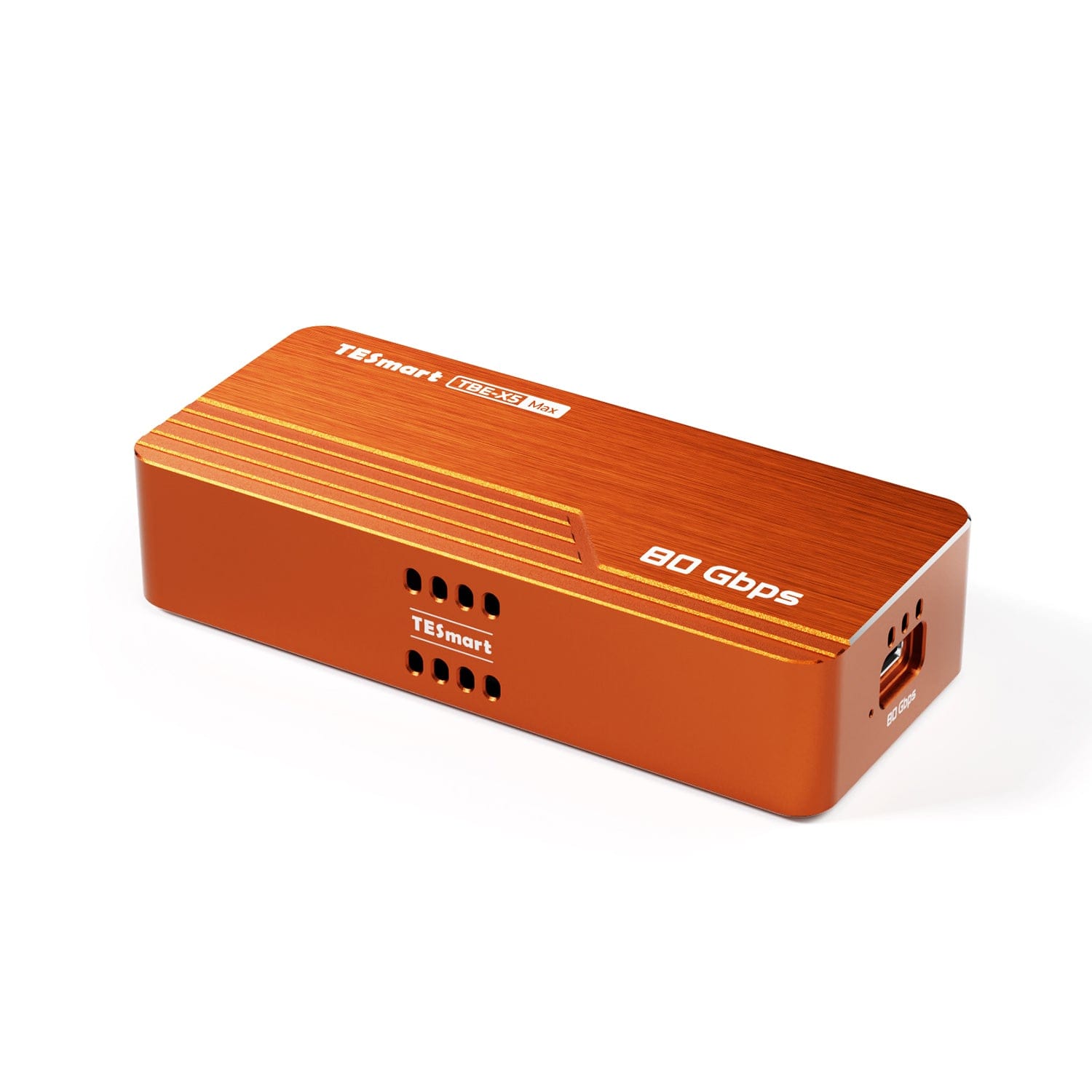

TBE-X5MAX
TBE-X5Max USB4 80Gbps PCIe 5.0 NVMe SSD Enclosure · Thunderbolt 5/4/3 & USB 3.x Compatible · Up to 7000 MB/s
- Regular price
-
$415.00 - Regular price
-
- Sale price
-
$415.00
Overview & Key Features
- Model: TBE-X5Max
- 80 Gbps Bandwidth · Real-World Speed Up to 7000 MB/s
- Dual-Chip Design: Intel JHL9480 (B2) + ASM2364
- Compatible with Thunderbolt 5 / 4 / 3 and Full-Speed USB 3.x Ports (20 Gbps)
- Supports PCIe 5.0 / 4.0 / 3.0 NVMe SSDs · Up to 8 TB (2280)
- Tested with Samsung 9100 Pro, WD SN8100, TiPro 9000, Crucial T700, Lexar NM1090 Pro, Samsung 990 Pro and more — including Apple M4 Series (MacBook Pro / Mac mini) for full-speed stability
- Quad-Cooling System · Smart PWM Fan · All-Aluminum Body — TESmart Signature Design
What's in the box
Packing List
1 * 80Gbps SSD Enclosure
1 * 80 Gbps USB-C Cable
1 * User Manual
2 * Silicone Thermal Pad
1 * Screwdriver
Downloads & Manual
Couldn't load pickup availability
| Country or Region | Estimated delivery time | Freight | postman |
| United States (excluding Alaska and Hawaii) | 3-5 working days | Free Shipping | UPS/USPS/FedEx/uniuni |
| U.K. | 3 working days | UPS/DPD | |
| Canada | 3-5 working days | Purolator/UPS | |
| China (Macao SAR, Hong Kong SAR, Taiwan) | 1-3working days | Starting at $30 | SF Express |
| Australia, New Zealand, Saudi Arabia, United Arab Emirates, Israel, Alaska, Hawaii | 5-12 working days | Starting at $60 | DHL/FedEx/UPS |
| Singapore, Malaysia, Philippines, Thailand | 5-12 working days | Starting at $30 | DHL/FedEx/UPS |
-
Orders cannot be canceled or modified once placed due to automated processing.
-
If a return is needed, contact service@tesmart.com within 30 days of delivery. Items must be in original condition with all packaging and accessories.
-
Return shipping for non-quality issues is the customer’s responsibility.
-
Products from third-party retailers
-
Items damaged by misuse
-
Order number, proof of purchase
-
Photos/videos (if defective), full shipping address, and phone number
-
Within 30 days: Refunds/returns accepted for both quality and non-quality issues
-
30 days–1 year: No returns/refunds; repair or replacement may be offered
-
1–3 years: No returns/refunds; replacement or Upgrade /trade-in up to 50% discount after 3 months (members only)
-
Hand-picked gifts designed to enhance your KVM experience
-
Exclusive to official store customers
-
Choose the one that best fits your setup
- Select your KVM.
- Pick 1 free accessory in the section below (you can change it if you like).
- Add to cart and check out together.
The return and refund policy process overview is shown below. For the full policy, please refer to the Full Policy page below.
1.Order Cancellation & Modification
-
To ensure timely delivery for every customer, TESmart’s order and shipping system is fully automated. Most orders are processed and dispatched within a few hours, and always within 24 hours depending on warehouse workload. Customers may cancel an order at any time before it ships, including within our 30-day cancellation window. Once an order has shipped, it can no longer be canceled or modified.
-
Please kindly contact us within 30 days of delivery at service@tesmart.com, If you wish to return a product after receiving it, ensure the product and packaging are undamaged and in original condition.
-
⚠️ Return shipping costs for non-quality issues are the responsibility of the customer. For more details, please kindly see below.
2.Return Process
2.1 Return Conditions:
-
Products must be returned in original packaging, including all accessories, manuals, and documentation.
2.2 Items Not Eligible for Return:
-
Products purchased from third-party retailers.
-
Products damaged due to misuse or improper handling by the customer.
2.3 Return Request:
-
Order number
-
Proof of purchase
-
Photos or videos of the defective product (to speed up processing)
-
Full shipping address
-
Contact phone number
2.4 Processing Time:
-
Our support team will respond to your return request within 48 hours and provide the return warehouse address in your country/region.
-
For certain countries/regions (e.g., the U.S., Germany, and the EU), we may provide a prepaid return label after confirming your address to expedite the return/refund process.
2.5 Return Address:
- Please contact our customer service at service@tesmart.com before returning the product. Once confirmed, you may send the item to the designated TESmart return warehouse.
- Unit 108, 8333 Rochester Ave
STX-X166
Rancho Cucamonga, CA 91730
United States
2.6 Warehouse Inspection:
-
Upon receipt, TESmart will inspect the returned item(s).
3. Refund Process
3.1 Refund Trigger:
-
Once the returned product is received and inspected by our warehouse, the refund process will begin.
3.2 Refund Timeframe:
-
Refunds will be processed within 5 business days after the return is received.
3.3 After-Sales Categories:
3.3.1 Within 30 days of delivery:
-
The product is in its original packaging with all accessories.
-
Return photos are provided before shipping.
-
Non-quality issues: Return and refund supported within 30 days. Return shipping is the customer’s responsibility.
-
Quality issues: Return and refund supported within 30 days. Return shipping is covered by TESmart.
3.3.2 From 30 days to 1 year after delivery (warranty period):
-
Return/refund not supported. Please email service@tesmart.com to contact our after-sales support team.
-
After evaluation by our technical team, we may offer product repair or replacement with the same model.
-
To ensure timely service, we prioritize replacements.
3.3.3 From 1 to 3 years after purchase (for VIP Members) :
-
Return/refund not supported.
-
You may contact our after-sales support team for replacement of the same model.
-
If you wish to upgrade the product after 3 months from purchase, members may Upgrade & Trade-in up to 50% discount off the original order’s paid amount toward your new purchase.
For detailed terms and conditions, please visit: https://www.tesmart.com/pages/tesmart-id-trade-in
4. After-Sales Support & Issue Resolution
4.1 Contact Information:
-
For any questions or support requests, please contact TESmart Customer Service: 📧 service@tesmart.com
4.2 Delayed Refunds (if you haven’t received a refund after 5 business days):
-
Check your bank account (ensure it is the one used for the purchase).
-
Contact your card issuer (credit/debit card providers may experience processing delays).
-
Contact your bank to confirm the transaction status.

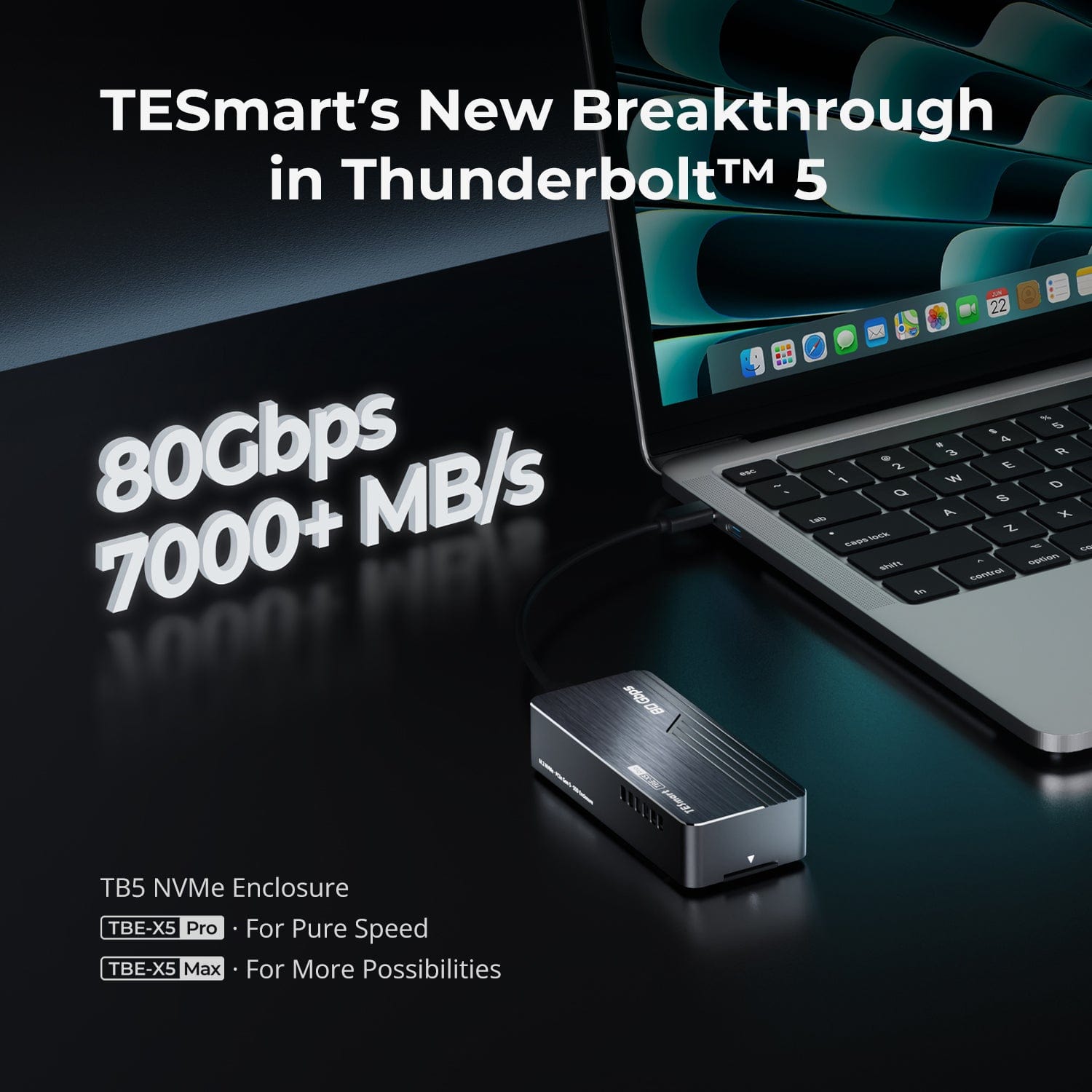

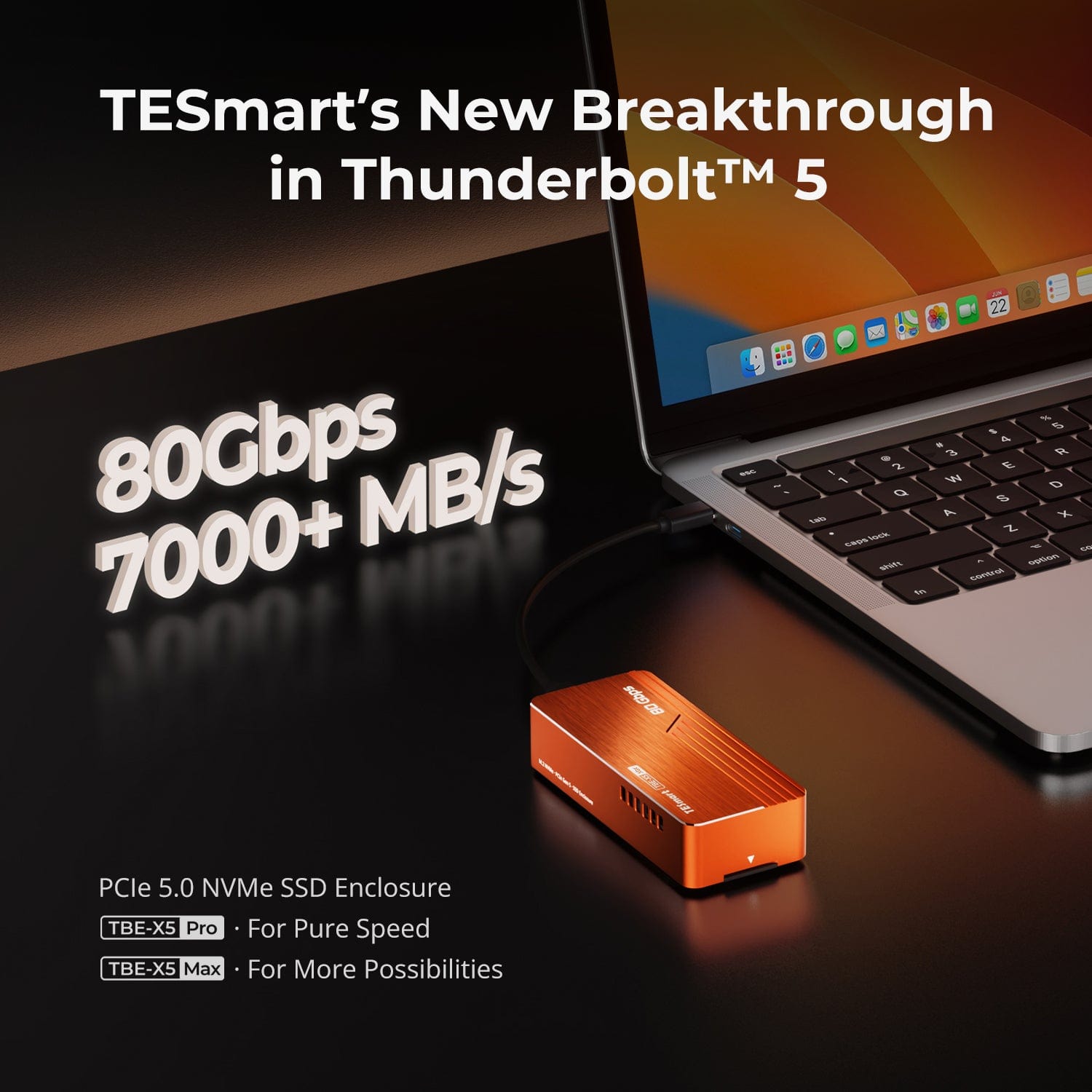

TESmart’s New Breakthrough in Thunderbolt™ 5
Up to 7000 MB/s · 80 Gbps
7000 + MB/s
Quad-Cooling, Max Speed
Compatible with M.2 NVMe SSD
For Geeks, By Geeks · 7000 + MB/s · 80 Gbps
Built on the latest Intel JHL9480 (B2) Thunderbolt™ 5 controller, the TESmart X5 Series redefines external storage speed.
- Up to 7000 MB/s real-world throughput — twice the bandwidth of Thunderbolt 4.
- Designed for creators, engineers, and gamers who demand instant data access.
- PCIe 5.0 ×4 NVMe architecture ensures zero bottleneck performance.
Whether you’re editing 8K video, rendering 3D assets, or transferring TB-sized datasets, the X5 Series delivers pure speed without compromise.
TBE-X5Max · JHL9480 (B2) + ASM2364 · Dual-Chip Design
TBE-X5Max pushes Thunderbolt™ 5 performance even further with a dual-controller architecture engineered for versatility and sustained throughput.
- Intel JHL9480 (B2) manages Thunderbolt™ 5 / 4 and USB4 signal paths with full-bandwidth stability.
- ASM2364 bridge chip expands compatibility to legacy USB standards, including USB 3.2 Gen 2×2 (20 Gbps), USB 3.1, USB 3.0, and USB 2.0 — no adapters required.
- Fully supports PCIe 5.0 / 4.0 / 3.0 NVMe SSDs for up to 7000 MB/s read speed.
This dual-chip synergy delivers the perfect balance between raw speed and broad device support, ensuring consistent high-speed transfer across every platform.

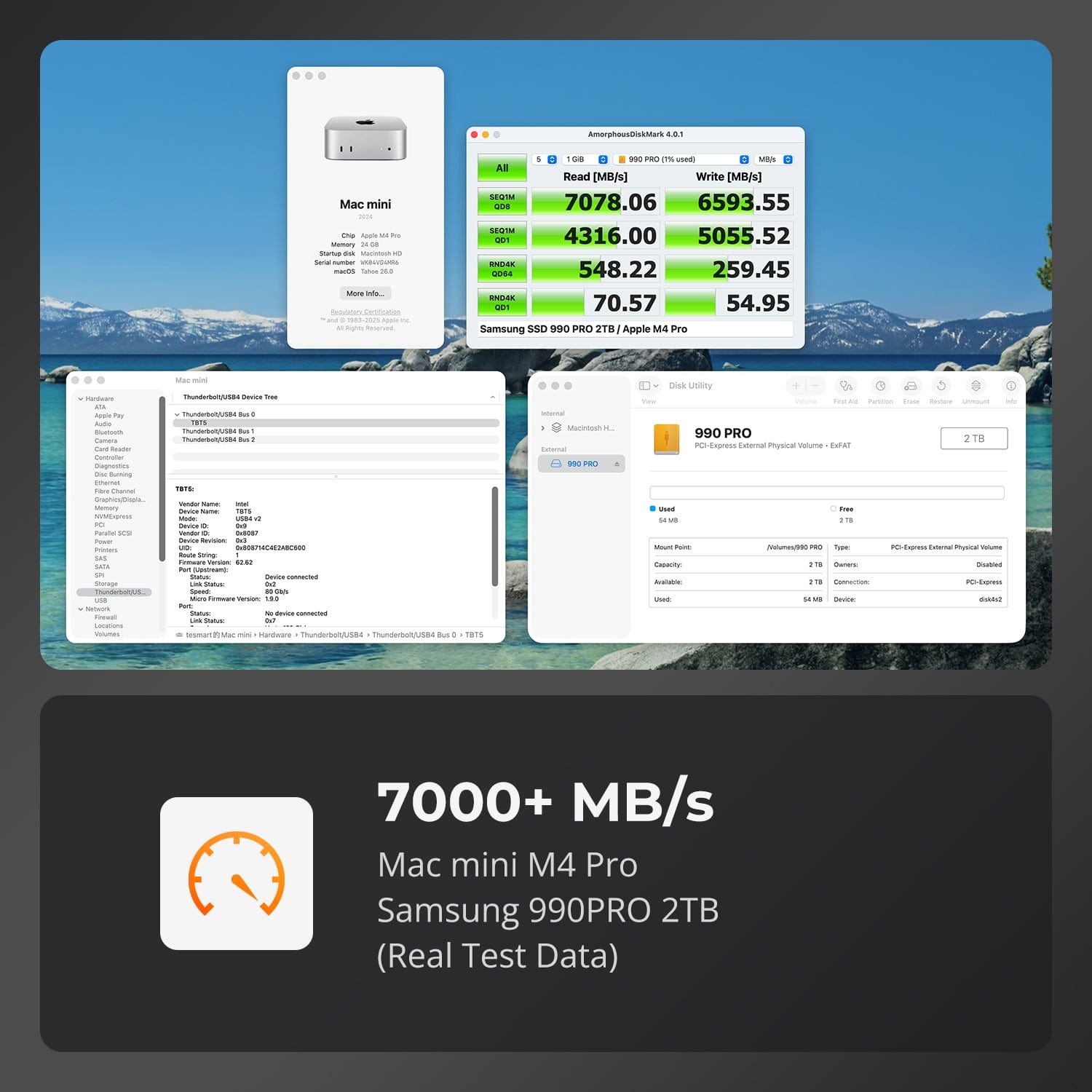

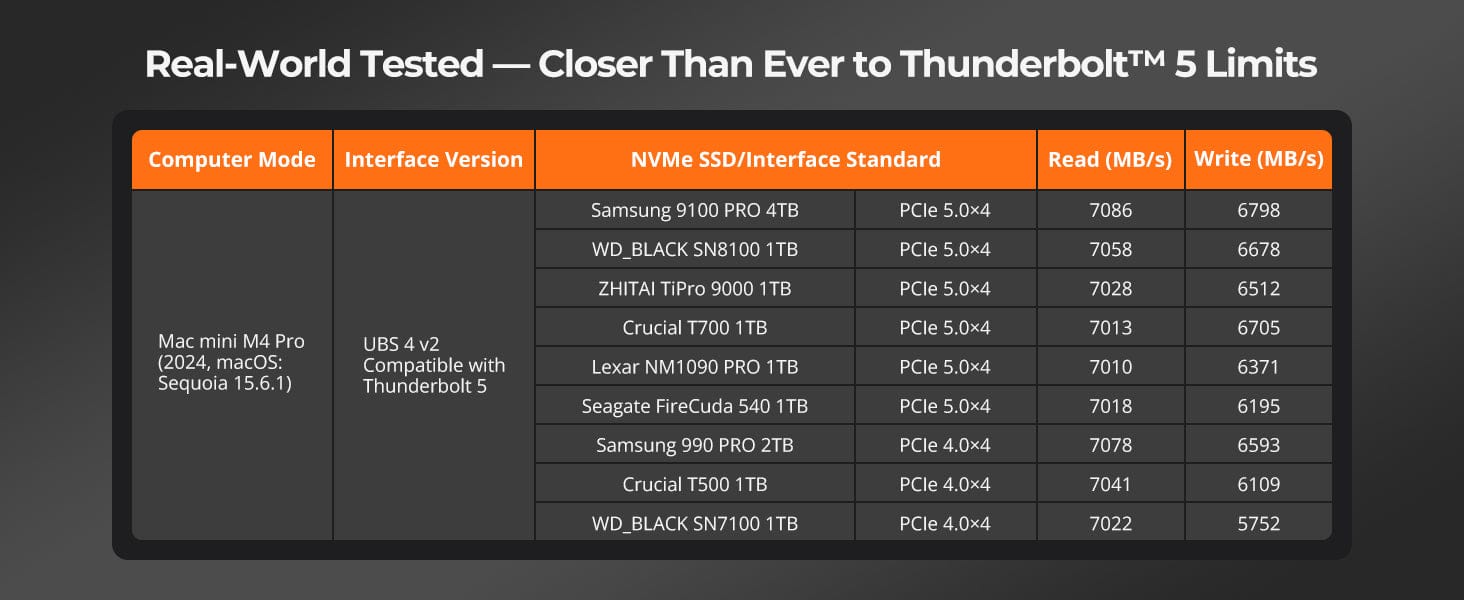

Mac mini M4 Pro + Samsung 990 PRO 2 TB (Real Test Data)
Real testing shows the X5Pro consistently achieving over 7000 MB/s read and 6600 MB/s write on PCIe 5.0 SSDs.
- Tested under sustained load for > 10 minutes without thermal throttling.
- Demonstrates how close real-world performance is to Thunderbolt™ 5’s theoretical limit.
Your drive’s only limit is the SSD inside it.

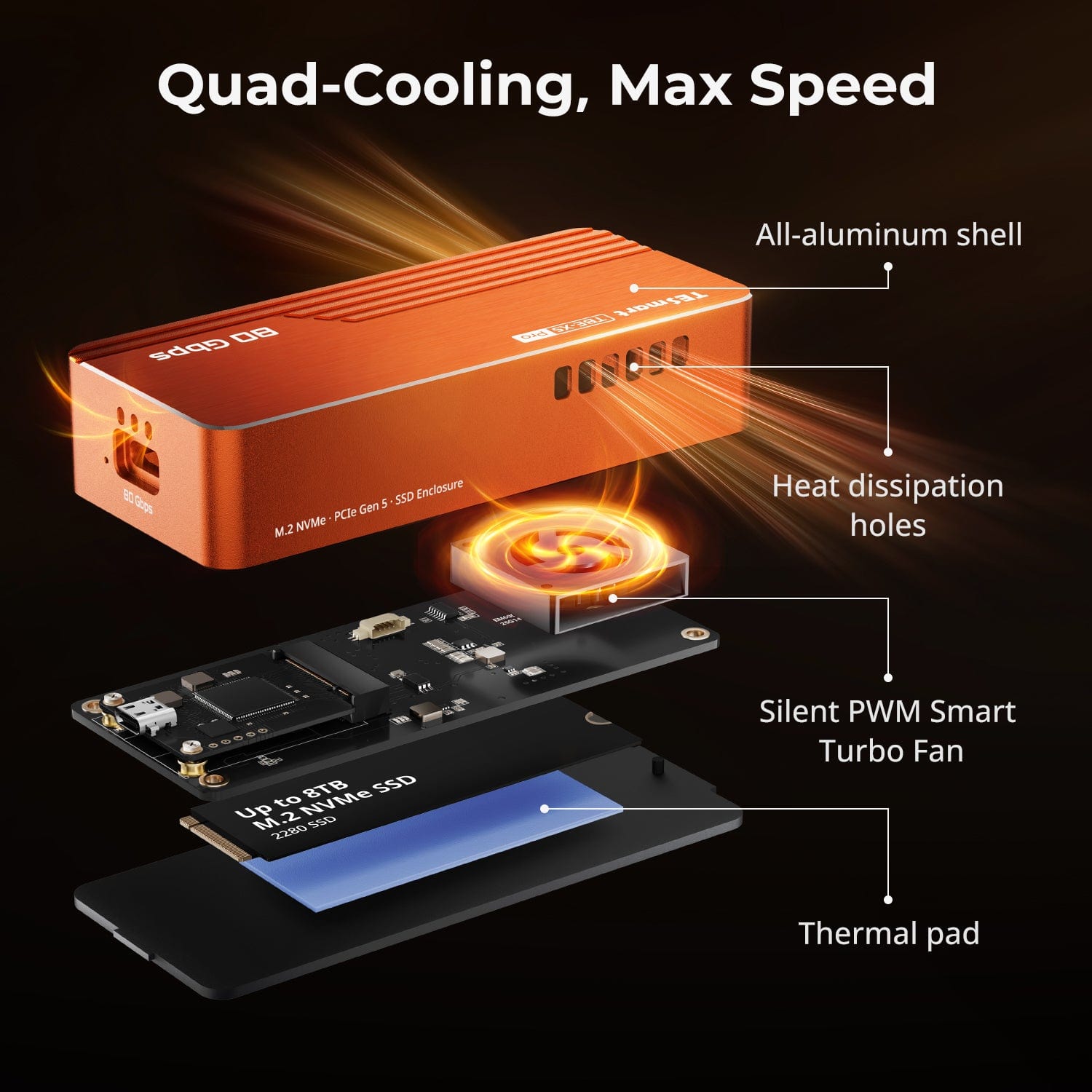

Performance means nothing without thermal control. TESmart’s quad-layer cooling design keeps peak speed sustainable.
- Full aluminum shell for direct heat conduction.
- Precision ventilation holes, optimized through 100+ airflow simulations, maintain a stable cooling channel.
- Silent PWM Smart Turbo Fan adjusts speed intelligently.
- High-efficiency thermal pad ensures continuous thermal transfer.
After hundreds of wind-tunnel tests, the result is a perfectly balanced airflow system that sustains top speed without noise or throttling.

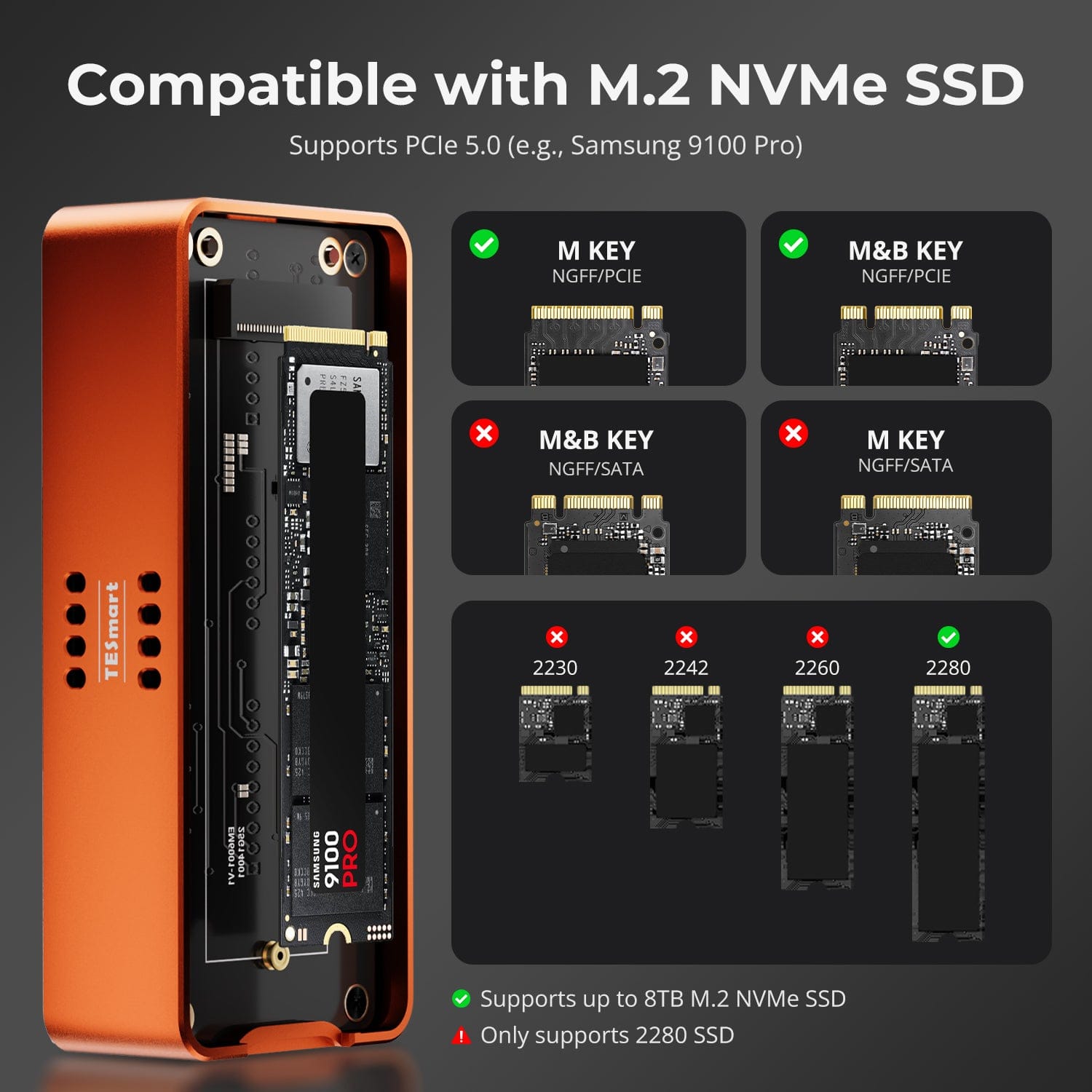

Supports PCIe 5.0 (e.g., Samsung 9100 PRO)
Engineered for the latest M.2 NVMe standards.
- Accepts PCIe 5.0/4.0/3.0 x4 M.2 2280 SSDs (up to 8 TB).
- Optimized pin mapping ensures full-lane performance without bottlenecks.
⚠ Only supports 2280 form factor drives.

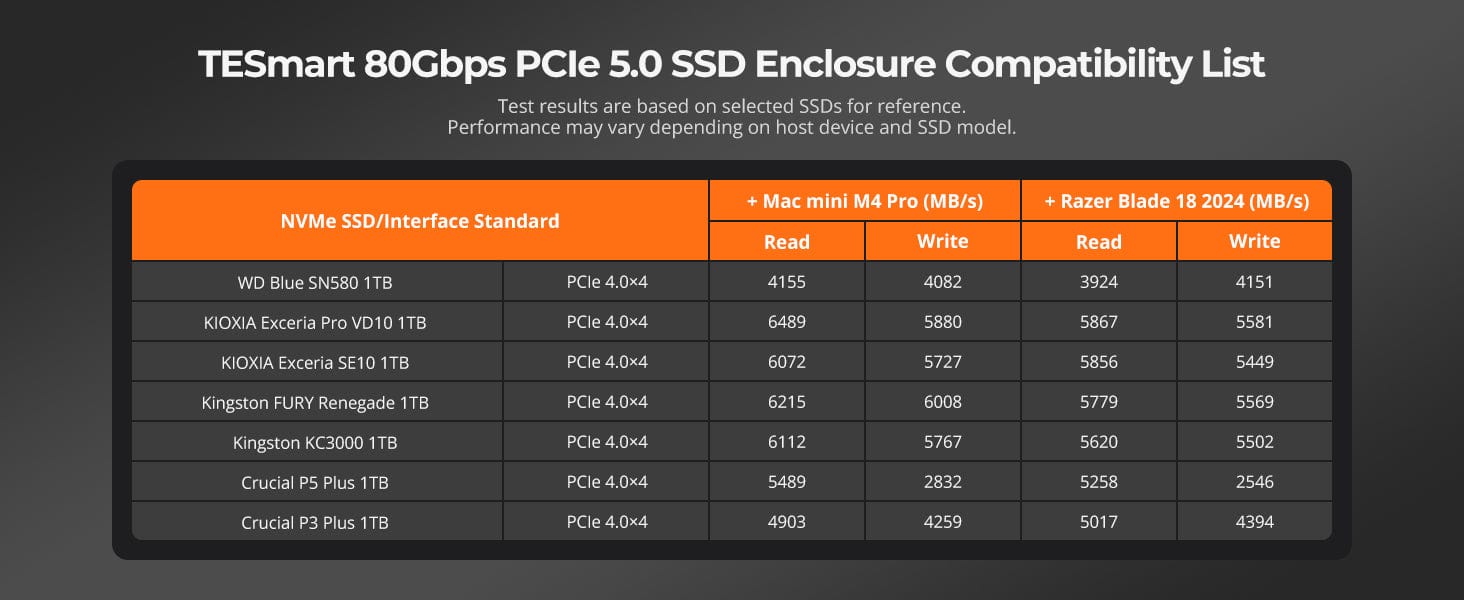

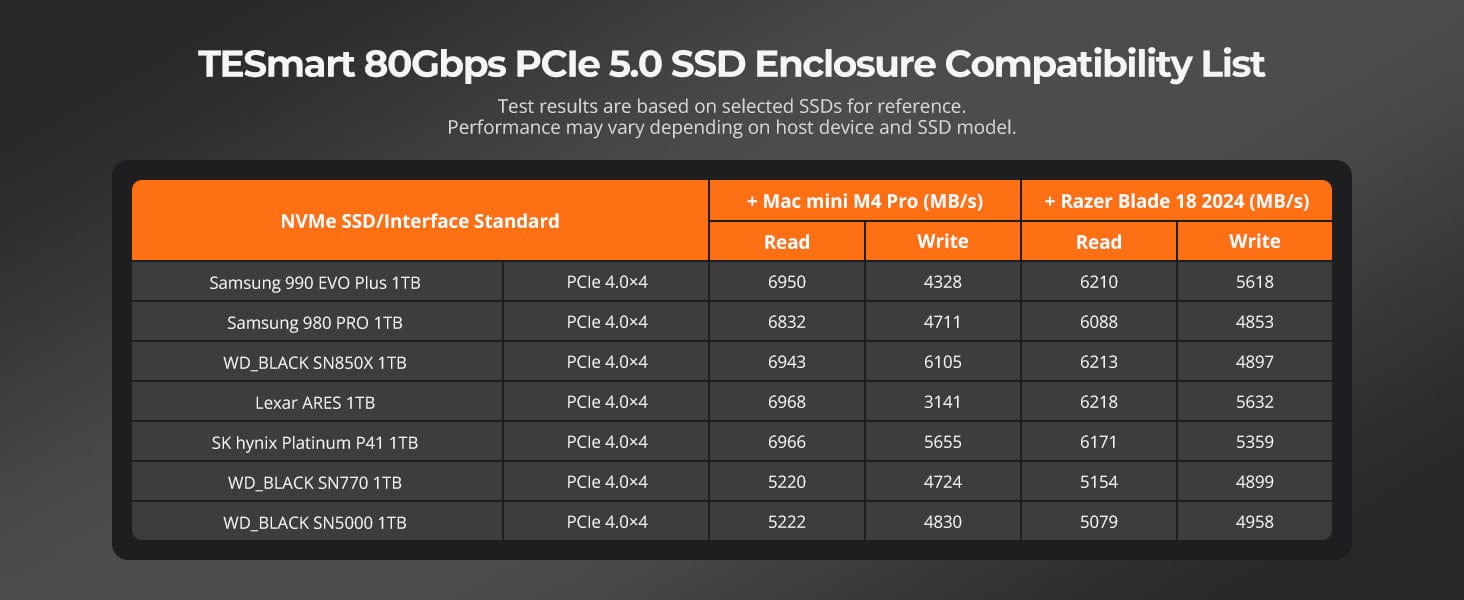

Every X5 enclosure is bench-tested to guarantee compatibility and stability with top-tier SSDs.

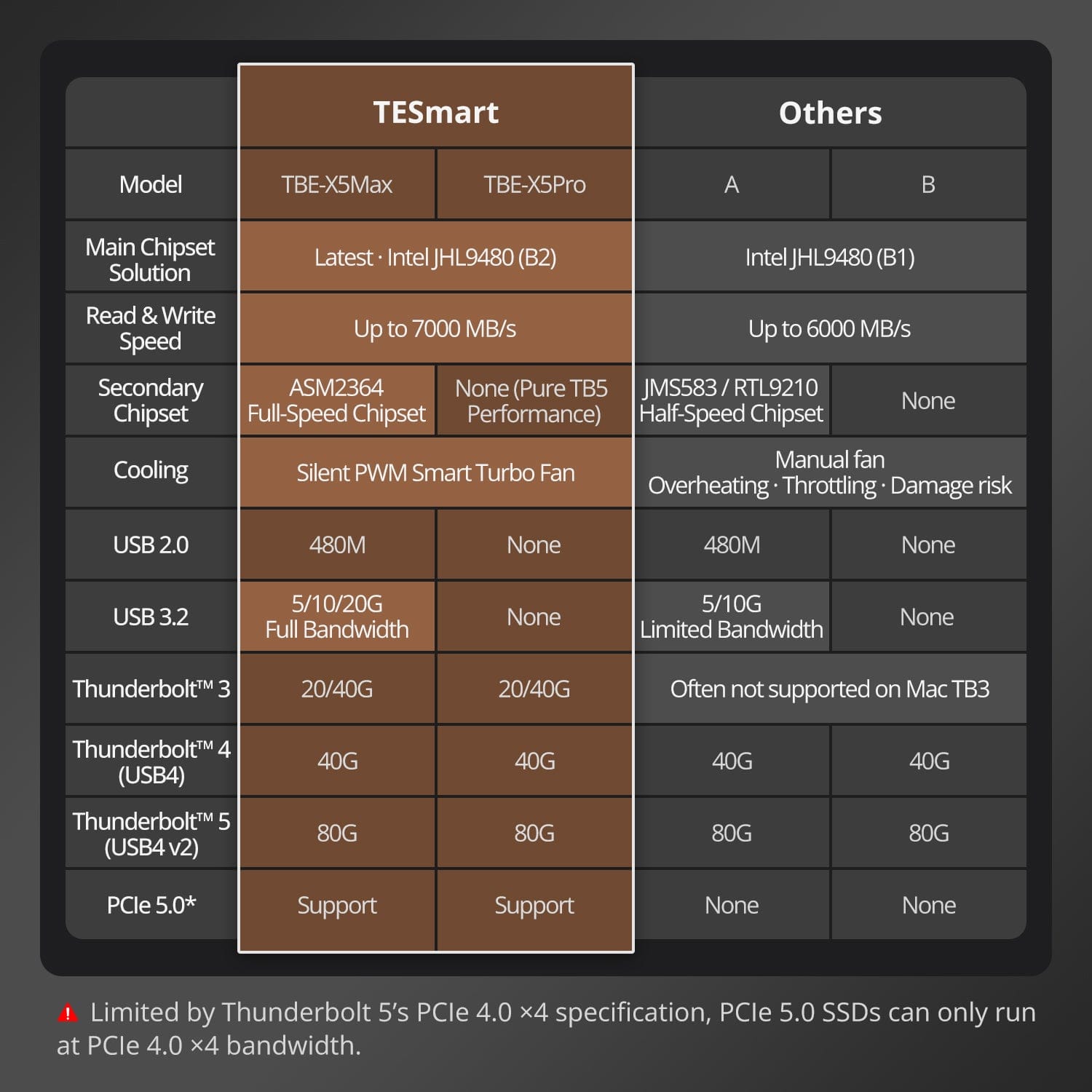

TBE-X5Pro vs TBE-X5Max vs Others
In the Box
Installation Guide
Both share the same Thunderbolt™ 5 (80 Gbps) core — but differ in focus.
- X5Pro: Single-chip (JHL9480 B2) for pure PCIe 5.0 speed and thermal efficiency.
- X5Max: Dual-chip (JHL9480 B2 + ASM2364) adds full USB 3.2 Gen 2×2 (20 Gbps) backward support and wider host compatibility.
Others still use older JHL9480 B1 or half-speed chips (JMS583/RTL9210), causing heat, throttling, and limited speed (~6000 MB/s vs TESmart’s 7000 MB/s).

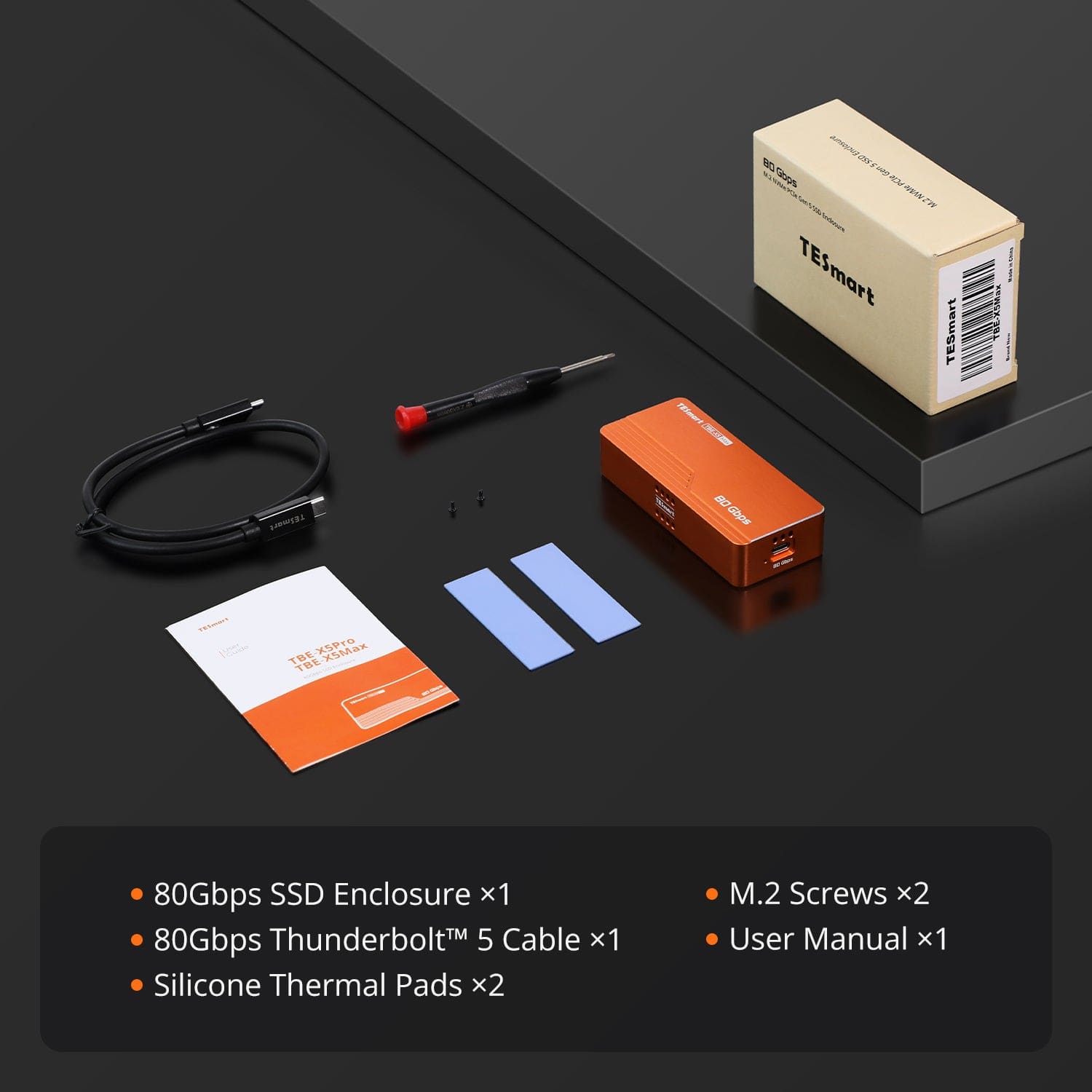

Everything you need to get started is included:
- 80 Gbps SSD Enclosure × 1
- 80 Gbps Thunderbolt™ 5 Cable × 1
- M.2 Screws × 2
- Silicone Thermal Pads × 2
- User Manual × 1
Ready for plug-and-play performance right out of the box.

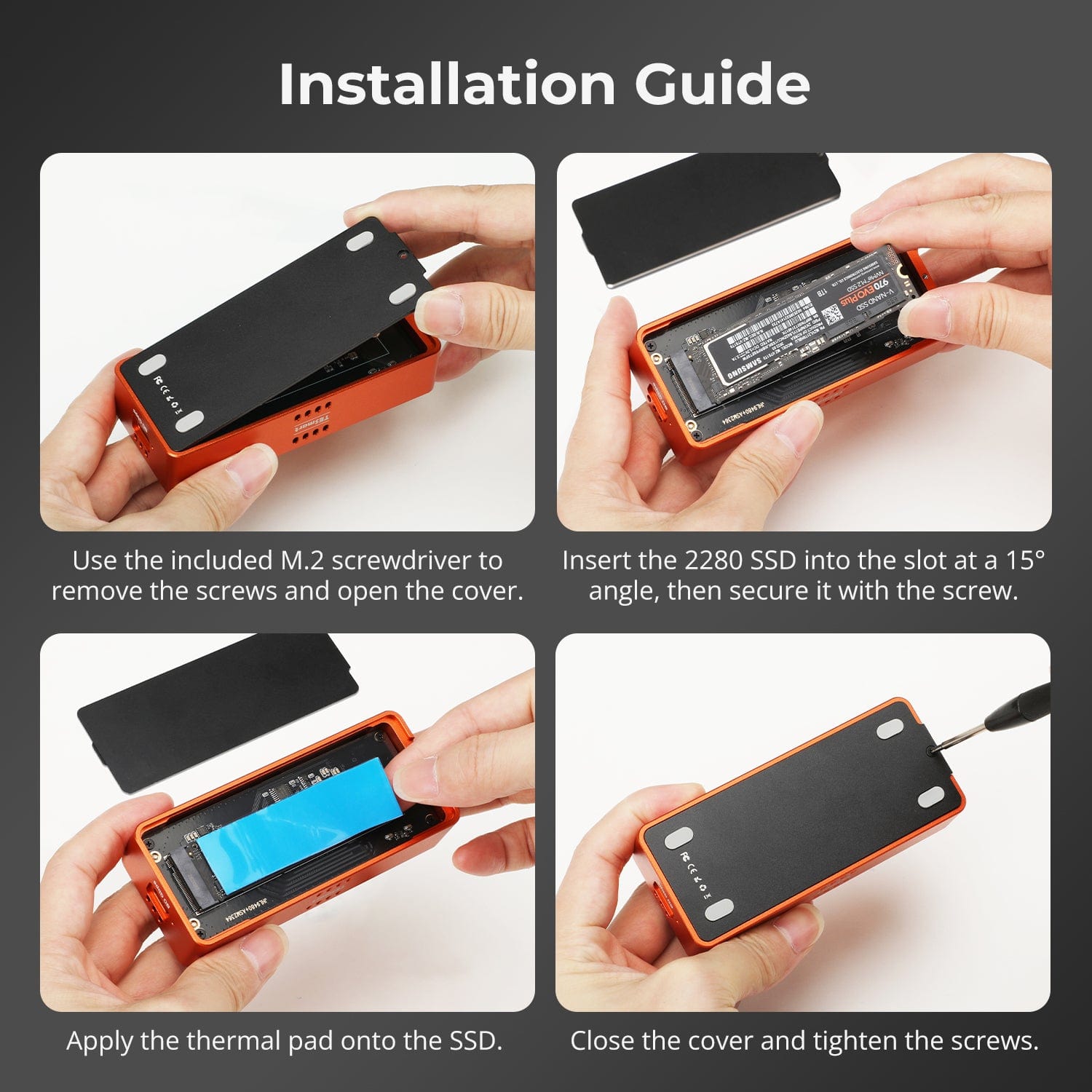

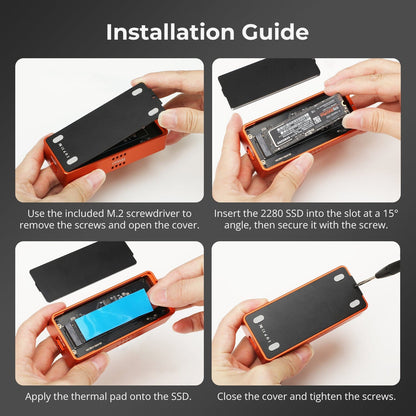

Set up your SSD in minutes with simple, tool-assisted assembly.
- Use the included M.2 screwdriver to open the cover.
- Insert the 2280 SSD at a 15° angle, then secure it with the screw.
- Apply the thermal pad on top of the SSD for optimal heat transfer.
- Close the cover and tighten the screws.
You’re ready to experience Thunderbolt™ 5 speed in seconds.
See How Others Use It
FAQs
What chip does the TBE-X5Max use?
The TBE-X5Max features a dual-chip architecture: Intel JHL9480 (B2) + ASM2364.
- JHL9480 (B2) – Main controller supporting Thunderbolt 5 / 4 / 3 and USB4 v2/ USB4.
Maximum bandwidth: 80 Gbps bidirectional (asymmetric mode: 120 Gbps downstream + 40 Gbps upstream).
- ASM2364 – Supports USB 3.2 Gen 2x2 (20 Gbps) and is backward compatible.
Does it support PCIe 5.0 SSDs?
Yes. Both TBE-X5Max and TBE-X5Pro can detect and operate PCIe 5.0 NVMe SSDs
stably.
Note: Thunderbolt 5 PCIe specification only supports PCIe 4.0 ×4, so PCIe 5.0 SSDs
will operate at PCIe 4.0 ×4 maximum bandwidth
What are the actual transfer speeds?
Lab tests with a Thunderbolt 5 host and Samsung 9100 PRO 4TB SSD show:
- Read speed: up to 7000+ MB/s
- Write speed: up to 6500+ MB/s
Note: Actual speeds depend on host interface, cable quality, SSD performance, and system environment.
How is the thermal performance?
Both models feature a full-aluminum CNC unibody enclosure with:
- Intelligent temperature-controlled fan (auto on/off)
- High thermal conductivity silicone pads
- Multiple ventilation holes
Ensures stable performance under prolonged high-load transfers without
throttling.
Which SSDs are supported?
- Type: M.2 NVMe SSD (PCIe protocol)
- Size: 2280 only
- Interface: M-Key or B&M Key
- Capacity: up to 8TB
- Protocol: Recommended PCIe 4.0 ×4, NVMe 1.4 or higher
Note: M.2 SATA SSDs (B-Key or B&M Key) are not supported.
Is it compatible with older interfaces?
- TBE-X5Max: USB4 and backward compatible with USB 3.2 Gen 2x2 / Gen 2x1 / Gen 1 and USB 2.0.
- TBE-X5Pro: Only supports USB4.0 and above; not compatible with older USB
3.x.
-
