Download: HSW1601A1U controlling software
【HDMI Switch 4K 60Hz Resolution】Supports resolutions up to 3840 * 2160 @ 60Hz, HDCP2.2 compliant.
【16-Port Switch Timing Switching】Supports auto-scan function to switch video automatically among computers in preset Intervals sequentially by OSD menu-driven(0-3600 seconds)
【4 Switch Modes】Supports front buttons, IR signals, RS232 serial commands or IP commands to control HDMI switches.
【Built-in Intelligent EDID Emulator】Keep displays information accurately thanks to the intelligent EDID emulators in all the ports. Use the 16x1 HDMI switch to disconnect and reconnect devices as needed without interruption (i.e. hot-swap)

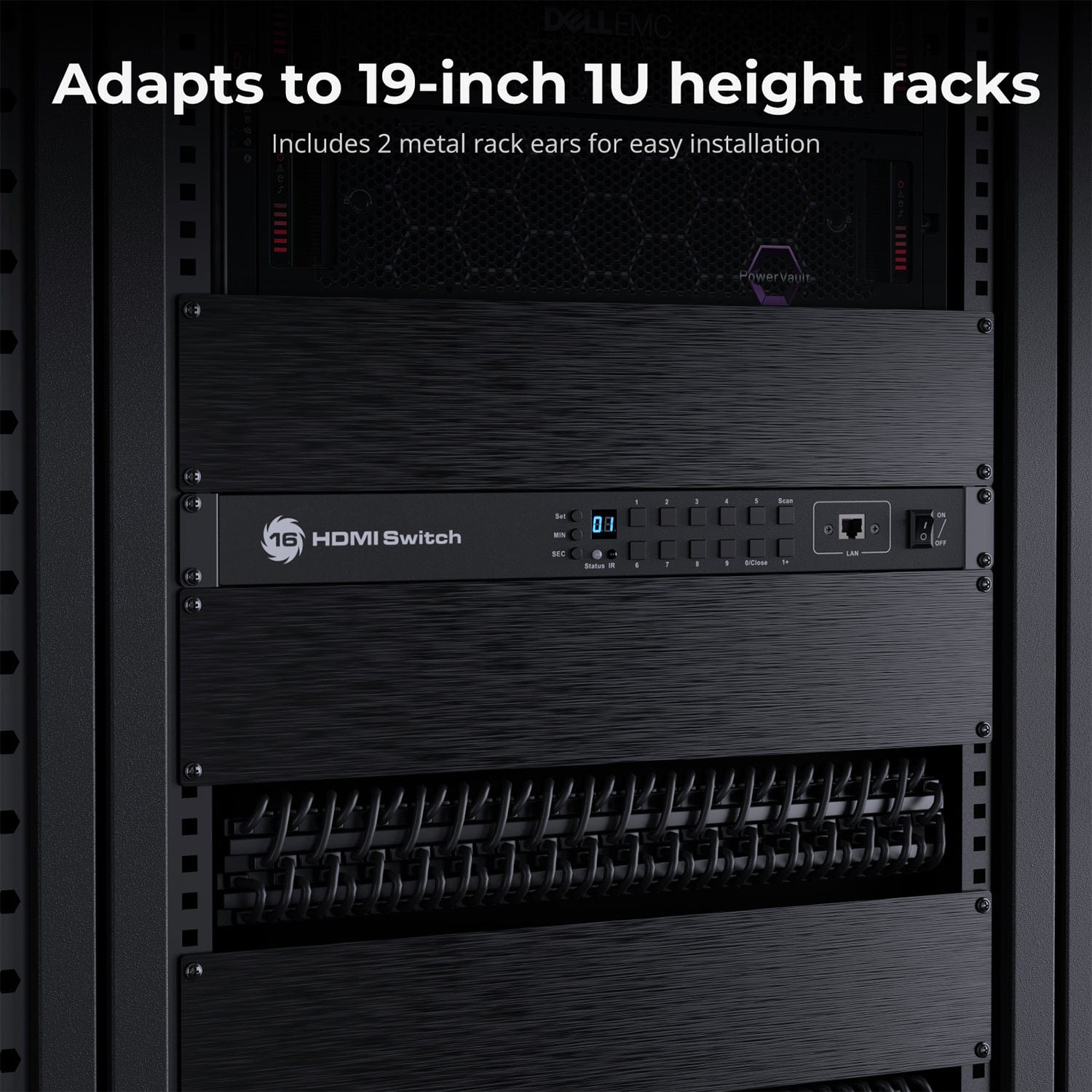

【Standard 1U 19-inch Rack Mount】It is perfect for standard 1U height and 19-inch Cabinet/Rack Design if you maybe use Cabinet/Rack. With 2 Pcs Rack Ears perfect use for Standard 1U 19-inch Cabinet/Rack.
TESmart 16x1 HDMI Switch 4K@60hz 4:4:4 with RS232 & LAN Ports

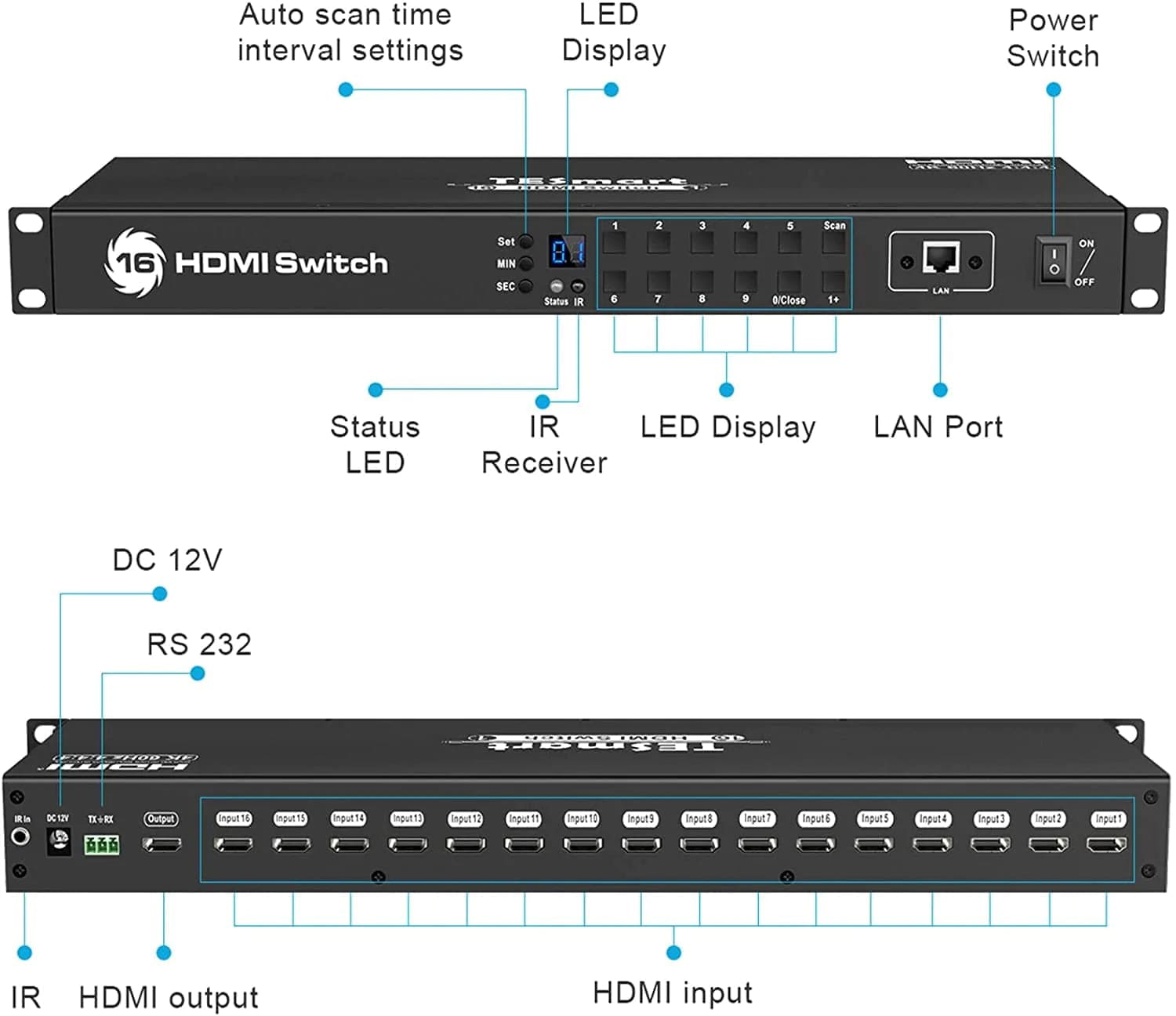

The 16-port HDMI switch HSW1601A1U enables up to 16 Ultra HD sources to be routed to an Ultra HD display. Supports resolutions up to 4K@60Hz. Supports multiple control methods, front buttons, IR signals, RS232 serial commands or IP commands. With EDID emulators in each input port, you can ensure that PCs always have the correct display information and prevent display settings from being changed when the input ports are switched.
- With EDID emulators in each input port, you always keep input devices with correct display information.
- Support hot plug, connect or disconnect devices with the HDMI switch at any time and without switching off devices.
- Support of automatic switching for monitoring computers in a certain time interval.
- Supports front buttons, IR signals, RS232 serial commands or IP commands to control HDMI switches.
- Supports resolutions up to 3840 * 2160 @ 60Hz.
- Automatic input detection and switching.
- Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.
- HDCP2.2 compliant.
